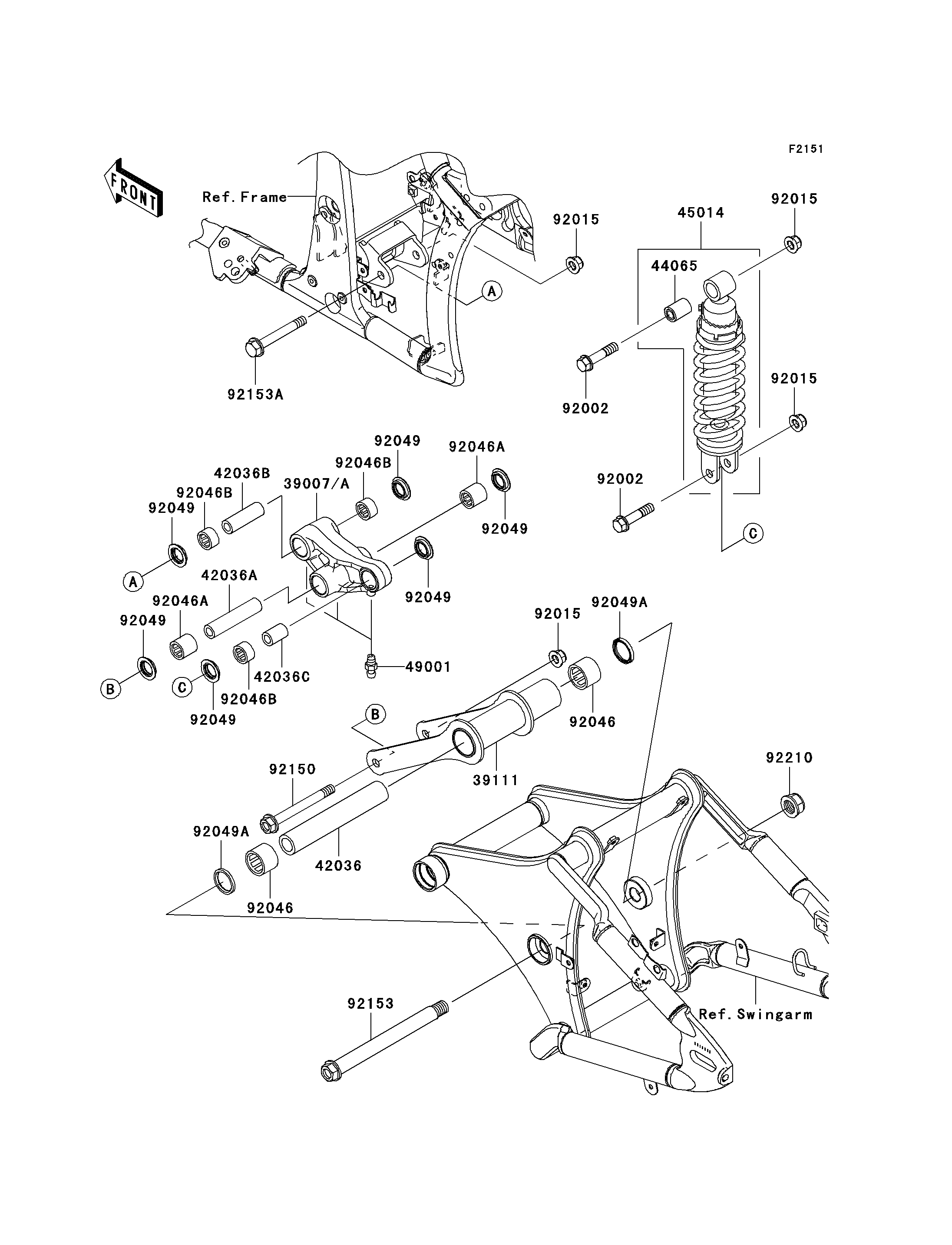

2007 Vulcan 900 Custom - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
42036
42036A
42036B
42036C
44065
45014
49001
92002
92002
92015
92015
92015
92015
92046
92046
92046A
92046A
92046B
92046B
92046B
92049
92049
92049
92049
92049
92049
92049A
92049A
92150
92153
92153A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-0062 1
ROD-TIE,SUSPENSION 39111 39111-0026 1
SLEEVE,20.1X30X171 42036 42036-0032 1
SLEEVE,12.1X20X92 42036A 42036-0040 1
SLEEVE,ARM,FR 42036B 42036-1078 1
SLEEVE,12.1X20X30 42036C 42036-1234 1
BUSHING,SHOCKABSORBER 44065 44065-1017 1
SHOCKABSORBER 45014 45014-0175 1
NIPPLE-GREASE 49001 49001-0001 3
BOLT,12X55 92002 92002-1130 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 4
BEARING-NEEDLE,30BM3726 92046 92046-0019 2
BEARING-NEEDLE,BM202726 92046A 92046-1110 2
BEARING-NEEDLE,BM202715 92046B 92046-1112 3
SEAL-OIL,ARM 92049 92049-1109 6
SEAL-OIL,BJN 30374 92049A 92049-1205 2
BOLT,FLANGED,12X117 92150 92150-1895 1
BOLT,FLANGED,18X214 92153 92153-1392 1
BOLT,FLANGED,12X90 92153A 92153-1403 1
NUT,LOCK,18MM 92210 92210-0267 1
