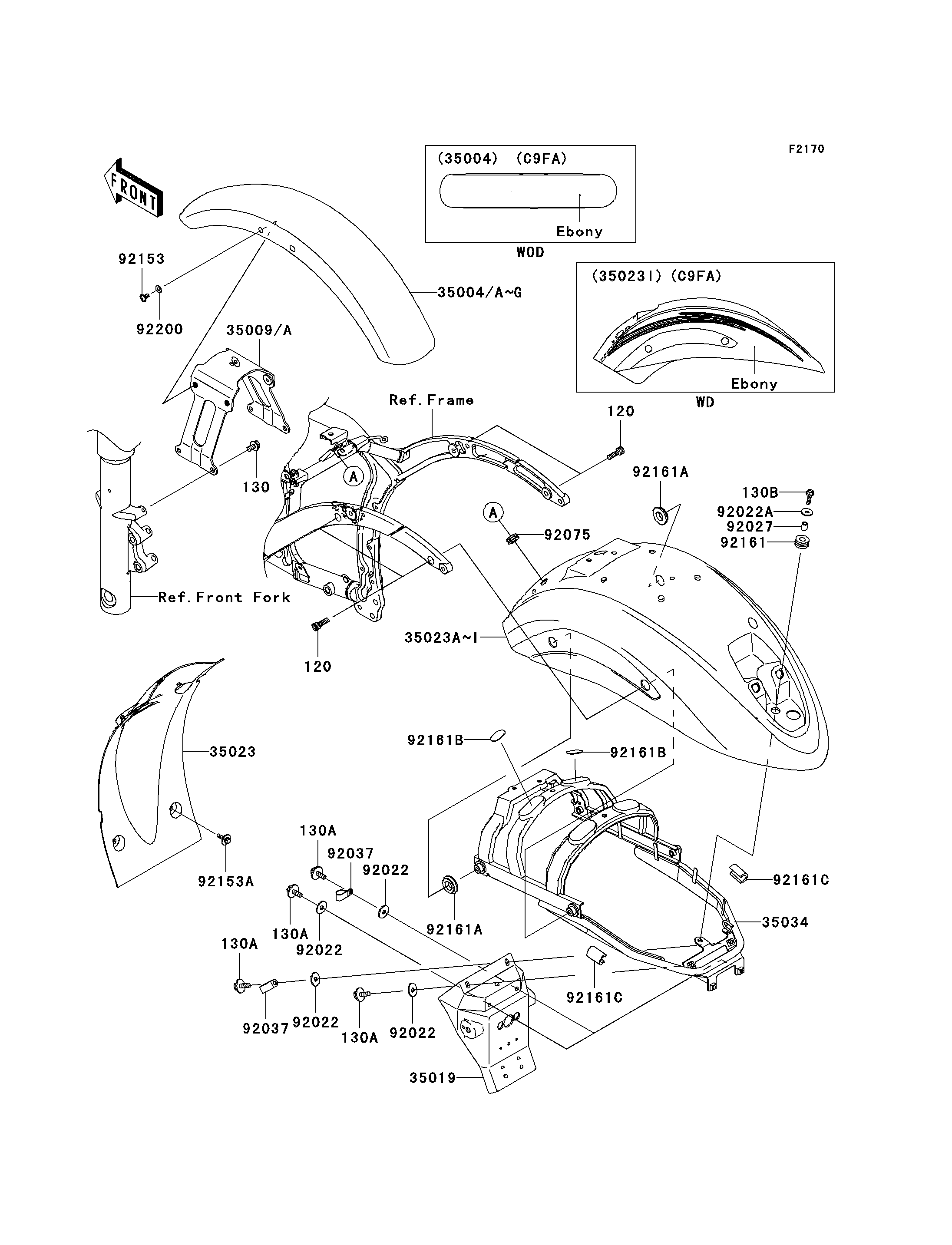

2007 Vulcan 900 Custom - Fenders

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130A
130A
130A
130A
130B
35004
35004F
35009
35019
35023
35023A
35023G
35034
92022
92022
92022
92022
92022A
92027
92037
92037
92075
92153
92153A
92161
92161A
92161A
92161B
92161B
92161C
92161C
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X25 120 120CA0825 4
BOLT-FLANGED,8X14 130 130BA0814 4
BOLT-FLANGED,6X16 130A 130BB0616 4
BOLT-FLANGED,6X22 130B 130BB0622 1
FENDER-FRONT,EBONY 35004 35004-0082-H8 1
FENDER-FRONT,C.P.BLUE 35004F 35004-0082-723 1
BRACE,FRONT FENDER 35009 35009-0024 1
FLAP 35019 35019-0014 1
FENDER-REAR,INNER 35023 35023-0073 1
FENDER-REAR,EBONY 35023A 35023-0106-H8 1
FENDER-REAR,C.P.BLUE 35023G 35023-0106-723 1
REINFORCE,REAR FENDER 35034 35034-0086 1
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
WASHER,6.5X20X1.6 92022A 92022-1557 1
COLLAR,6.8X10X12 92027 92027-162 1
CLAMP 92037 92037-1608 2
DAMPER 92075 92075-1067 1
BOLT,SOCKET,6X10 92153 92153-1527 4
BOLT,6X20 92153A 92153-1599 4
DAMPER 92161 92161-0163 1
DAMPER 92161A 92161-0375 2
DAMPER 92161B 92161-0406 2
DAMPER 92161C 92161-0459 2
WASHER,6.5X14X1 92200 92200-1388 4
FENDER-FRONT,C.F.RED 35004G 35004-1329-816 1 CAUS
FENDER-REAR,C.F.RED 35023H 35023-0106-816 1 CAUS
