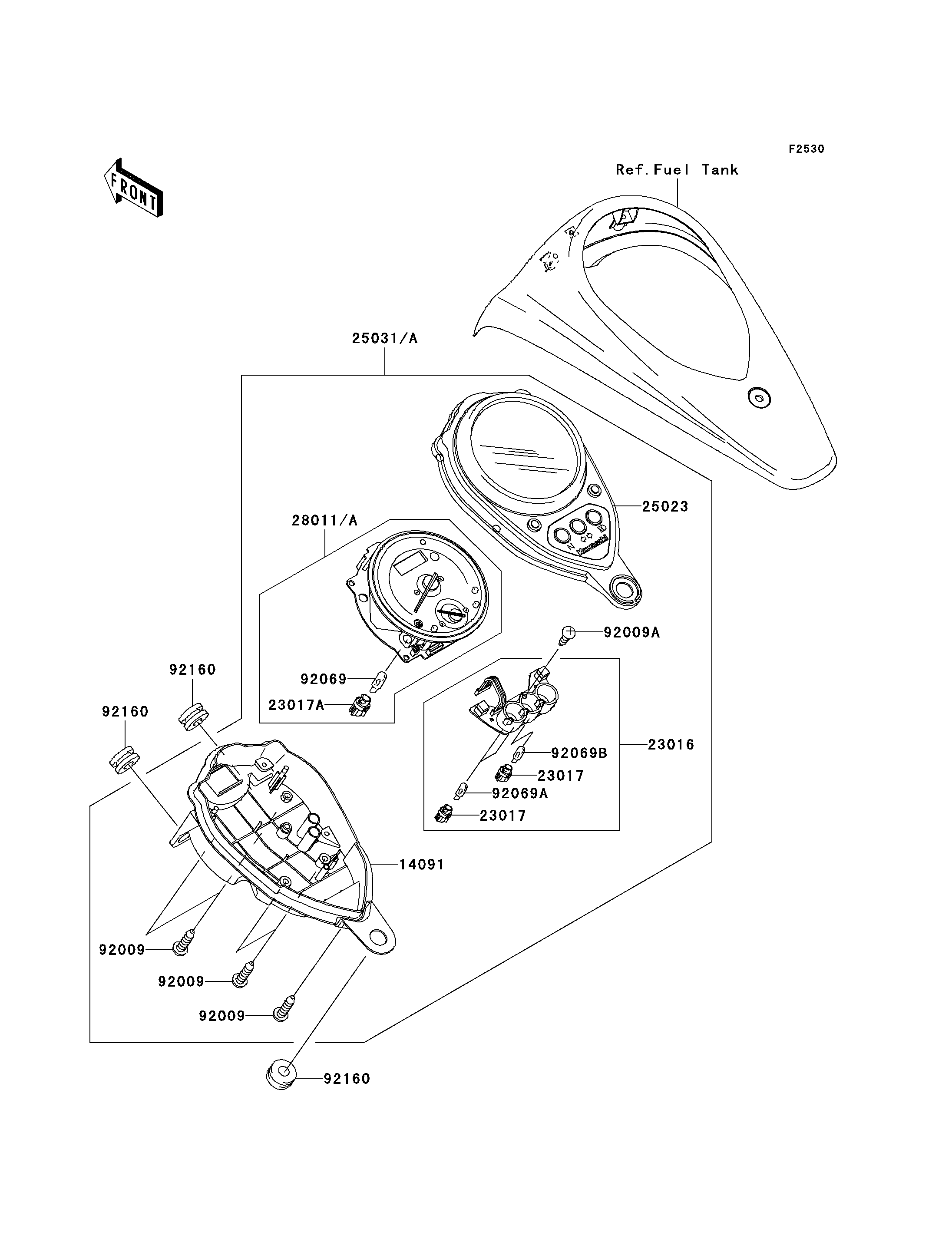

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER,LWR 14091 14091-1215 1
LAMP-ASSY 23016 23016-1186 1
SOCKET,WEDGE BASE,T-5 23017 23017-1063 3
SOCKET 23017A 23017-1064 1
COVER-METER CASE,UPP 25023 25023-0017 1
SCREW,TAPPING,4X16 92009 92009-1163 5
SCREW,TAPPING,4X14 92009A 92009-1503 1
BULB,12V 3W,T6.5 92069 92069-1068 1
BULB,12V 2W,T5 92069A 92069-1105 2
BULB,12V 1.4W,T5 92069B 92069-1117 1
DAMPER 92160 92160-1162 3
METER-ASSY,MPH 25031 25031-0103 1 CAUS
METER-ASSY,KPH 25031A 25031-0104 1 CN
METER,SPEED&FUEL,MPH 28011 28011-0048 1 CAUS
METER,SPEED&FUEL,KPH 28011A 28011-0049 1 CN
