130
130A
130A
220
54010
54011
54012
54012A
92171
92171A
92171B
92171C

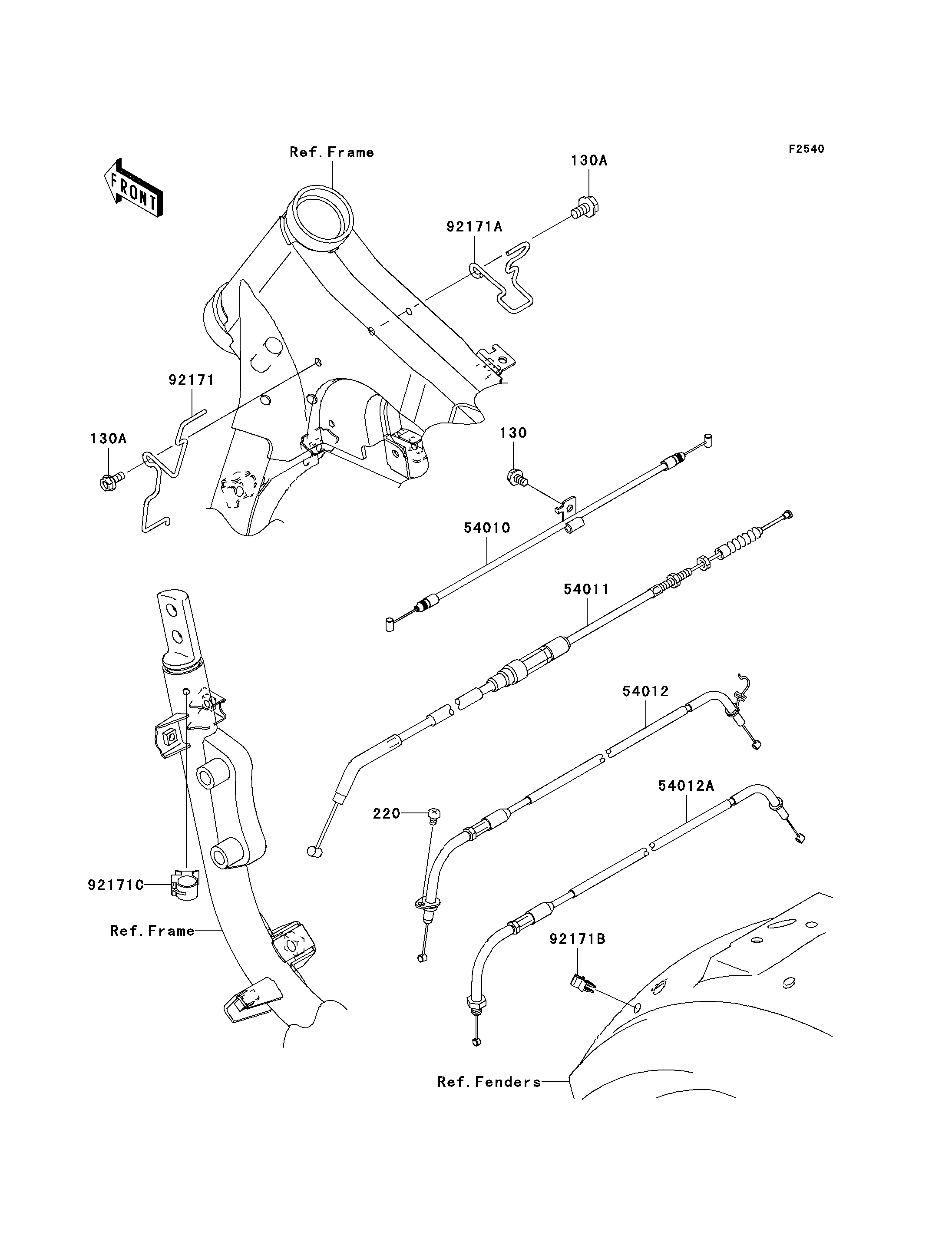

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 1
BOLT-FLANGED,6X14 130A 130BB0614 2
SCREW-PAN-CROSS,5X8 220 220AB0508 1
CABLE,SEAT LOCK 54010 54010-0065 1
CABLE-CLUTCH 54011 54011-0069 1
CABLE-THROTTLE,OPENING 54012 54012-0180 1
CABLE-THROTTLE,CLOSING 54012A 54012-0181 1
CLAMP,FR,LH 92171 92171-0597 1
CLAMP,FR,RH 92171A 92171-0605 1
CLAMP 92171B 92171-0834 1
CLAMP,DIA=15 92171C 92171-1424 1
