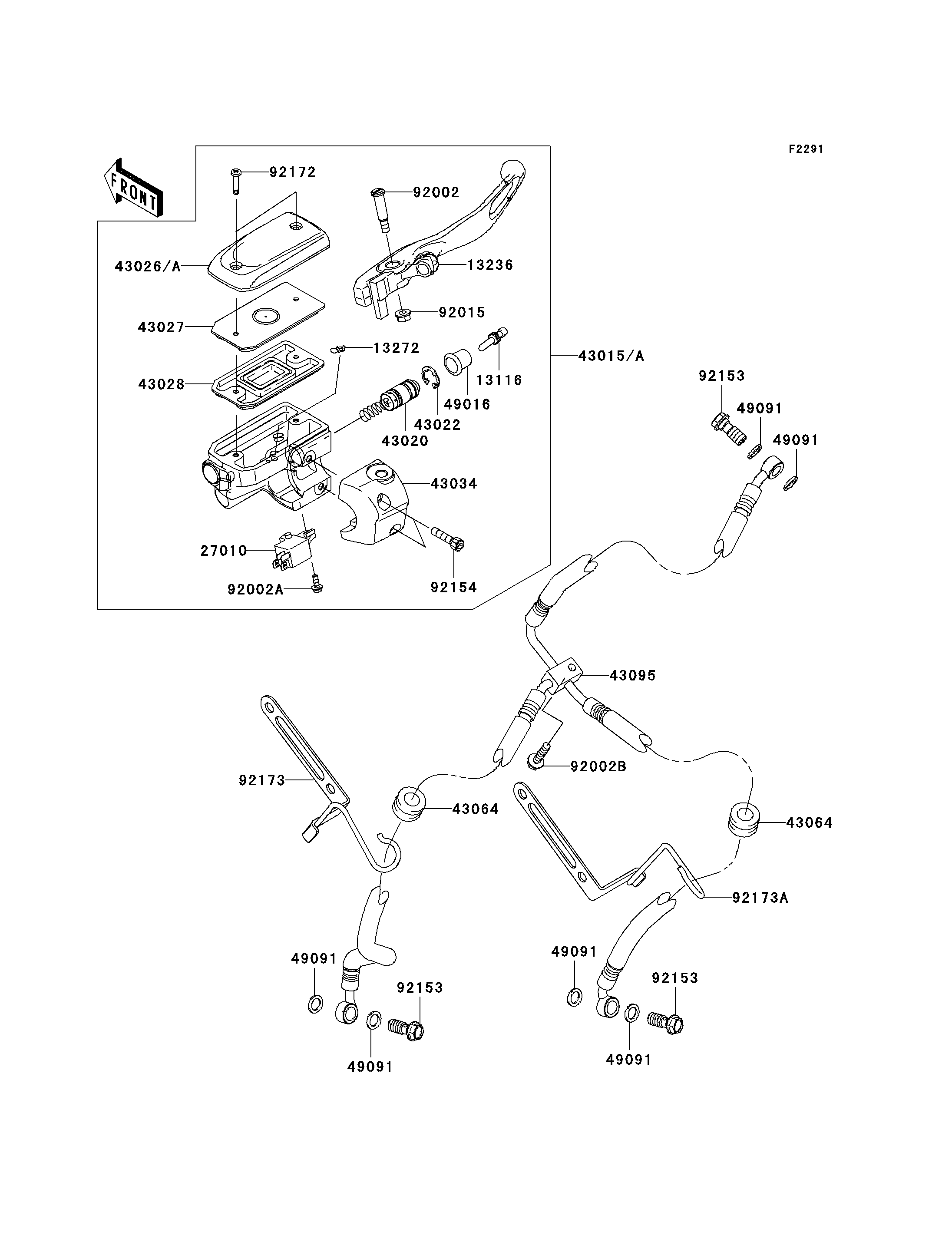

2012 VULCAN® 1700 NOMAD™ - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13236
13272
27010
43015A
43020
43022
43026A
43027
43028
43034
43064
43064
43095
49016
49091
49091
49091
49091
49091
49091
92002
92002A
92002B
92015
92153
92153
92153
92154
92172
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH 13116 13116-0039 1
LEVER-COMP,FRONT BRAKE 13236 13236-0166 1
PLATE 13272 13272-0573 1
SWITCH,CRUISE CONTROL CANCEL 27010 27010-1232 1
CYLINDER-ASSY-MASTER,FR 43015A 43015-0566 1
PISTON-COMP-BRAKE 43020 43020-0014 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026A 43026-0053 1
PLATE-DIAPHRAGM 43027 43027-0004 1
DIAPHRAGM 43028 43028-0010 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0041 1
GROMMET,HOSE CLAMP 43064 43064-006 2
HOSE-BRAKE,FR 43095 43095-0458 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,6X26.6 92002B 92002-1912 1
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT,OIL,L=23 92153 92153-0627 3
BOLT,SOCKET 92154 92154-0167 2
SCREW,4MM 92172 92172-0385 2
CLAMP,FRONT FENDER,LH 92173 92173-0073 1
CLAMP,FRONT FENDER,RH 92173A 92173-0074 1
