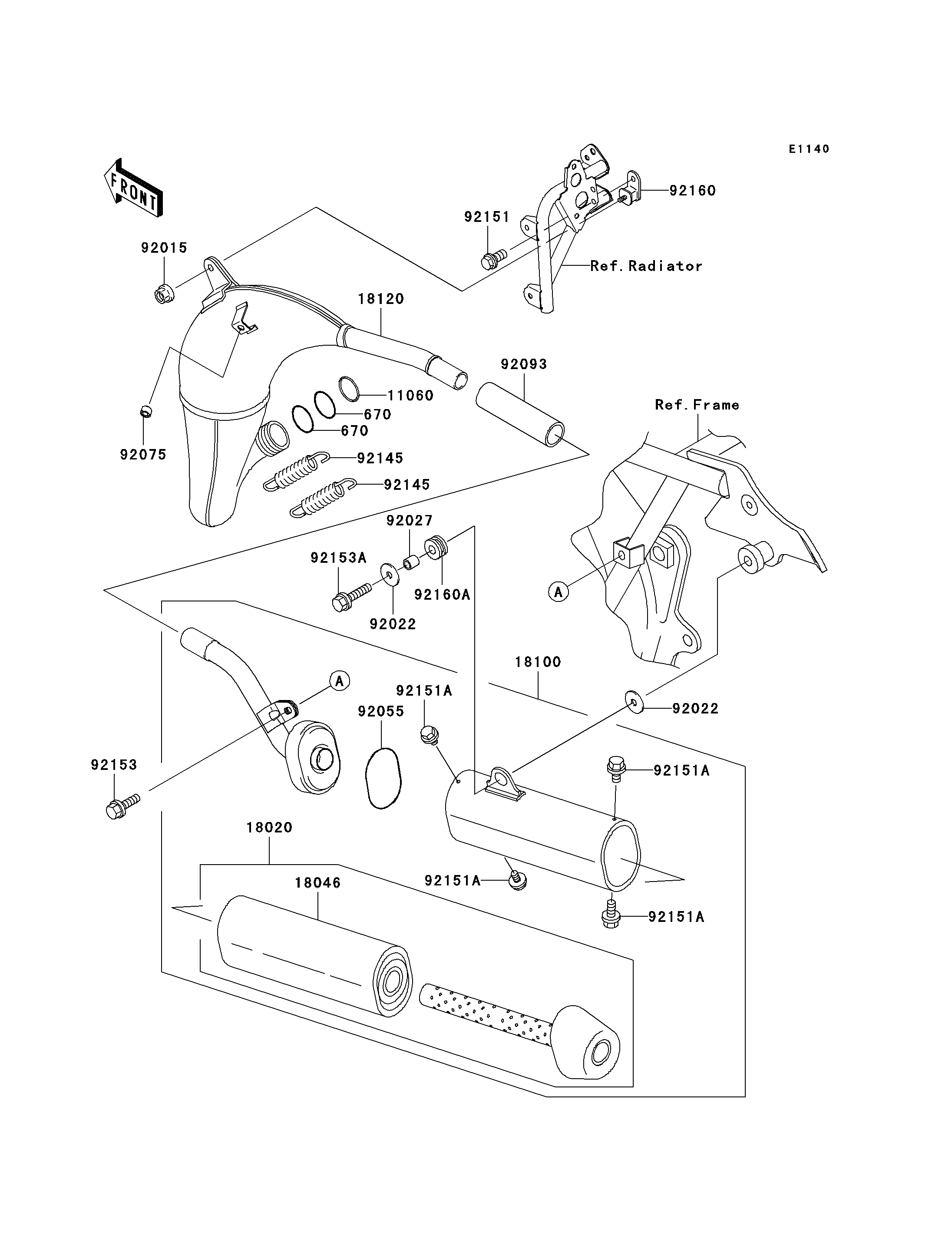

2006 KX100 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
670
670
11060
18020
18046
18100
18120
92015
92022
92022
92027
92055
92075
92093
92145
92145
92151
92151A
92151A
92151A
92151A
92153
92153A
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670E3034 2
GASKET,EXHAUST HOLDER 11060 11060-1842 1
BAFFLE 18020 18020-1272 1
WOOL 18046 18046-1559 1
BODY-ASSY-MUFFLER 18100 18100-0016 1
CHAMBER-EXHAUST 18120 18120-1127 1
NUT,FLANGED,6MM 92015 92015-1078 1
WASHER,6.5X22X1.6 92022 92022-237 2
COLLAR,6.8X10X10.5 92027 92027-120 1
RING-O,BAFFLE PIPE 92055 92055-1461 1
DAMPER 92075 92075-1598 1
SEAL,MUFFLER JOINT 92093 92093-1200 1
SPRING,EXHAUST CONNECTING 92145 92145-1340 2
BOLT,6X12 92151 92151-1133 1
BOLT,FLANGED,6X10 92151A 92151-1822 4
BOLT,FLANGED WP,6X14 92153 92153-1007 1
BOLT,FLANGED WP,6X25 92153A 92153-1008 1
DAMPER,MUFFLER,FR 92160 92160-1176 1
DAMPER 92160A 92160-1913 1
