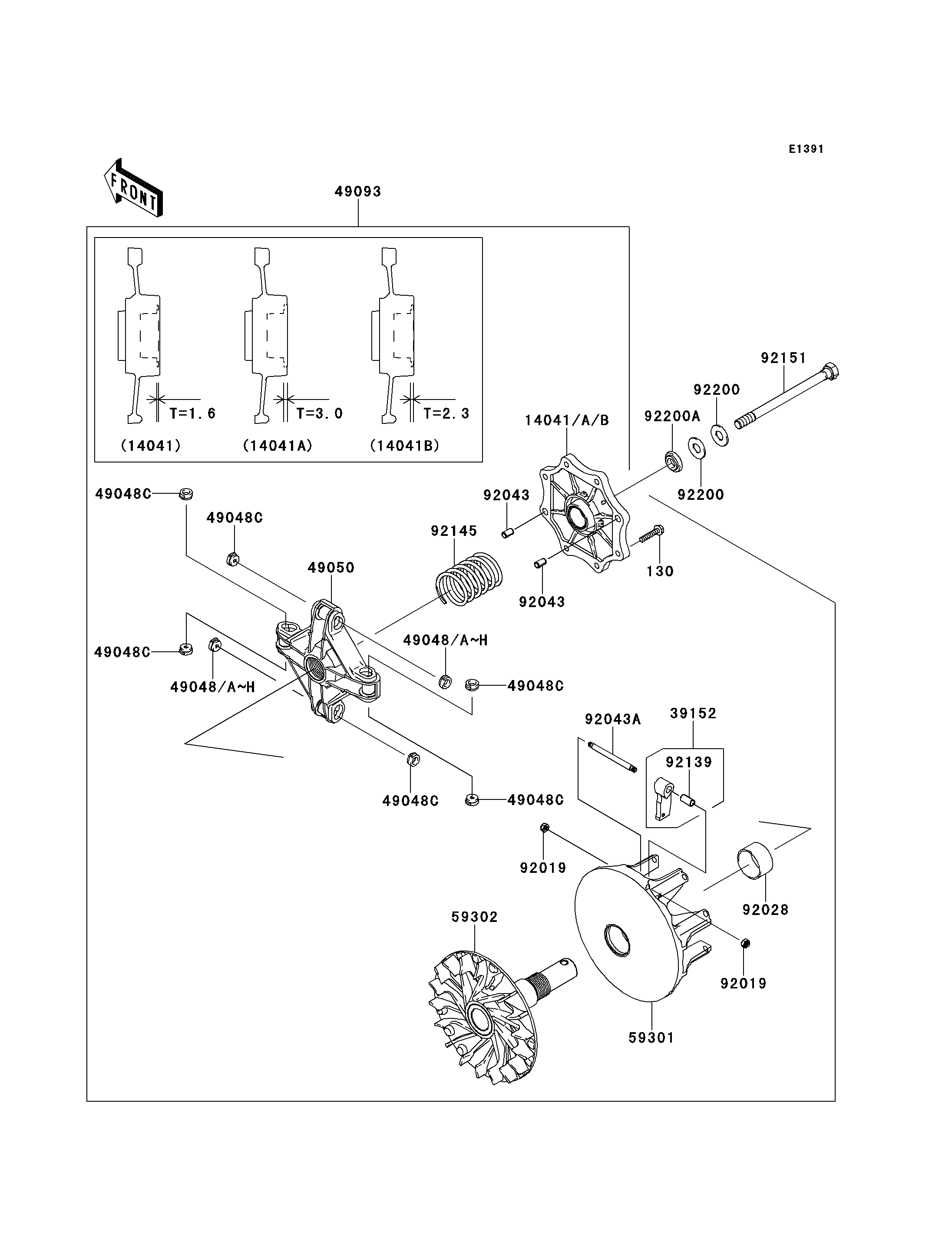

2012 BRUTE FORCE® 750 4x4i - Drive Converter(-VF750DE082073)
14041
14041
14041A
14041A
14041B
14041B
39152
39152
49048
49048
49048
49048
49048A
49048A
49048A
49048A
49048B
49048B
49048B
49048B
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048C
49048D
49048D
49048D
49048D
49048E
49048E
49048E
49048E
49048F
49048F
49048F
49048F
49048G
49048G
49048G
49048G
49048H
49048H
49048H
49048H
49050
49050
49093
49093
59301
59301
59302
59302
92019
92019
92019
92019
92028
92028
92043
92043
92043
92043
92043A
92043A
92139
92139
92145
92145
92151
92151
92200
92200
92200
92200
92200A
92200A
130
130
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER-COMP,RED | 14041 | 14041-0035 | 1 | ||
COVER-COMP,BLUE | 14041A | 14041-0036 | 1 | ||
COVER-COMP,STD | 14041B | 14041-0037 | 1 | ||
WEIGHT-RAMP | 39152 | 39152-0034 | 4 | ||
SHOE,T=7.2 | 49048 | 49048-1087 | AR | ||
SHOE,T=7.3 | 49048A | 49048-1088 | AR | ||
SHOE,T=7.4 | 49048B | 49048-1089 | AR | ||
SHOE,T=7.5 | 49048C | 49048-1090 | 8 | ||
SHOE,T=7.6 | 49048D | 49048-1091 | AR | ||
SHOE,T=7.7 | 49048E | 49048-1092 | AR | ||
SHOE,T=7.8 | 49048F | 49048-1093 | AR | ||
SHOE,T=7.9 | 49048G | 49048-1094 | AR | ||
SHOE,T=8.0 | 49048H | 49048-1095 | AR | ||
SPIDER | 49050 | 49050-0010 | 1 | ||
CONVERTER-ASSY-DRIVE | 49093 | 49093-0040 | 1 | ||
SHEAVE-MOVABLE | 59301 | 59301-0007 | 1 | ||
SHEAVE-COMP,FIXED | 59302 | 59302-0078 | 1 | ||
NUT,LOCK,6MM | 92019 | 92019-008 | 8 | ||
BUSHING | 92028 | 92028-1975 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
PIN | 92043A | 92043-1688 | 4 | ||
BUSHING | 92139 | 92139-0215 | 4 | ||
SPRING | 92145 | 92145-0794 | 1 | ||
BOLT,12X165 | 92151 | 92151-1393 | 1 | ||
WASHER,SPRING | 92200 | 92200-1504 | 2 | ||
WASHER | 92200A | 92200-1634 | 1 | ||
BOLT-FLANGED,6X30 | 130 | 130CA0630 | 8 |
