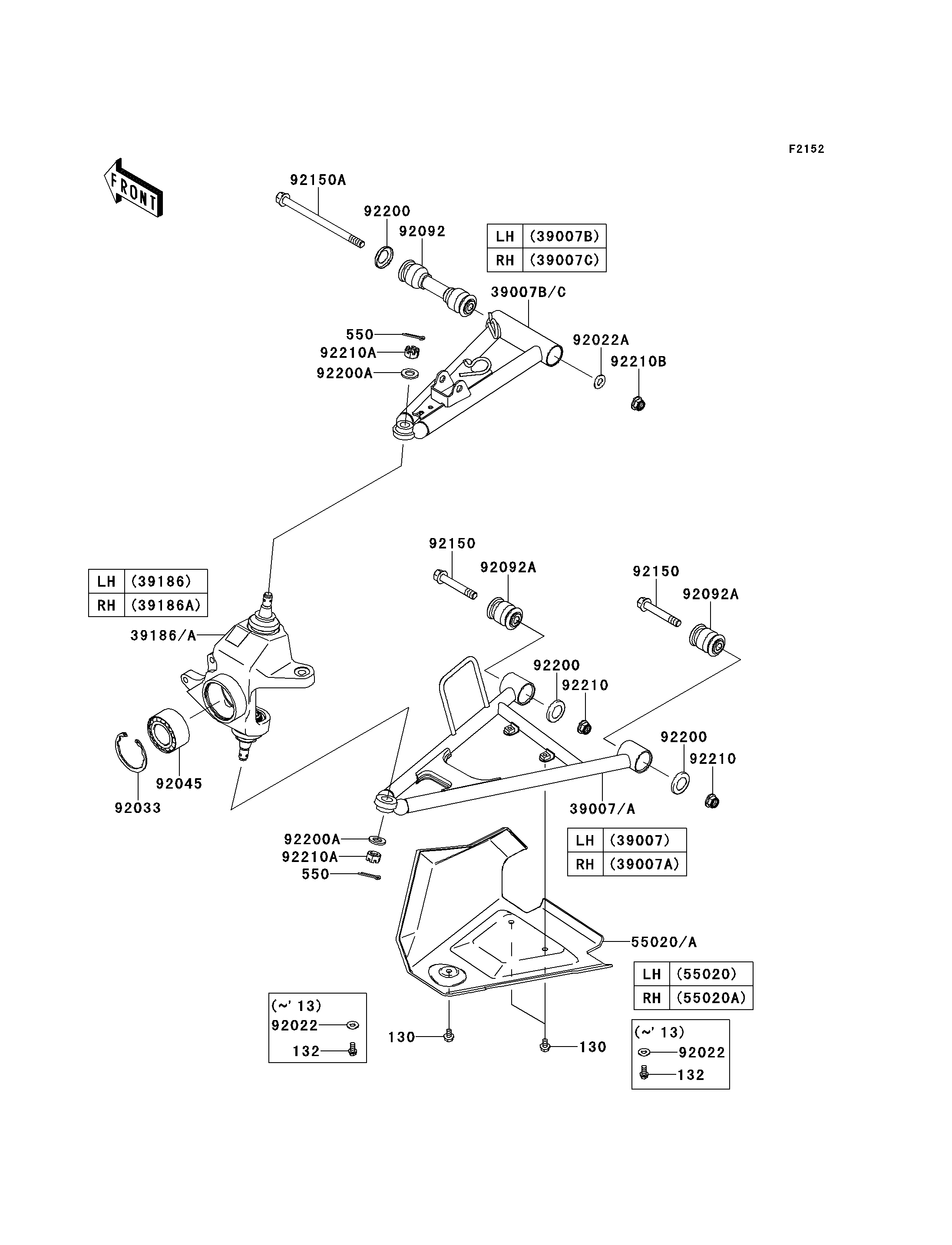

2014 BRUTE FORCE® 750 4x4i - Front Suspension
130
130
550
550
39007
39007A
39007B
39007C
39186
39186A
55020
55020A
92022A
92033
92045
92092
92092A
92092A
92150
92150
92150A
92200
92200
92200
92200A
92200A
92210
92210
92210A
92210A
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130BA0610 | 6 | ||
PIN-COTTER,3.0X25 | 550 | 550AA3025 | 4 | ||
ARM-SUSP,FR,LWR,LH | 39007 | 39007-0176 | 1 | ||
ARM-SUSP,FR,LWR,RH | 39007A | 39007-0177 | 1 | ||
ARM-SUSP,FR,UPP,LH | 39007B | 39007-0341 | 1 | ||
ARM-SUSP,FR,UPP,RH | 39007C | 39007-0342 | 1 | ||
KNUCKLE ASSY,FR,LH | 39186 | 39186-0033 | 1 | ||
KNUCKLE ASSY,FR,RH | 39186A | 39186-0034 | 1 | ||
GUARD,FRONT ARM,LH,F.BLACK | 55020 | 55020-0109-6Z | 1 | ||
GUARD,FRONT ARM,RH,F.BLACK | 55020A | 55020-0110-6Z | 1 | ||
WASHER,10.2X20X1.5 | 92022A | 92022-3742 | 2 | ||
RING-SNAP,55MM | 92033 | 92033-1274 | 2 | ||
BEARING-BALL,30BWD08ACA13 | 92045 | 92045-0095 | 2 | ||
BUSHING-RUBBER | 92092 | 92092-0025 | 2 | ||
BUSHING-RUBBER | 92092A | 92092-0026 | 4 | ||
BOLT,FLANGED,10X63 | 92150 | 92150-1384 | 4 | ||
BOLT,FLANGED,10X150 | 92150A | 92150-1686 | 2 | ||
WASHER,19X31.8X4 | 92200 | 92200-0582 | 6 | ||
WASHER,12.3X23X2.3 | 92200A | 92200-1004 | 4 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 4 | ||
NUT,CASTLE,12MM | 92210A | 92210-0395 | 4 | ||
NUT,LOCK,FLANGED,10MM | 92210B | 92210-1081 | 2 |
