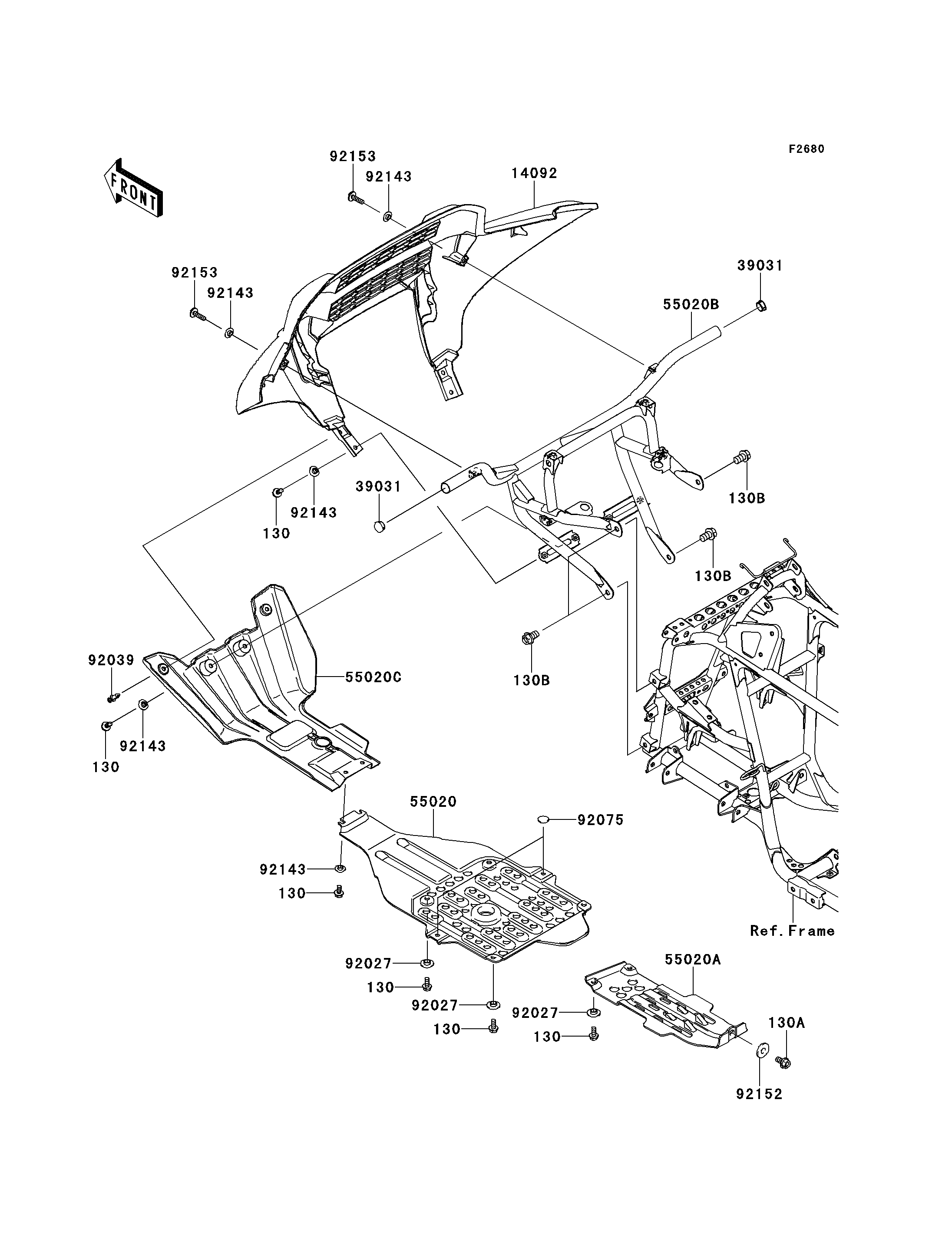

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
130
130
130
130
130A
130B
130B
130B
14092
39031
39031
55020
55020A
55020B
55020C
92027
92027
92027
92039
92075
92143
92143
92143
92143
92143
92152
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 12 | ||
| BOLT-FLANGED,8X14 | 130A | 130BA0814 | 1 | ||
| BOLT-FLANGED,10X16 | 130B | 130BB1016 | 4 | ||
| COVER,BUMPER,F.BLACK | 14092 | 14092-0188-6Z | 1 | ||
| CAP-END | 39031 | 39031-0011 | 2 | ||
| GUARD,ENGINE | 55020 | 55020-0065 | 1 | ||
| GUARD,REAR GEAR BOX | 55020A | 55020-0105 | 1 | ||
| GUARD,FR | 55020B | 55020-0392 | 1 | ||
| GUARD,FRONT SKID,F.BLACK | 55020C | 55020-0426-6Z | 1 | ||
| COLLAR,L=4.7 | 92027 | 92027-1964 | 6 | ||
| RIVET | 92039 | 92039-1229 | 2 | ||
| DAMPER,RUBBER | 92075 | 92075-261 | 2 | ||
| COLLAR | 92143 | 92143-1087 | 8 | ||
| COLLAR | 92152 | 92152-0198 | 1 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-0574 | 2 |
