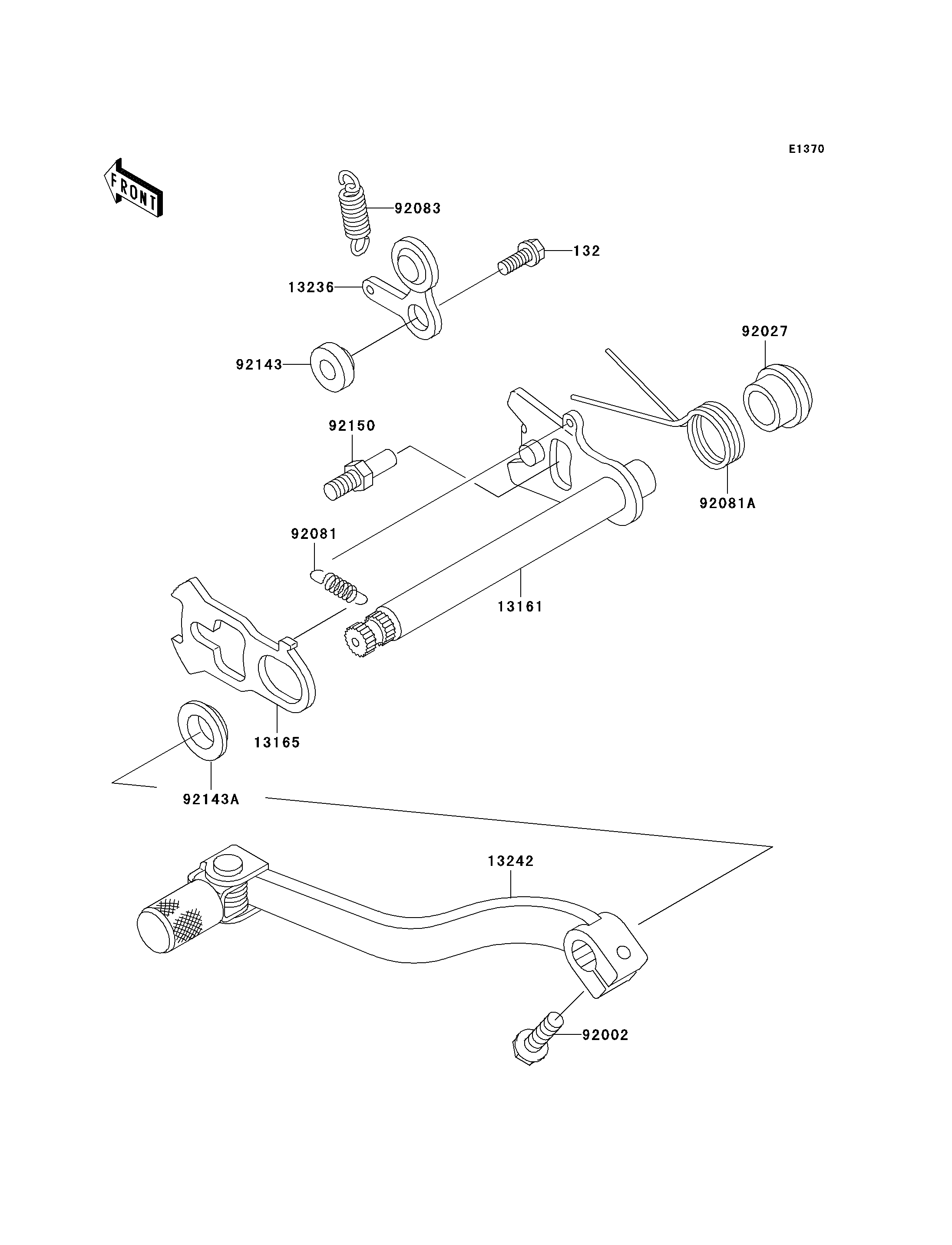

132
13161
13165
13236
13242
92002
92027
92081
92081A
92083
92143
92143A
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132BA0616 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1126 1
PAWL,CHANGE LEVER 13165 13165-1114 1
LEVER-COMP,POSITION 13236 13236-1152 1
LEVER-ASSY-CHANGE,PEDAL 13242 13242-1286 1
BOLT,6X20 92002 92002-1237 1
COLLAR 92027 92027-1940 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE SHAFT RETURN 92081A 92081-1716 1
SPRING,CHANGE DRUM LEVER 92083 92083-012 1
COLLAR 92143 92143-1055 1
COLLAR 92143A 92143-1995 1
BOLT,RETURN SPRING 92150 92150-1467 1
