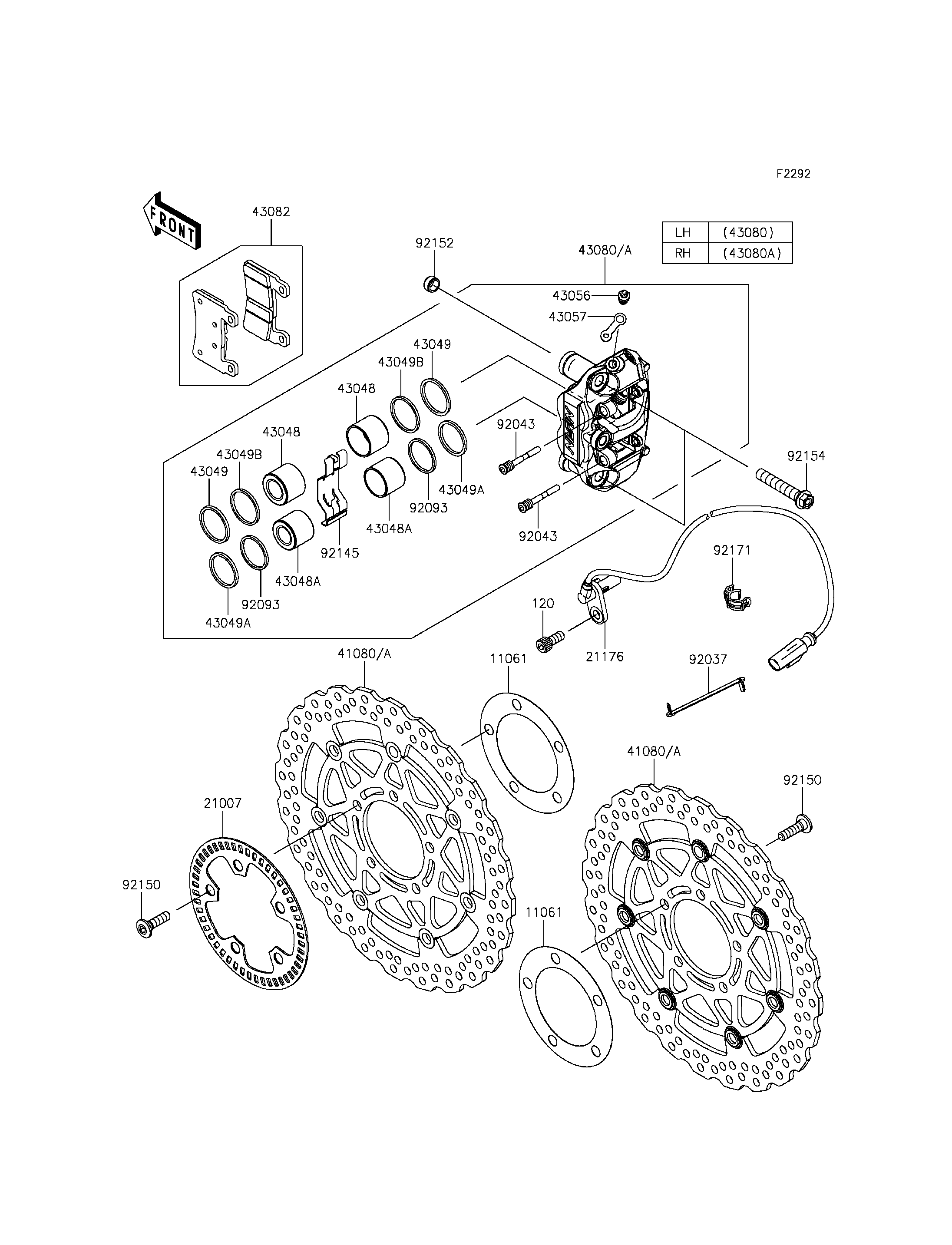

2015 Ninja® ZX™-6R 30th Anniversary - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
120
11061
11061
21007
21176
41080
41080
43048
43048
43048A
43048A
43049
43049
43049A
43049A
43049B
43049B
43056
43057
43080
43080A
43082
92037
92043
92043
92093
92093
92145
92150
92150
92152
92154
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X20 120 120CB0820 1
GASKET,DISC PLATE 11061 11061-0029 2
ROTOR,FR WHEEL 21007 21007-0166 1
SENSOR,SPEED,FR 21176 21176-0737 1
DISC,FR,HOUSING GOLD+DISC SIL 41080 41080-0590-488 2
PISTON-CALIPER 43048 43048-0019 4
PISTON-CALIPER 43048A 43048-0020 4
PACKING 43049 43049-0028 4
PACKING 43049A 43049-0029 4
PACKING 43049B 43049-1081 4
BREATHER 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-0111-DJ 1
CALIPER-SUB-ASSY,FR,RH,BLACK 43080A 43080-0113-DJ 1
PAD-ASSY-BRAKE 43082 43082-0131 2
CLAMP,SPEED,L=80.5 92037 92037-1903 1
PIN,PAD 92043 92043-0105 4
SEAL,PISTON 92093 92093-1272 4
SPRING 92145 92145-0924 2
BOLT,SOCKET,8X30 92150 92150-1771 10
COLLAR,DOWEL PIN 92152 92152-0679 4
BOLT,SOCKET,10X63 92154 92154-1067 4
CLAMP,BRAKE HOSE 92171 92171-1703 3
