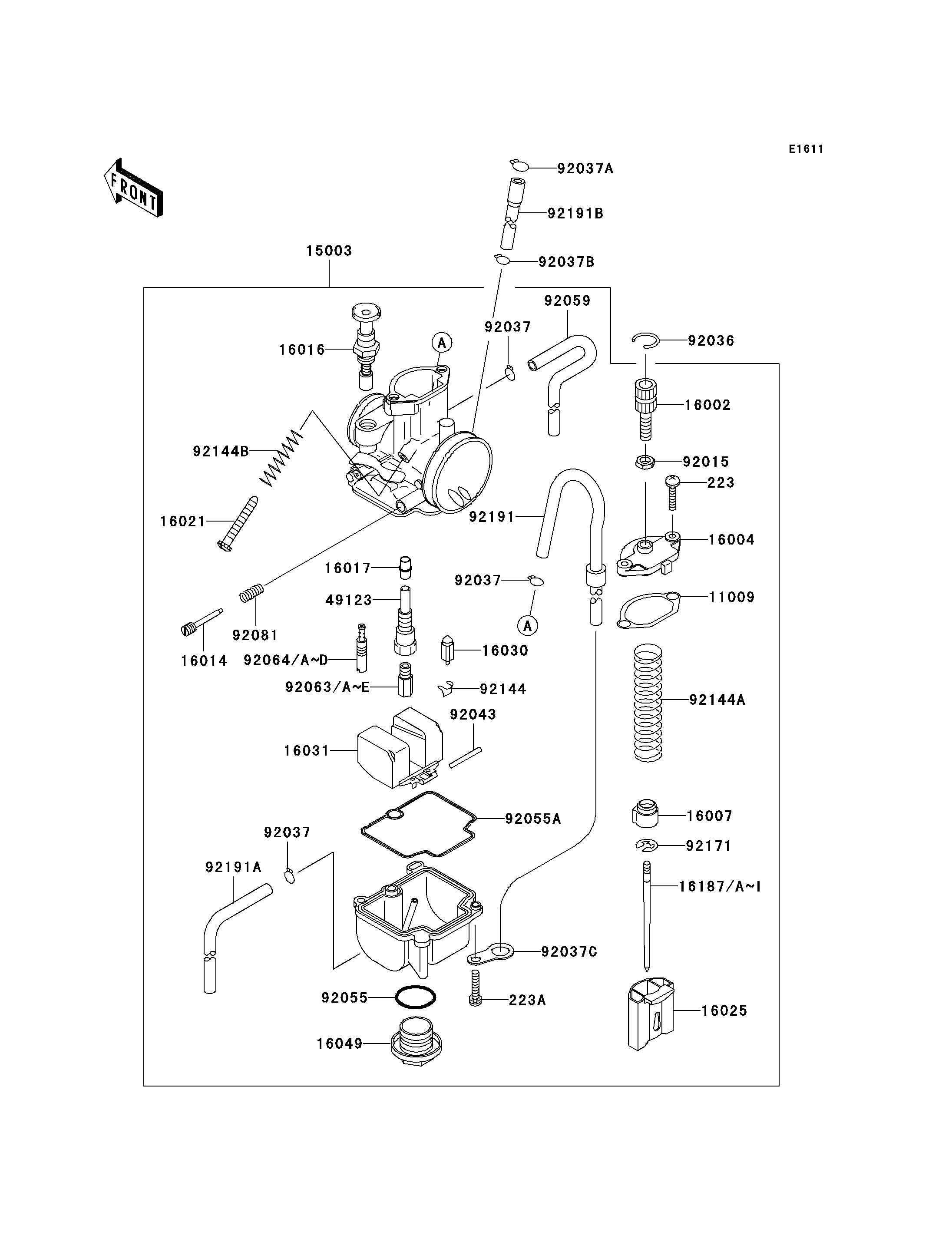

2006 KX100 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
15003
15003
16002
16002
16004
16004
16007
16007
16014
16014
16016
16016
16017
16017
16021
16021
16025
16025
16030
16030
16031
16031
16049
16049
16187
16187
16187A
16187A
16187B
16187B
16187C
16187C
16187D
16187D
16187E
16187E
16187F
16187F
16187G
16187G
16187H
16187H
16187I
16187I
49123
49123
92015
92015
92036
92036
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037C
92037C
92043
92043
92055
92055
223
223
223A
223A
92055A
92055A
92059
92059
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92064
92064
92064A
92064A
92064B
92064B
92064C
92064C
92064D
92064D
92081
92081
92144
92144
92144A
92144A
92144B
92144B
92171
92171
92191
92191
92191A
92191A
92191B
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MIXING CHAMBER 11009 11009-1759 1
CARBURETOR-ASSY 15003 15003-1643 1
ADJUSTER-CABLE 16002 16002-1056 1
CAP-CHAMBER,MIXING 16004 16004-1065 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-1155 1
SCREW-PILOT AIR 16014 16014-1058 1
PLUNGER,STARTER 16016 16016-1075 1
JET-NEEDLE 16017 16017-1431 1
SCREW-THROTTLE STOP 16021 16021-1161 1
VALVE-THROTTLE,CA3.5 16025 16025-1220 1
VALVE-FLOAT 16030 16030-1064 1
FLOAT 16031 16031-1065 1
COVER-MAIN JET 16049 16049-1051 1
NEEDLE-JET,NAPD 16187 16187-1177 AR (OPTION)
NEEDLE-JET,NAPE 16187A 16187-1178 AR (OPTION)
NEEDLE-JET,NAPF 16187B 16187-1179 1
NEEDLE-JET,NAPG 16187C 16187-1180 AR (OPTION)
NEEDLE-JET,NAPH 16187D 16187-1181 AR (OPTION)
NEEDLE-JET,NAQD 16187E 16187-1183 AR (OPTION)
NEEDLE-JET,NAQE 16187F 16187-1184 AR (OPTION)
NEEDLE-JET,NAQF 16187G 16187-1185 AR (OPTION)
NEEDLE-JET,NAQG 16187H 16187-1186 AR (OPTION)
NEEDLE-JET,NAQH 16187I 16187-1187 AR (OPTION)
HOLDER-MAIN JET 49123 49123-1054 1
NUT,CABLE ADJUST LOCK 92015 92015-1574 1
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1396 3
CLAMP,TUBE 92037A 92037-147 1
CLAMP 92037B 92037-1712 1
CLAMP,HOSE 92037C 92037-1969 1
PIN,FLOAT 92043 92043-1207 1
RING-O,MAIN JET COVER 92055 92055-1167 1
SCREW-PAN-WS-CROS,4X14 223 223AB0414 2
SCREW-PAN-WS-CROS,4X16 223A 223AB0416 2
RING-O,FLOAT CHAMBER 92055A 92055-1389 1
TUBE,4X7X360 92059 92059-1941 1
JET-MAIN,#132 92063 92063-1337 AR (OPTION)
JET-MAIN,#135 92063A 92063-1338 AR (OPTION)
JET-MAIN,#138 92063B 92063-1359 1
JET-MAIN,#140 92063C 92063-1360 AR (OPTION)
JET-MAIN,#142 92063D 92063-1361 AR (OPTION)
JET-MAIN,#148 92063E 92063-1363 AR (OPTION)
JET-PILOT,#40 92064 92064-1140 AR (OPTION)
JET-PILOT,#42 92064A 92064-1141 AR (OPTION)
JET-PILOT,#45 92064B 92064-1142 1
JET-PILOT,#48 92064C 92064-1143 AR (OPTION)
JET-PILOT,#50 92064D 92064-1144 AR (OPTION)
SPRING,ADJUST SCREW 92081 92081-1555 1
SPRING,FLOAT VALVE 92144 92144-1178 1
SPRING,THROTTLE VALVE 92144A 92144-1566 1
SPRING,THROTTLE STOP SCREW 92144B 92144-1782 1
CLAMP 92171 92171-1323 1
TUBE,4X7X560 92191 92191-1243 1
TUBE,4X7X420 92191A 92191-1591 1
TUBE 92191B 92191-1610 1
