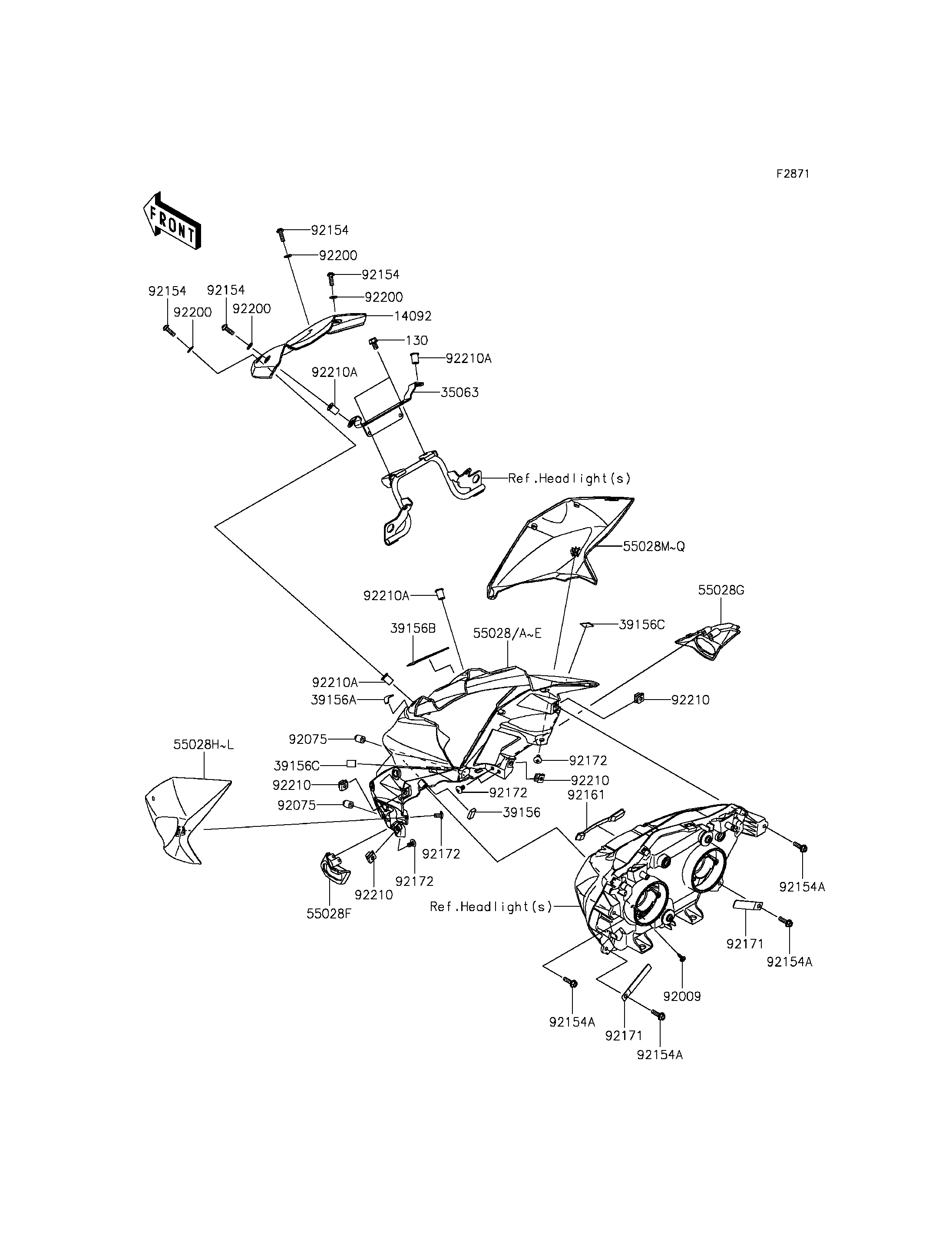

2015 ZR800 (European) - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
14092
35063
39156
39156A
39156B
39156C
39156C
55028B
55028C
55028E
55028F
55028G
55028H
55028J
55028K
55028M
55028O
55028P
92009
92075
92075
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92161
92171
92171
92172
92172
92172
92172
92200
92200
92200
92200
92210
92210
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BB0610 2
COVER,METER 14092 14092-0964 1
STAY 35063 35063-0867 1
PAD 39156 39156-0284 1
PAD 39156A 39156-0964 1
PAD 39156B 39156-0965 1
PAD 39156C 39156-0966 2
COWLING,UPP,CNT,M.F.R.GRAY 55028B 55028-0428-35B 1
COWLING,UPP,CNT,C.F.B.GREEN 55028C 55028-0428-35K 1
COWLING,UPP,CNT,M.S.BLACK 55028E 55028-0428-660 1
COWLING,UPP,CNT,LH 55028F 55028-0429 1
COWLING,UPP,CNT,RH 55028G 55028-0430 1
COWLING,UPP,SIDE,LH,P.S.WHITE 55028H 55028-0431-25Y 1
COWLING,UPP,SIDE,LH,F.EBONY 55028J 55028-0431-45L 1
COWLING,UPP,SIDE,LH,M.S.BLACK 55028K 55028-0431-660 1
COWLING,UPP,SIDE,RH,P.S.WHITE 55028M 55028-0432-25Y 1
COWLING,UPP,SIDE,RH,F.EBONY 55028O 55028-0432-45L 1
COWLING,UPP,SIDE,RH,M.S.BLACK 55028P 55028-0432-660 1
SCREW,TAPPING,5X12,BLACK 92009 92009-1138 1
DAMPER,SIDE COVER 92075 92075-1964 2
BOLT,SOCKET,5X16 92154 92154-0026 4
BOLT,FLANGED,5X18 92154A 92154-0785 4
DAMPER,TAIL LAMP UPP 92161 92161-0625 1
CLAMP,L=60 92171 92171-0652 2
SCREW,TAPPING,5X10 92172 92172-0262 6
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 4
NUT,5MM 92210 92210-0351 4
NUT,WELL,5MM 92210A 92210-0498 4
