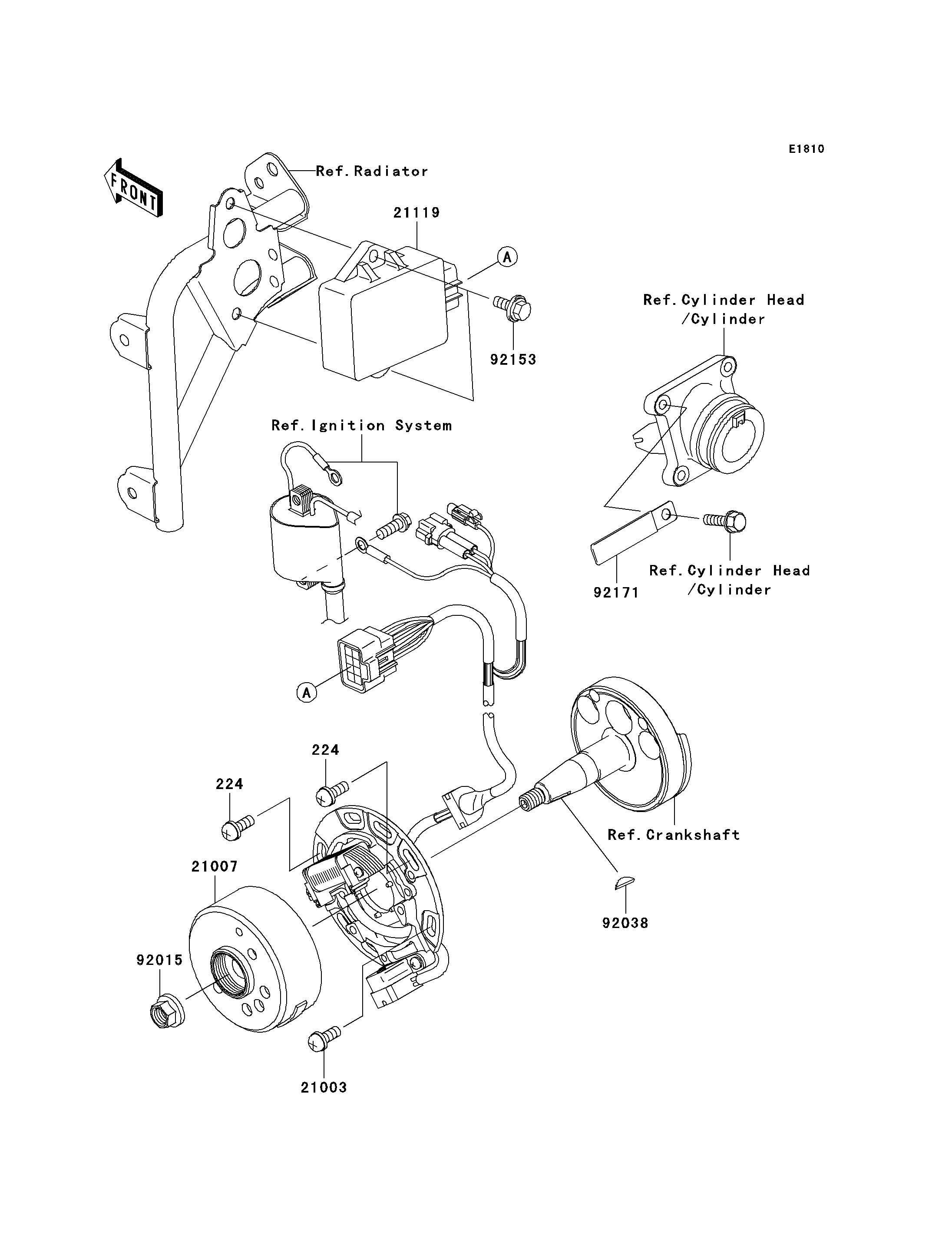

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,6X14 224 224AA0614 3
STATOR 21003 21003-0032 1
ROTOR 21007 21007-0074 1
IGNITER 21119 21119-0049 1
NUT,FLANGED,10MM 92015 92015-077 1
KEY,WOODRUFF 92038 92038-001 1
BOLT,6X16 92153 92153-0863 2
CLAMP 92171 92171-0652 1
