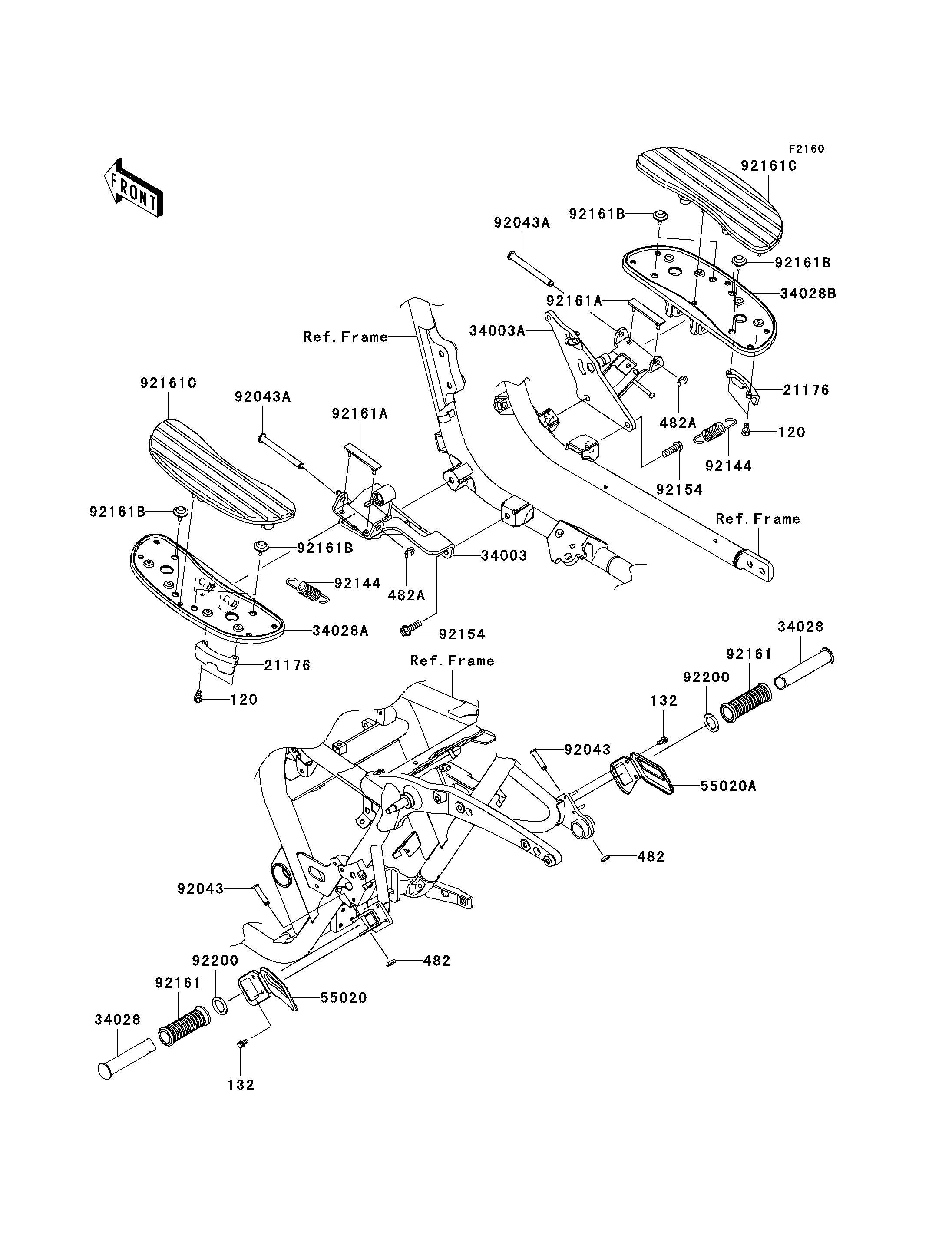

2010 Vulcan® 1700 Classic LT - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
132
482
482
482A
482A
21176
21176
34003
34003A
34028
34028
34028A
34028B
55020
55020A
92043
92043
92043A
92043A
92144
92144
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120CB0616 4
BOLT-FLANGED-SMALL,6X12 132 132BB0612 4
CIRCLIP-TYPE-E 482 482EA7000 2
CIRCLIP-TYPE-E,8MM 482A 482EA8000 2
SENSOR,BANK 21176 21176-0123 2
HOLDER-STEP,FR,LH,F.S.BLACK 34003 34003-0085-18R 1
HOLDER-STEP,FR,RH,F.S.BLACK 34003A 34003-0086-18R 1
STEP,RR 34028 34028-0017 2
STEP,FR,LH 34028A 34028-0124 1
STEP,FR,RH 34028B 34028-0125 1
GUARD,STEP,LH,F.S.BLACK 55020 55020-0485-18R 1
GUARD,STEP,RH,F.S.BLACK 55020A 55020-0486-18R 1
PIN,8X36.5 92043 92043-1339 2
PIN,10X98.5 92043A 92043-1707 2
SPRING 92144 92144-1266 2
BOLT,FLANGED,10X30 92154 92154-0284 4
DAMPER,STEP 92161 92161-0232 2
DAMPER,STEP HOLDER 92161A 92161-0746 2
DAMPER,STEP 92161B 92161-0766 8
DAMPER,FOOT BOARD 92161C 92161-0770 2
WASHER,22.5X33X2.3 92200 92200-1482 2
