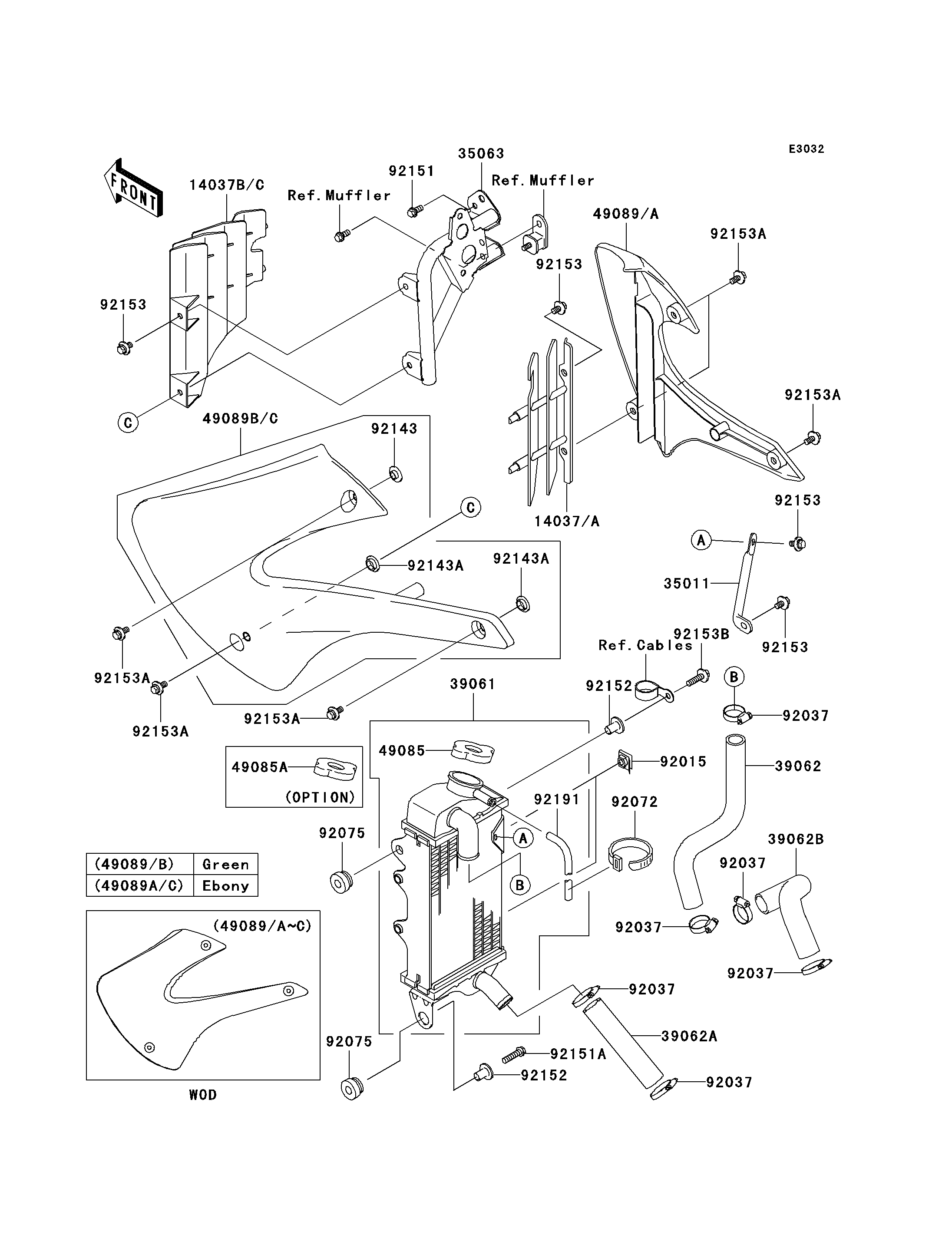

2006 KX100 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
14037
14037B
35011
35063
39061
39062
39062A
39062B
49085
49085A
49089
49089B
92015
92037
92037
92037
92037
92037
92037
92072
92075
92075
92143
92143A
92143A
92151
92151A
92152
92152
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153A
92153B
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN,RH,WHITE 14037 14037-1249-RZ 1
SCREEN,LH,WHITE 14037B 14037-1282-RZ 1
STAY 35011 35011-1845 1
STAY 35063 35063-1137 1
RADIATOR-ASSY 39061 39061-1245 1
HOSE-COOLING,HEAD-RADIATOR 39062 39062-1425 1
HOSE-COOLING,RADIATOR-PUMP 39062A 39062-1711 1
HOSE-COOLING,CYLINDER PUMP 39062B 39062-1712 1
CAP-ASSY-PRESSURE,P1.1 49085 49085-1070 1
CAP-ASSY-PRESSURE,P1.6 49085A 49085-1073 1 (OPTION)
SHROUD-ENGINE,RH,L.GREEN 49089 49089-1139-290 1
SHROUD-ENGINE,LH,L.GREEN 49089B 49089-1146-290 1
NUT 92015 92015-1487 2
CLAMP,COOLING HOSE 92037 92037-1589 6
BAND,L=186 92072 92072-056 1
DAMPER 92075 92075-1352 2
COLLAR 92143 92143-1087 1
COLLAR 92143A 92143-1196 2
BOLT,6X12 92151 92151-1133 1
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 1
COLLAR 92152 92152-0666 2
BOLT,6X12 92153 92153-0503 4
BOLT,FLANGED,6X14 92153A 92153-0936 6
BOLT,FLANGED WP,6X25 92153B 92153-1008 1
TUBE,6X9X700 92191 92191-1211 1
