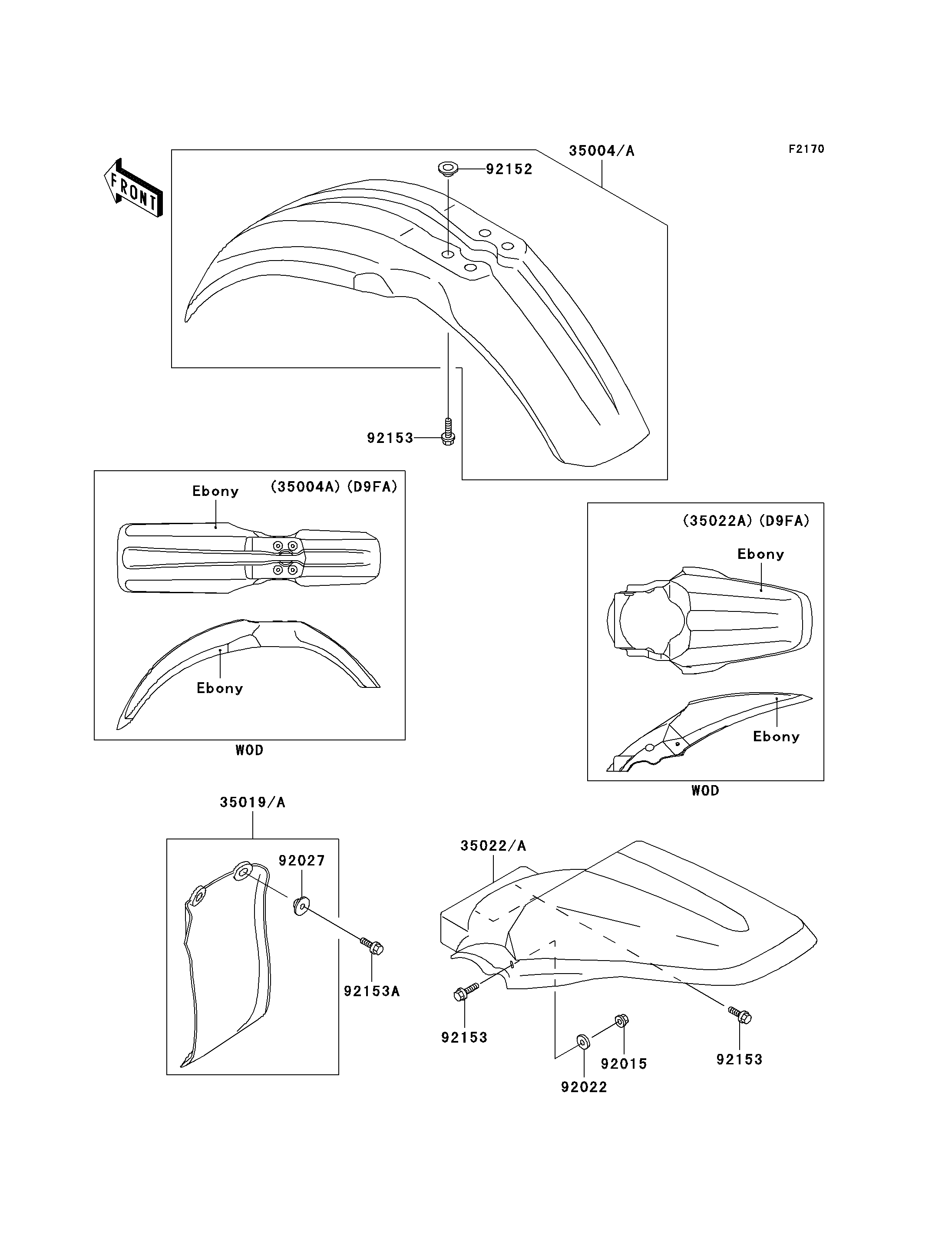

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-0028-290 1
FLAP,REAR FENDER 35019A 35019-1212 1
FENDER-COMP-REAR,L.GREEN 35022 35022-1353-290 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
WASHER,6.5X20X1.6 92022 92022-125 2
COLLAR 92027 92027-1757 2
COLLAR 92152 92152-1255 4
BOLT,6X20 92153 92153-0502 8
BOLT,6X16 92153A 92153-0863 2
