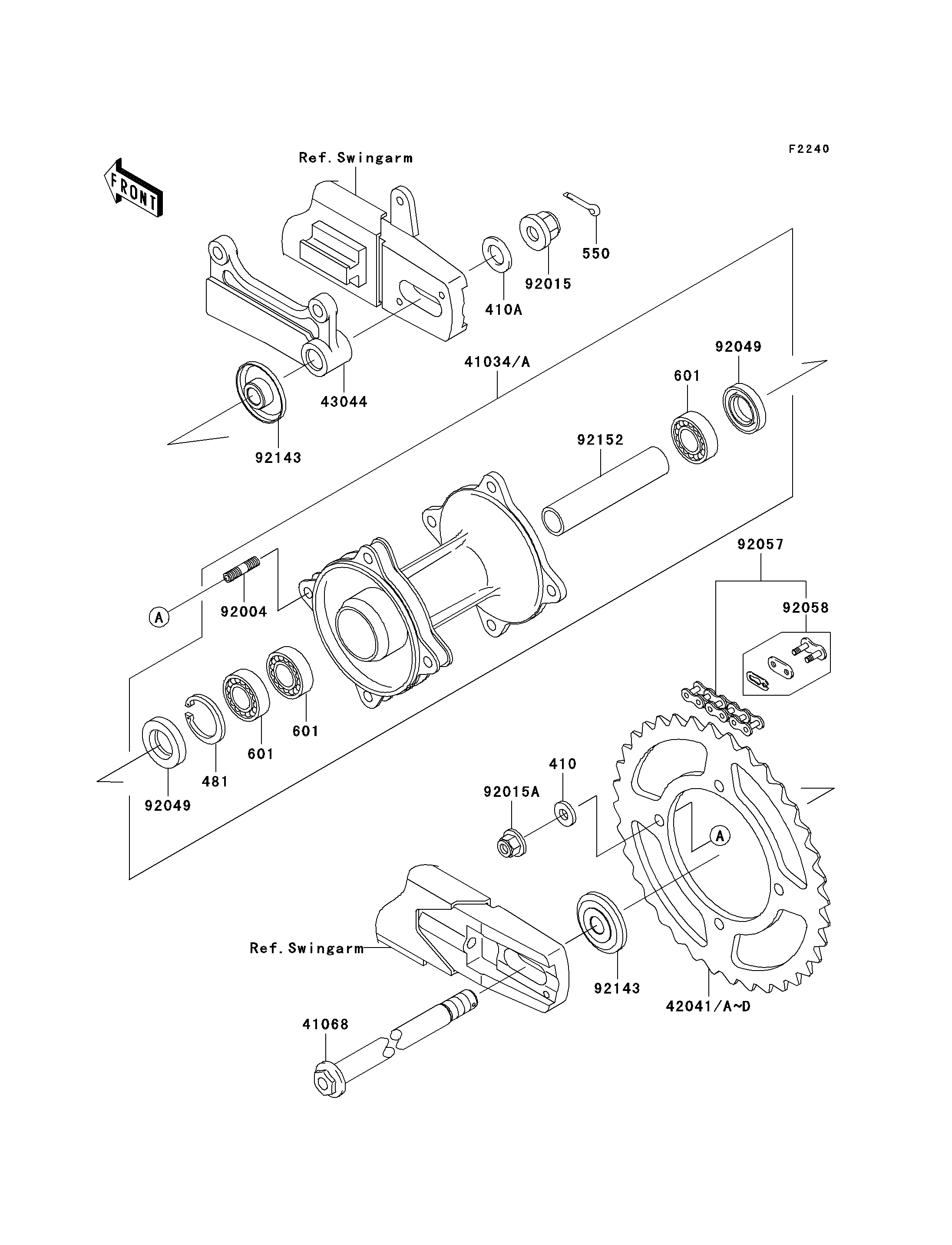

2006 KX100 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
410
410A
481
550
601
601
601
41034A
41068
42041
42041A
42041B
42041C
42041D
43044
92004
92015
92015A
92049
92049
92057
92058
92143
92143
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,8MM 410 410AA0800 4
WASHER-PLAIN-SMALL,14MM 410A 410AA1400 1
CIRCLIP-TYPE-C,35MM 481 481J3500 1
PIN-COTTER,2.5X20 550 550AA2520 1
BEARING-BALL 601 601B6202UU 3
DRUM-ASSY,REAR BRAKE 41034A 41034-1323 1
AXLE,RR 41068 41068-1401 1
SPROCKET-HUB,49T 42041 42041-1207 1 (OPTION)
SPROCKET-HUB,50T 42041A 42041-1228 1 (OPTION)
SPROCKET-HUB,51T 42041B 42041-1229 1
SPROCKET-HUB,52T 42041C 42041-1245 1 (OPTION)
SPROCKET-HUB,53T 42041D 42041-1246 1 (OPTION)
HOLDER-COMP-CALIPER 43044 43044-1122 1
STUD,8X16 92004 92004-1183 4
NUT,FLANGED,14MM 92015 92015-1401 1
NUT,8MM 92015A 92015-1432 4
SEAL-OIL 92049 92049-1469 2
CHAIN,DRIVE,DID420DS2X124L 92057 92057-1497 1
JOINT-CHAIN,DRIVE 92058 92058-1086 1
COLLAR,RR AXLE,L=12.5 92143 92143-1938 2
COLLAR,RR BRAKE DRUM,L=95 92152 92152-1090 1
