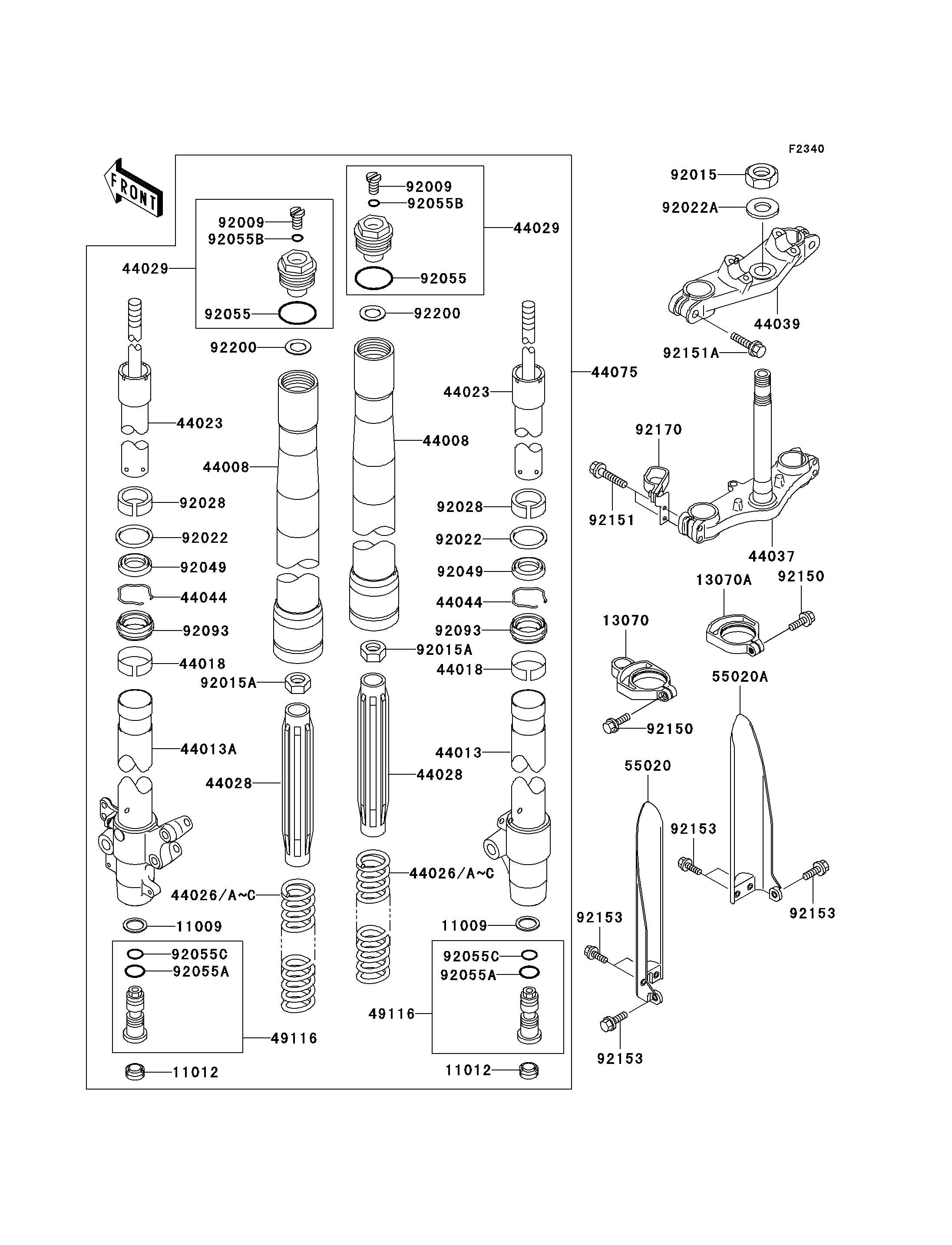

2006 KX100 - Front Fork(D6F)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11012
11012
11012
11012
13070
13070
13070A
13070A
44008
44008
44008
44008
44013
44013
44013A
44013A
44018
44018
44018
44018
44023
44023
44023
44023
44026
44026
44026
44026
44026A
44026A
44026A
44026A
44026B
44026B
44026B
44026B
44026C
44026C
44026C
44026C
44028
44028
44028
44028
44029
44029
44029
44029
44037
44037
44039
44039
44044
44044
44044
44044
44075
44075
49116
49116
49116
49116
55020
55020
55020A
55020A
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92028
92028
92028
92028
92049
92049
92049
92049
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92093
92093
92093
92093
92150
92150
92150
92150
92151
92151
92151A
92151A
92153
92153
92153
92153
92153
92153
92153
92153
92170
92170
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
CAP 11012 11012-1692 2
GUIDE,PROTECTOR,LH,WHITE 13070 13070-0049-RZ 1
GUIDE,PROTECTOR,RH,WHITE 13070A 13070-0050-RZ 1
PIPE-FORK OUTER,GOLD 44008 44008-1041-828 2
PIPE-FORK INNER,RH 44013 44013-1442 1
PIPE-FORK INNER,LH 44013A 44013-1484 1
PISTON-FORK 44018 44018-1058 2
CYLINDER-SET-FORK 44023 44023-1119 2
SPRING-FRONT FORK,K=2.75N/MM 44026 44026-1633 2 (OPTION)
SPRING-FRONT FORK,K=2.84N/MM 44026A 44026-1634 2
SPRING-FRONT FORK,K=2.94N/MM 44026B 44026-1635 2 (OPTION)
SPRING-FRONT FORK,K=2.65N/MM 44026C 44026-1671 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1090 2
SEAT-FORK SPRING 44029 44029-1152 2
HOLDER-FORK UNDER,M.M.GOLD 44037 44037-0032-D3 1
HOLDER-FORK UPPER,M.M.GOLD 44039 44039-0023-D3 1
RING-SNAP 44044 44044-015 2
DAMPER-SET-FORK,GOLD 44075 44075-1131-828 1
VALVE-ASSY,FORK 49116 49116-1153 2
GUARD,FORK,LH,WHITE 55020 55020-1611-RZ 1
GUARD,FORK,RH,WHITE 55020A 55020-1612-RZ 1
SCREW 92009 92009-1568 2
NUT,STEERING STEM,22MM 92015 92015-1653 1
NUT 92015A 92015-1839 2
WASHER,FRONT FORK 92022 92022-1275 2
WASHER,STEERING STEM 92022A 92022-1873 1
BUSHING 92028 92028-1656 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1394 2
RING-O 92055 92055-1123 2
RING-O 92055A 92055-1156 2
RING-O,2.8X6.6X1.9 92055B 92055-1441 2
RING-O,FORK VALVE 92055C 92055-1502 2
SEAL,FORK OUTER TUBE 92093 92093-1426 2
BOLT,5X16 92150 92150-1802 2
BOLT,FLANGED,8X40 92151 92151-1877 4
BOLT,FLANGED,8X35 92151A 92151-1878 2
BOLT,FLANGED,6X14 92153 92153-0936 6
CLAMP 92170 92170-1810 1
WASHER 92200 92200-1655 2
