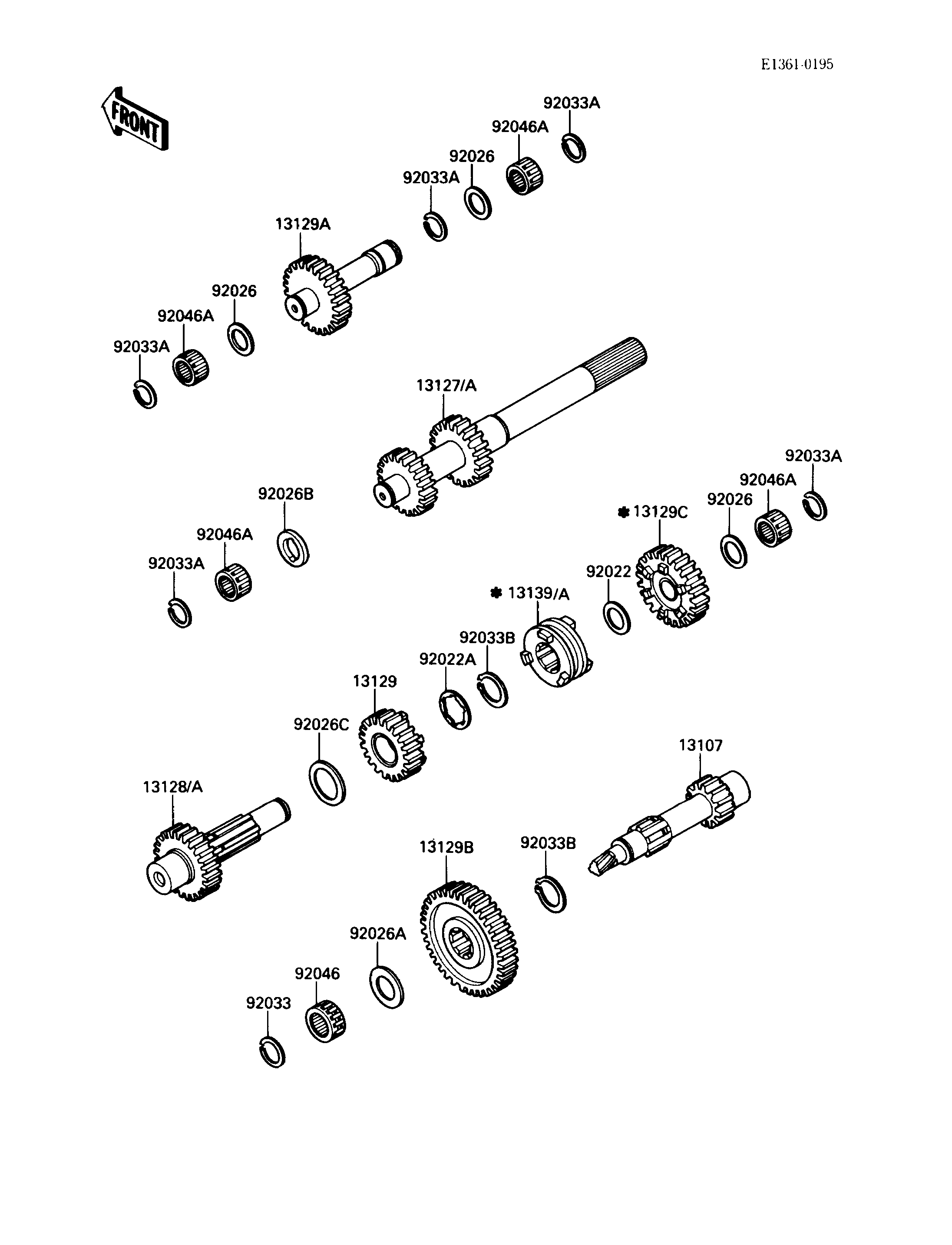

Mule 1000 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13107
13127
13127A
13128
13128A
13129
13129A
13129B
13129C
13139
13139A
92022
92022A
92026
92026
92026
92026A
92026B
92026C
92033
92033A
92033A
92033A
92033A
92033A
92033B
92033B
92046
92046A
92046A
92046A
92046A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,REDUCTION,13T 13107 13107-1232 1
SHAFT-TRANSMISSION INPUT 13127 13127-1168 1 ( - AF450BE000993)
SHAFT-TRANSMISSION INPUT 13127A 13127-1177 1 ( AF450BE000994 - )
SHAFT-TRANSMISSION OUTPUT 13128 13128-1148 1 ( - AF450BE000993)
SHAFT-TRANSMISSION OUTPUT 13128A 13128-1165 1 ( AF450BE000994 - )
GEAR,OUTPUT REVERSE,21T 13129 13129-1894 1
GEAR,REVERSE IDLER,24T 13129A 13129-1895 1
GEAR,REDUCTION,36T 13129B 13129-1896 1
GEAR,OUTPUT FORWARD,25T 13129C 13129-1952 1
SHIFTER 13139 13139-1053 1 ( - AF450BE003435)
SHIFTER 13139A 13139-1064 1 ( AF450BE003436 - )
WASHER,20.5X30X1,STEEL 92022 92022-112 1
WASHER,TOOTHED,28.3X33.5X1 92022A 92022-1139 1
SPACER,20.3X30X2.0 92026 92026-1022 3
SPACER,22X35.5X2.1 92026A 92026-1224 1
SPACER,20X32X3.6 92026B 92026-1298 1
SPACER,28X38X2 92026C 92026-1299 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,18MM 92033A 92033-029 5
RING-SNAP,25.9MM 92033B 92033-1037 2
BEARING-NEEDLE,FWF-223014 92046 92046-031 1
BEARING-NEEDLE,KMJ20X26X13.8X1 92046A 92046-1185 4
