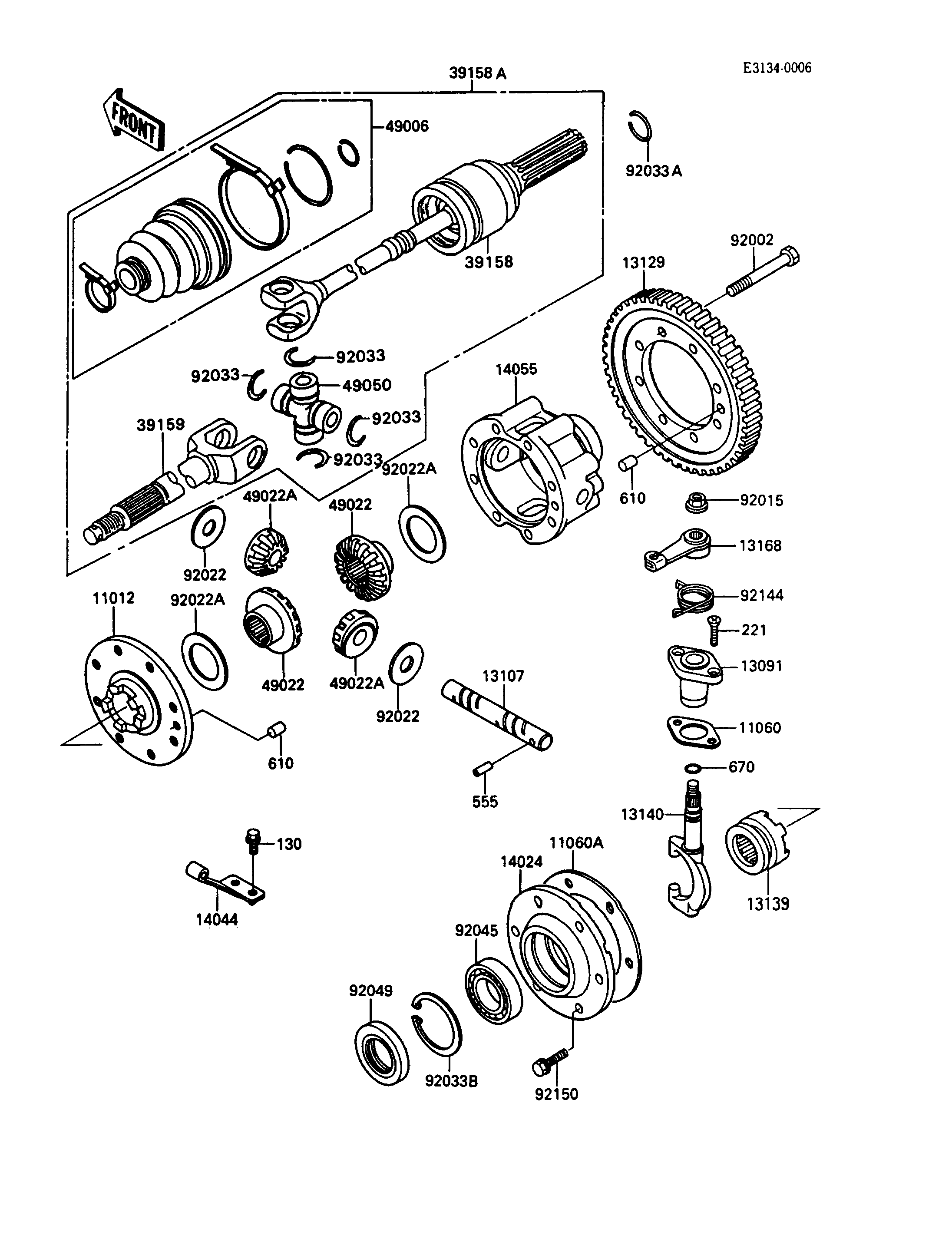

Mule 1000 - Drive Shaft

DOWNLOAD PDF
SELECT A NEW PART
130
221
555
610
610
670
11012
11060
11060A
13091
13107
13129
13139
13140
13168
14024
14044
14055
39158
39158A
39159
49006
49022
49022
49022A
49022A
49050
92002
92015
92022
92022
92022A
92022A
92033
92033
92033
92033
92033A
92033B
92045
92049
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0610 2
SCREW-CSK-CROS,6X18 221 221B0618 2
PIN-SPRING 555 555A0528 1
ROLLER,8X12 610 610A0812 2
O RING,10MM 670 670B2010 1
CAP,GEAR CASE 11012 11012-1613 1
GASKET,SHIFTER COVER 11060 11060-1247 1
GASKET,DRIVESHAFT COVER 11060A 11060-1251 2
HOLDER 13091 13091-1375 1
SHAFT 13107 13107-1219 1
GEAR,DIFFERENTIAL,67T 13129 13129-1897 1
SHIFTER 13139 13139-1054 1
FORK-SHIFT,DIFF LOCK 13140 13140-1136 1
LEVER,DIFF LOCK 13168 13168-1367 1
COVER,DRIVESHAFT 14024 14024-1560 2
HOLDER-CABLE 14044 14044-1061 1
CASE-GEAR 14055 14055-1081 1
SHAFT-ASSY-DRIVE 39158 39158-1066 2
SHAFT-ASSY-DRIVE 39158A 39158-1067 2
SHAFT-DRIVE 39159 39159-1063 2
BOOT,DRIVE SHAFT 49006 49006-1249 2
GEAR-BEVEL,16T 49022 49022-1101 2
GEAR-BEVEL,10T 49022A 49022-1105 2
SPIDER 49050 49050-1002 2
BOLT,8X68 92002 92002-1553 8
NUT,FLANGED,8MM 92015 92015-1022 1
WASHER,14.5X38X1 92022 92022-1686 2
WASHER 92022A 92022-1742 2
RING-SNAP 92033 92033-1032 AR
RING-SNAP 92033A 92033-1240 2
RING-SNAP,55MM 92033B 92033-1274 2
BEARING-BALL,6006 92045 92045-1208 2
SEAL-OIL,TC35X55X8 92049 92049-1298 2
SPRING,LOCK LEVER 92144 92144-1198 1
BOLT 92150 92150-1007 12
