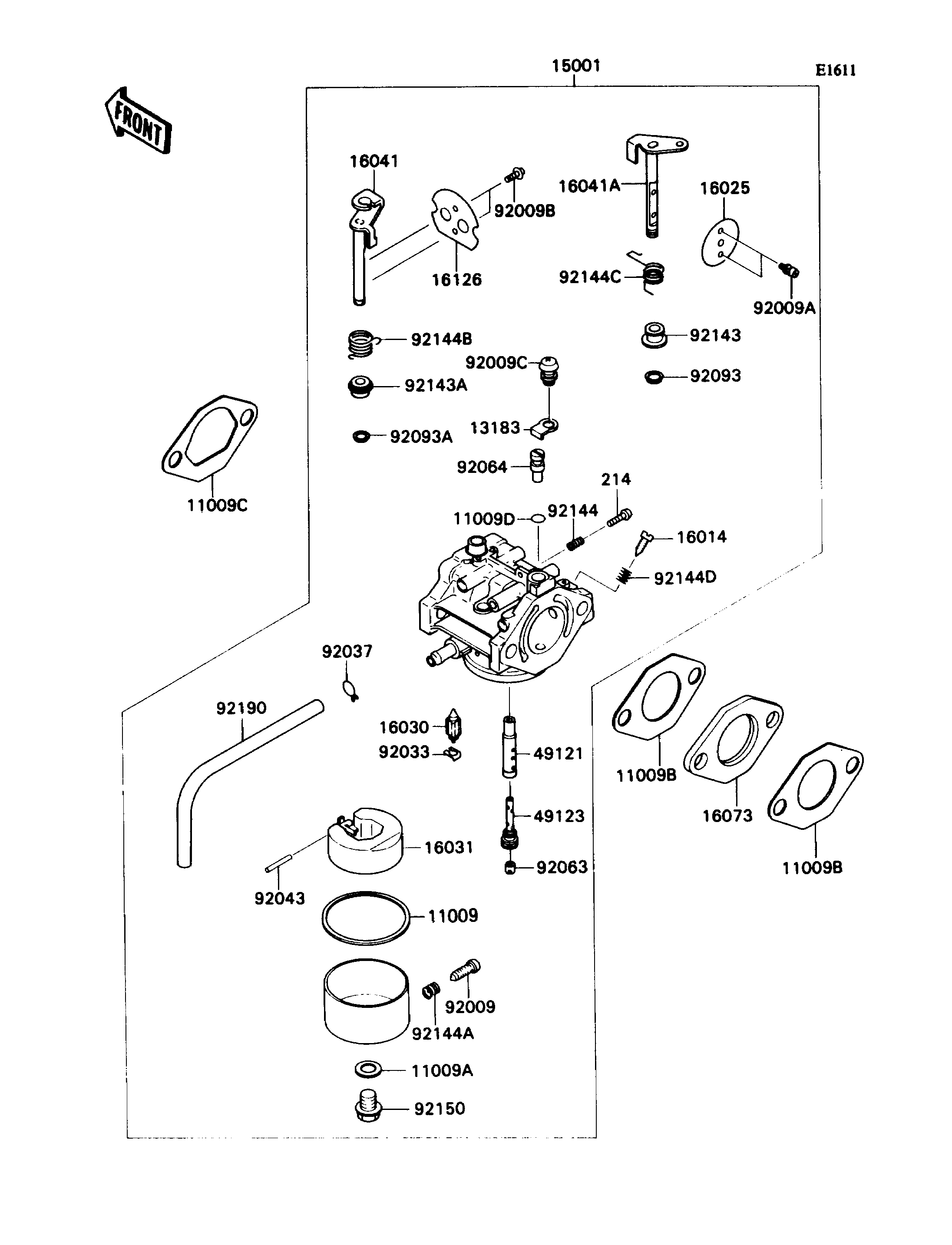

Mule 2030 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-2024 1
GASKET 11009A 11009-2025 1
GASKET,INSULATOR 11009B 11009-2436 2
GASKET,CARBURETOR 11009C 11009-2437 1
GASKET,PILOT JET 11009D 16038-024 1
PLATE,PILOT JET 13183 13183-2112 1
CARBURETOR-ASSY 15001 15001-1533 1
SCREW-PILOT AIR 16014 16014-1065 1
VALVE-THROTTLE,#140 16025 16025-1157 1
VALVE-FLOAT 16030 16030-2067 1
FLOAT 16031 16031-2066 1
SHAFT-CARBURETOR,CHOKE 16041 16041-1054 1
SHAFT-CARBURETOR,THROTTLE 16041A 16041-1055 1
INSULATOR 16073 16073-1079 1
VALVE,CHOKE 16126 16126-1232 1
NOZZLE-MAIN 49121 49121-1051 1
HOLDER-MAIN JET 49123 49123-2057 1
SCREW,DRAIN 92009 92009-2015 1
SCREW,THROTTLE VALVE 92009A 92009-2080 2
SCREW,CHOKE VALVE 92009B 92009-2081 2
SCREW 92009C 92009-2244 1
RING-SNAP 92033 92033-2067 1
CLAMP,BREATHER TUBE 92037 92037-174 1
PIN,FLOAT 92043 92043-2006 1
JET-MAIN,#122.5 92063 92063-1389 1
JET-PILOT,#72.5 92064 92064-1159 1
SEAL,THROTTLE SHAFT 92093 92093-1286 1
SEAL,CHOKE SHAFT 92093A 92093-1287 1
COLLAR,THROTTLE SHAFT 92143 92027-2025 1
COLLAR,CHOKE SHAFT 92143A 92143-1349 1
SPRING,THROTTLE ADJUST SCREW 92144 92081-2008 1
SPRING,DRAIN SCREW 92144A 92081-2009 1
SPRING,CHOKE SHAFT 92144B 92144-1442 1
SPRING,THROTTLE SHAFT 92144C 92144-1443 1
SPRING,PILOT AIR SCREW 92144D 92144-1527 1
BOLT,MAIN JET 92150 92002-2009 1
TUBE,5X8X175 92190 92190-1048 1
SCREW-PAN+- 214 214B0414 1
