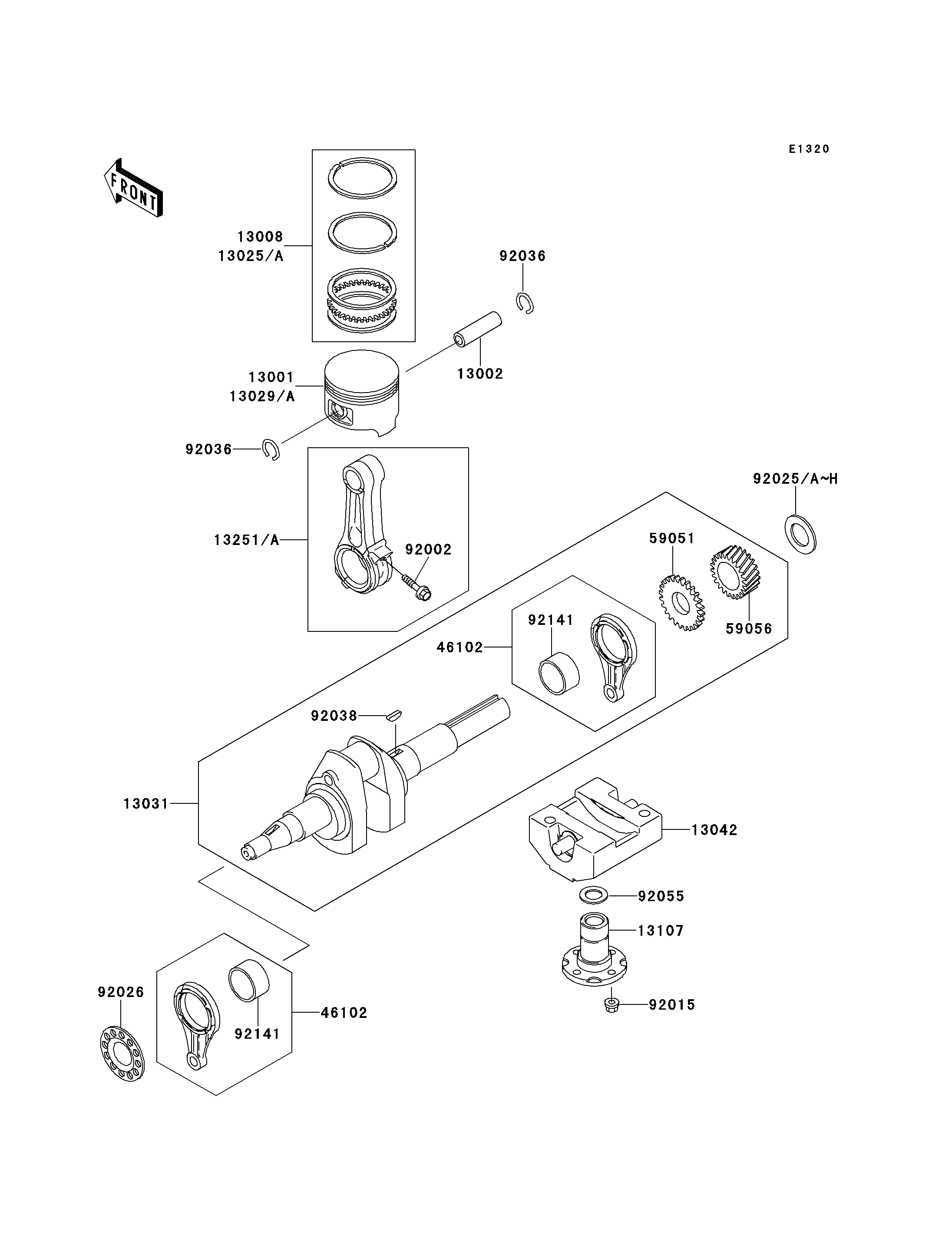

Mule 500 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
13001
13002
13008
13025
13025A
13029
13029A
13031
13042
13107
13251
13251A
46102
46102
59051
59056
92002
92015
92025
92025A
92025B
92025C
92025D
92025E
92025F
92025G
92025H
92026
92036
92036
92038
92055
92141
92141
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 13001 13001-2125 1
PIN-PISTON 13002 13002-2069 1
RING-SET-PISTON,STD 13008 13008-6007 1
RING-SET-PISTON L,0.25 13025 13025-2073 AR
RING-SET-PISTON L,0.50 13025A 13025-2074 AR
PISTON-ENGINE L,0.25 13029 13029-2100 AR
PISTON-ENGINE L,0.50 13029A 13029-2101 AR
CRANKSHAFT-COMP 13031 13031-2060 1
WEIGHT 13042 13042-6009 1
SHAFT 13107 13107-2088 1
ROD-ASSY-CONNECTING,U/S=0.50 13251 13251-6034 AR
ROD-ASSY-CONNECTING 13251A 13251-6056 1
ROD 46102 46102-6004 2
GEAR-SPUR 59051 59051-2097 1
GEAR-HELICAL 59056 59056-2993 1
BOLT 92002 92002-2053 2
NUT,FLANGED,6MM 92015 92015-1193 4
SHIM,T=1.13 92025 92025-2168 AR
SHIM,T=1.18 92025A 92025-2169 AR
SHIM,T=1.23 92025B 92025-2170 AR
SHIM,T=1.28 92025C 92025-2171 AR
SHIM,T=1.33 92025D 92025-2172 AR
SHIM,T=1.38 92025E 92025-2173 AR
SHIM,T=1.43 92025F 92025-2174 AR
SHIM,T=1.48 92025G 92025-2175 AR
SHIM,T=1.53 92025H 92025-2207 AR
SPACER 92026 92026-2052 1
RING-SNAP,PISTON PIN 92036 92036-008 2
KEY,WOODRUFF 92038 92038-2094 1
RING-O 92055 92055-2072 1
BEARING-PLANE 92141 92141-2090 2
