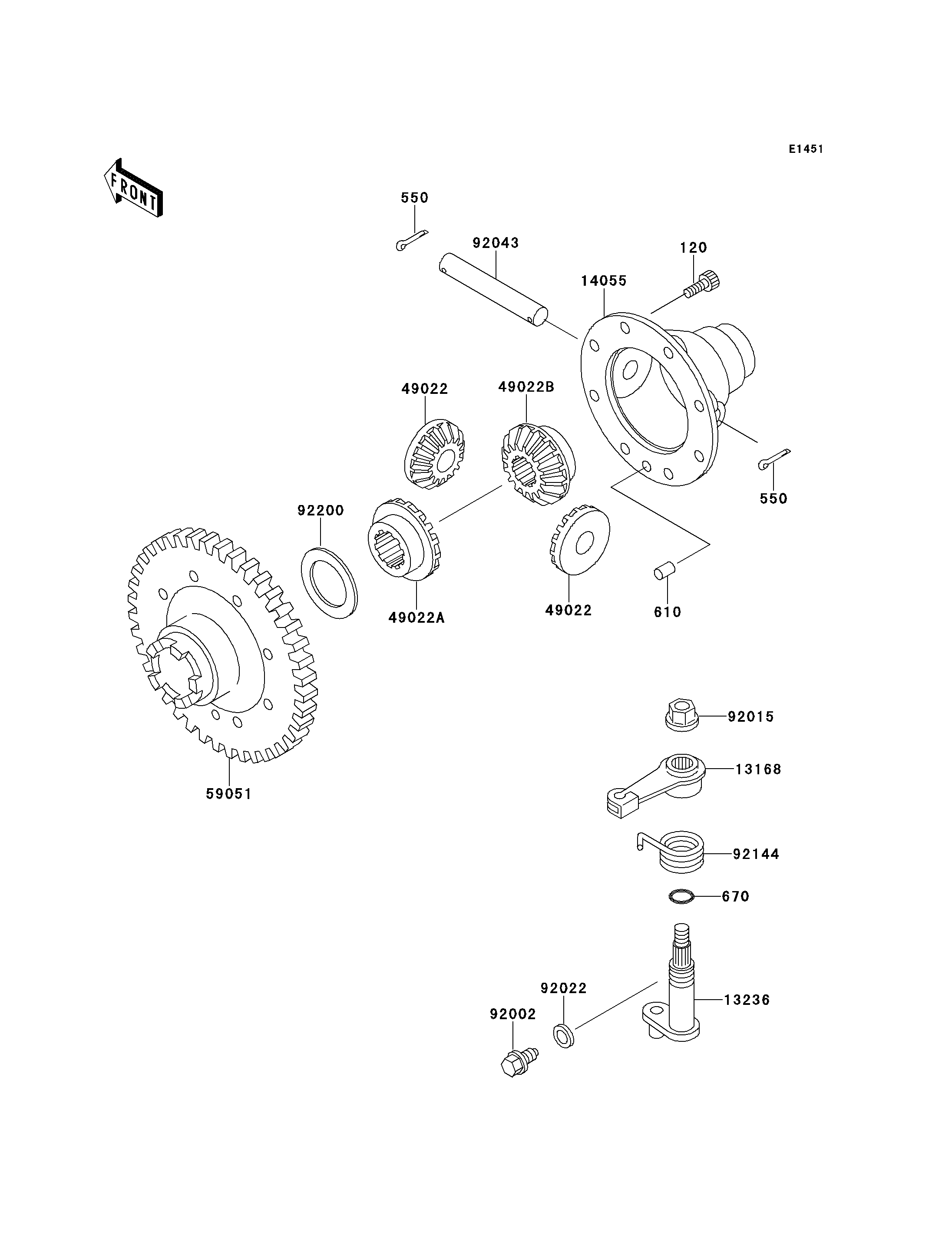

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
120
550
550
610
670
13168
13236
14055
49022
49022
49022A
49022B
59051
92002
92015
92022
92043
92144
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,8X20 | 120 | 120P0820 | 8 | ||
| PIN-COTTER,2.5X20 | 550 | 550D2520 | 2 | ||
| ROLLER,8X12 | 610 | 610A0812 | 1 | ||
| O RING,10MM | 670 | 670B2010 | 1 | ||
| LEVER,DIFF LOCK | 13168 | 13168-1523 | 1 | ||
| LEVER-COMP,DIFF LOCK | 13236 | 13236-1219 | 1 | ||
| CASE-GEAR,DIFFERENTIAL | 14055 | 14055-1098 | 1 | ||
| GEAR-BEVEL,10T | 49022 | 49022-1105 | 2 | ||
| GEAR-BEVEL,16T | 49022A | 49022-1117 | 1 | ||
| GEAR-BEVEL,16T | 49022B | 49022-1120 | 1 | ||
| GEAR,DIFFERENTIAL,67T | 59051 | 59051-1239 | 1 | ||
| BOLT,DECOMPRESSOR | 92002 | 92002-1962 | 1 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1406 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| PIN,BEVEL GEAR | 92043 | 92043-1458 | 1 | ||
| SPRING,LOCK LEVER | 92144 | 92144-1198 | 1 | ||
| WASHER | 92200 | 92200-1077 | 1 |
| BOLT-SOCKET,8X20 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,2.5X20 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER,8X12 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,10MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,DIFF LOCK | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,DIFF LOCK | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-GEAR,DIFFERENTIAL | |
| REF # | 14055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-BEVEL,10T | |
| REF # | 49022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR-BEVEL,16T | |
| REF # | 49022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-BEVEL,16T | |
| REF # | 49022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,DIFFERENTIAL,67T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,DECOMPRESSOR | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X12X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,BEVEL GEAR | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,LOCK LEVER | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
