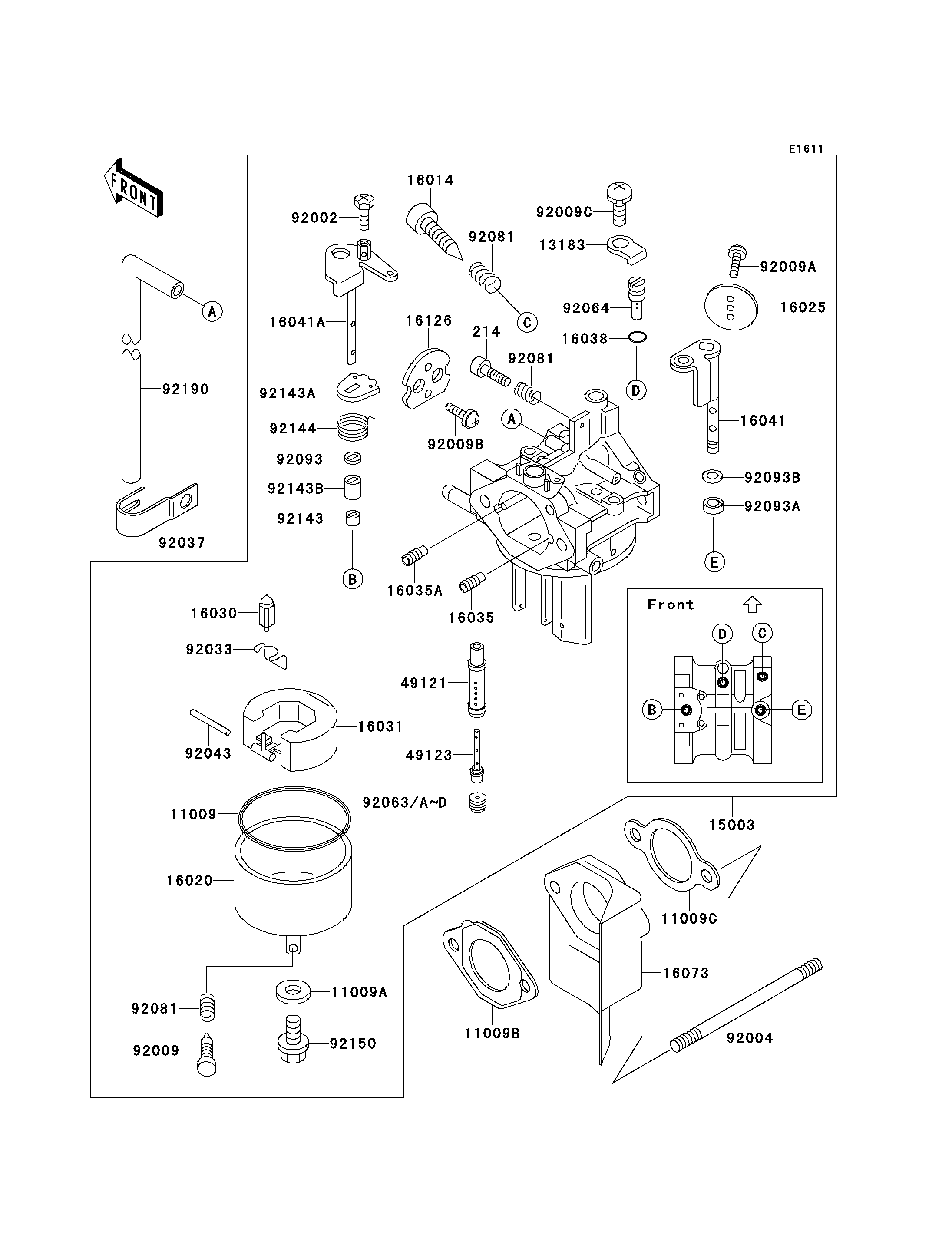

Mule 500 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009A
11009A
11009B
11009B
11009C
11009C
13183
13183
15003
15003
16014
16014
16020
16020
16025
16025
16030
16030
16031
16031
16035
16035
16035A
16035A
16038
16038
16041
16041
16041A
16041A
16073
16073
16126
16126
49121
49121
49123
49123
92002
92002
92004
92004
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92033
92033
92037
92037
92043
92043
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92064
92064
92081
92081
92081
92081
92081
92081
214
214
92093
92093
92093A
92093A
92093B
92093B
92143
92143
92143A
92143A
92143B
92143B
92144
92144
92150
92150
92190
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-2024 1
GASKET 11009A 11009-2025 1
GASKET,CARBURETOR 11009B 11009-2827 1
GASKET,INSULATOR 11009C 11009-2939 1
PLATE 13183 13183-2252 1
CARBURETOR-ASSY. 15003 15003-2104 1
SCREW-PILOT AIR 16014 16014-2004 1
CHAMBER-FLOAT 16020 16020-2051 1
VALVE-THROTTLE,#160 16025 16025-2161 1
VALVE-FLOAT 16030 16030-2073 1
FLOAT 16031 16031-2066 1
JET-AIR,#1.8 16035 16035-2056 1
JET-AIR,#1.2 16035A 16035-2061 1
GASKET,PILOT JET 16038 16038-024 1
SHAFT-CARBURETOR,THROTTLE 16041 16041-2203 1
SHAFT-CARBURETOR,CHOKE 16041A 16041-2209 1
INSULATOR 16073 16073-2154 1
VALVE,CHOKE 16126 16126-2181 1
NOZZLE-MAIN,#32B 49121 49121-2164 1
HOLDER-MAIN JET 49123 49123-2060 1
BOLT 92002 92002-2008 1
STUD,6X80 92004 92004-2125 2
SCREW,DRAIN 92009 92009-2015 1
SCREW,THROTTLE VALVE 92009A 92009-2080 2
SCREW,CHOKE VALVE 92009B 92009-2081 2
SCREW 92009C 92009-2244 1
RING-SNAP 92033 92033-2067 1
CLAMP 92037 92037-2081 1
PIN,FLOAT 92043 92043-2006 1
JET-MAIN,#97.5 92063 92063-2163 1 (OPTION)
JET-MAIN,#95 92063A 92063-2167 1 (OPTION)
JET-MAIN,#100 92063B 92063-2173 1 (OPTION)
JET-MAIN,#105 92063C 92063-2218 1
JET-MAIN,#102.5 92063D 92063-2236 1 (OPTION)
JET-PILOT,#45 92064 92064-2063 1
SPRING 92081 92081-2009 3
SCREW-PAN+- 214 214B0414 1
SEAL 92093 92093-2081 1
SEAL 92093A 92093-2082 1
SEAL 92093B 92093-2083 1
COLLAR 92143 92143-2132 1
COLLAR 92143A 92143-2133 1
COLLAR 92143B 92143-2134 1
SPRING 92144 92144-2269 1
BOLT 92150 92150-2146 1
TUBE,6X10X175 92190 92190-2051 1
