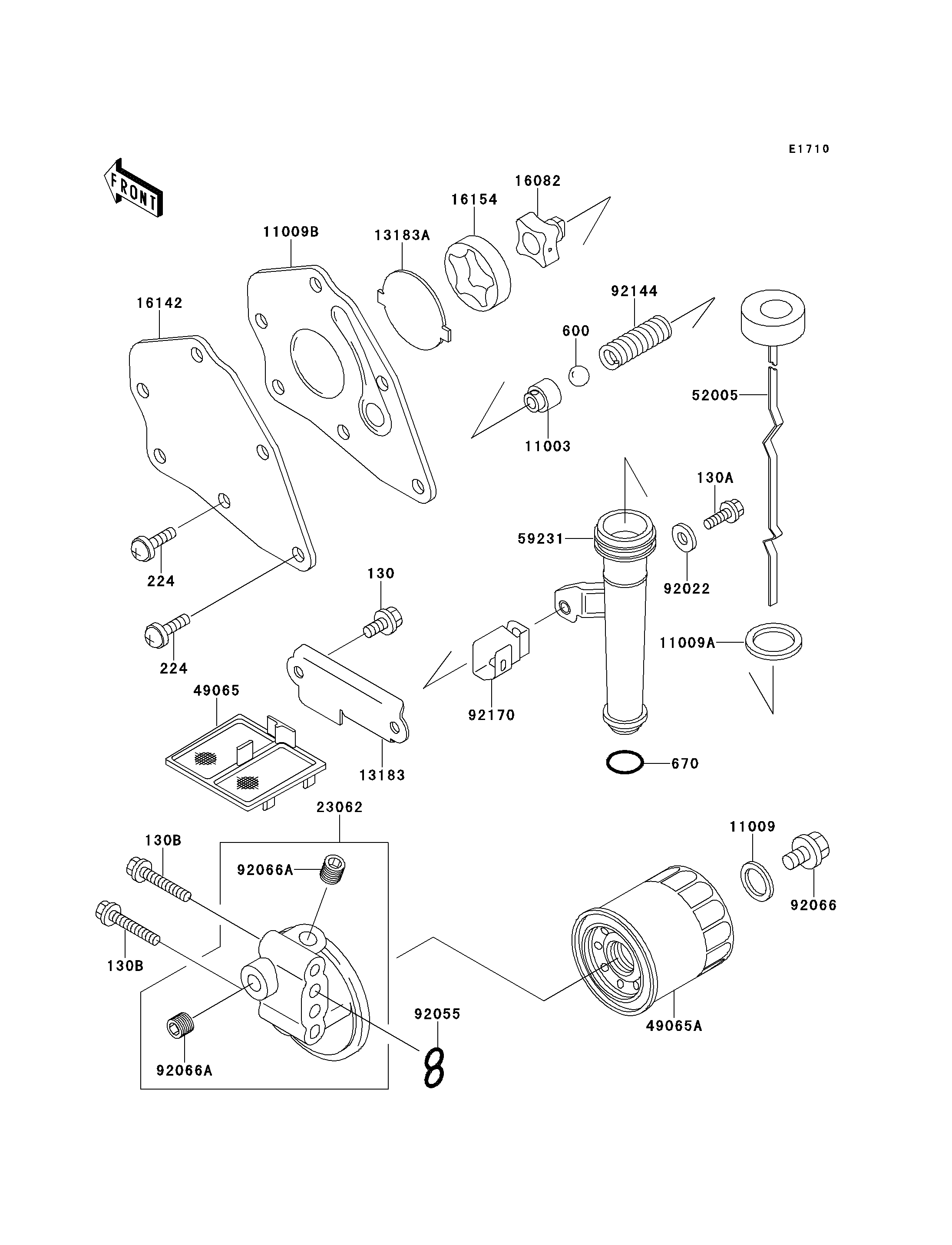

Mule 500 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130B
224
224
600
670
11003
11009
11009A
11009B
13183
13183A
16082
16142
16154
23062
49065
49065A
52005
59231
92022
92055
92066
92066A
92066A
92144
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X8 130 130B0508 2
BOLT-FLANGED,6X16 130A 130B0616 1
BOLT-FLANGED,6X40 130B 130G0640 2
SCREW-PAN-WP-CROS 224 224B0612 6
BALL-STEEL,5/16" 600 600A1000 1
O RING,16MM 670 670D2016 1
SEAT-VALVE 11003 11003-2089 1
GASKET 11009 11009-2175 1
GASKET,OIL GAUGE 11009A 11009-2346 1
GASKET,OIL PUMP 11009B 11009-2828 1
PLATE,OIL FILTER 13183 13183-2295 1
PLATE,OIL PUMP 13183A 13183-2298 1
PUMP-ASSY-OIL 16082 16082-2062 1
COVER-PUMP 16142 16142-2062 1
ROTOR-PUMP,OUT 16154 16154-2054 1
BRACKET-COMP 23062 23062-6004 1
FILTER-OIL 49065 49065-2068 1
FILTER-OIL 49065A 49065-2071 1
GAUGE 52005 52005-2095 1
FILLER 59231 59231-2072 1
WASHER 92022 92022-2089 1
RING-O 92055 92055-2063 1
PLUG 92066 92066-2203 1
PLUG 92066A 92066-2211 2
SPRING 92144 92144-2202 1
CLAMP 92170 92170-2018 1
