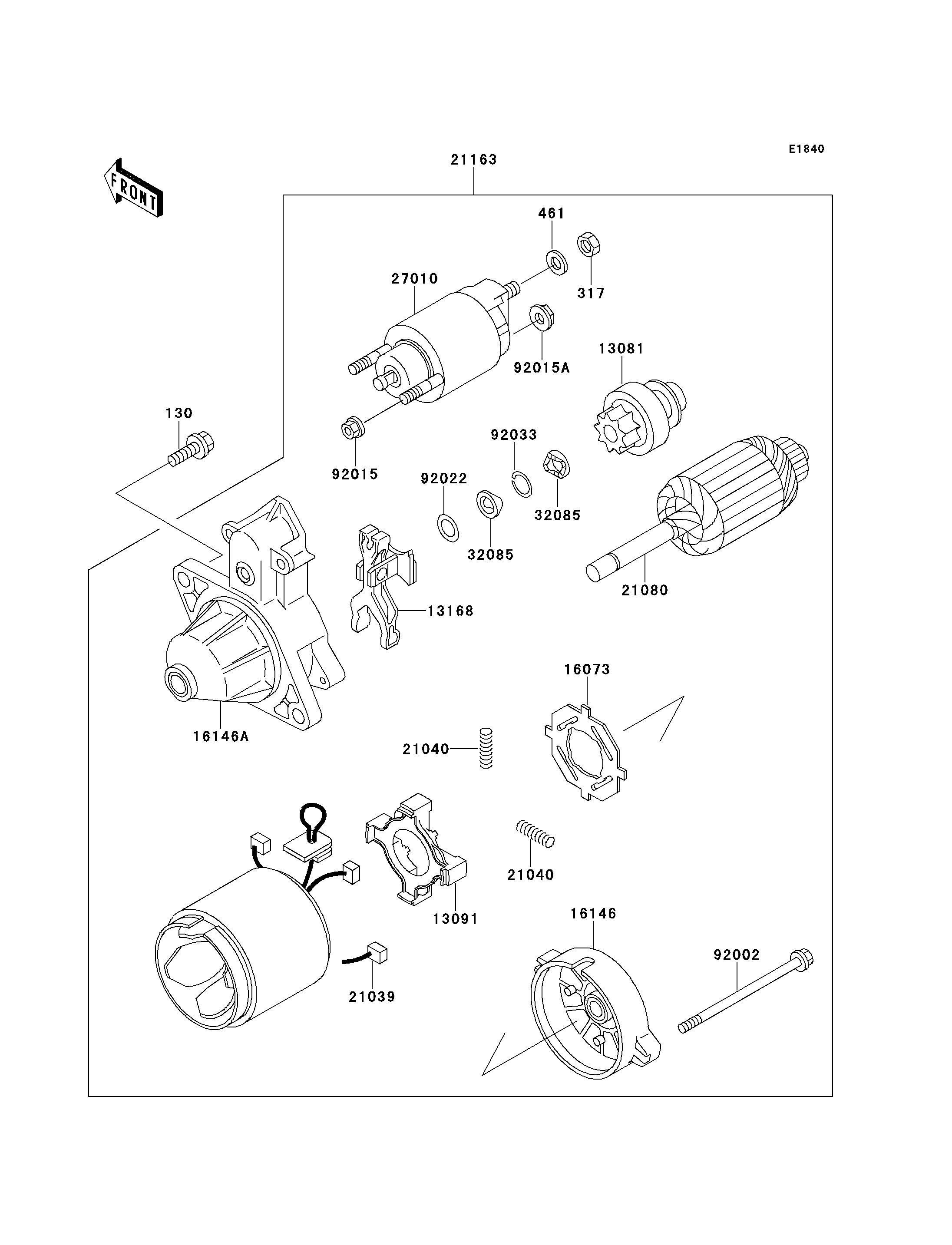

Mule 500 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
130
317
461
13081
13091
13168
16073
16146
16146A
21039
21040
21040
21080
21163
27010
32085
32085
92002
92015
92015A
92022
92033
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25 130 130G0825 2
NUT-HEX-SMALL,8MM 317 317B0800 1
WASHER-SPRING,8MM 461 461F0800 1
CLUTCH-ASSY 13081 13081-2164 1
HOLDER,BRUSH 13091 13091-2068 1
LEVER,SHIFT 13168 13168-2148 1
INSULATOR 16073 16073-2098 1
COVER-ASSY,RR 16146 16146-2164 1
COVER-ASSY,FR 16146A 16146-2191 1
BRUSH 21039 21039-2059 4
SPRING-BRUSH 21040 21040-2052 4
ARMATURE 21080 21080-2064 1
STARTER-ELECTRIC 21163 21163-2109 1
SWITCH 27010 27010-2122 1
STOPPER 32085 32085-2066 2
BOLT 92002 92002-2277 2
NUT 92015 92015-2146 2
NUT 92015A 92015-2147 1
WASHER 92022 92022-2218 1
RING-SNAP 92033 92033-2081 1
