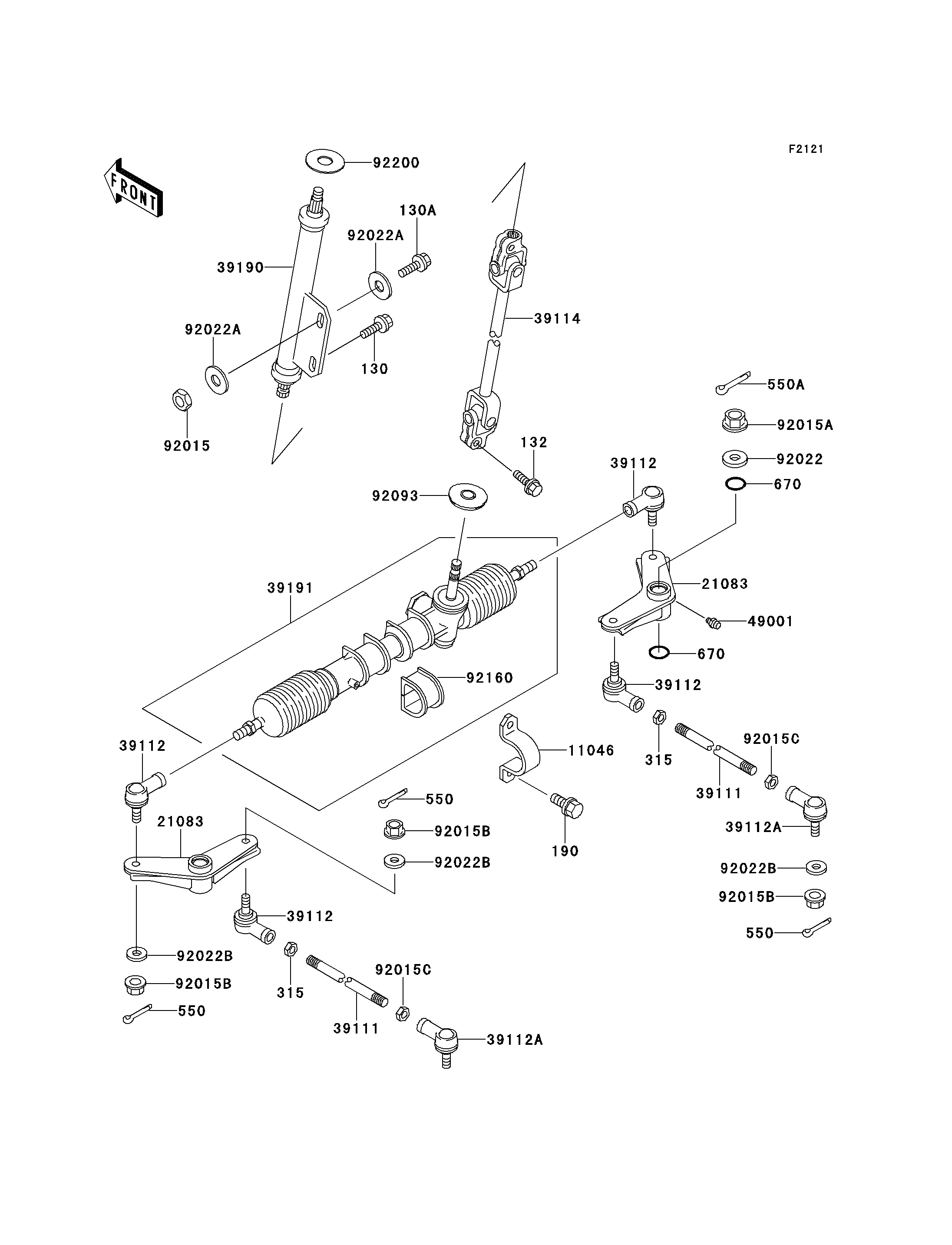

Mule 500 - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
190
315
315
550
550
550
550A
670
670
11046
21083
21083
39111
39111
39112
39112
39112
39112
39112A
39112A
39114
39190
39191
49001
92015
92015A
92015B
92015B
92015B
92015C
92015C
92022
92022A
92022A
92022B
92022B
92022B
92093
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X25 130 130J1025 1
BOLT-FLANGED,10X30 130A 130J1030 1
BOLT-FLANGED-SMALL 132 132J0825 2
BOLT-UPSET-WS 190 190H1025 4
NUT-HEX-FINE 315 315C1200 2
PIN-COTTER,2.5X20 550 550D2520 6
PIN-COTTER,4.0X20 550A 550D4020 2
O RING,18MM 670 670B2018 4
BRACKET,STEERING GEAR 11046 11046-1858 2
ARM 21083 21083-1088 2
ROD-TIE 39111 39111-1112 2
RODEND-TIE,RIGHT SCREW 39112 39112-1065 4
RODEND-TIE,LEFT SCREW 39112A 39112-1066 2
SHAFT-COMP-STRG 39114 39114-1070 1
SHAFT-ASSY-STEERING 39190 39190-1003 1
GEAR-ASSY-STEERING 39191 39191-1003 1
NIPPLE-GREASE 49001 49001-1051 2
NUT,LOCK,10MM,BLACK 92015 92015-1189 1
NUT,FLANGED,12MM 92015A 92015-1433 2
NUT,FLANGED,10MM 92015B 92015-1502 6
NUT,12MM,LEFT SCREW 92015C 92015-1532 2
WASHER,12.4X28X4.5 92022 92022-1196 2
WASHER,10.5X26X2.3,BLACK 92022A 92022-1396 2
WASHER,10.5X18X1.6 92022B 92022-1539 6
SEAL 92093 92093-1313 1
DAMPER,STEERING GEAR 92160 92160-1084 2
WASHER,15X45X0.6 92200 92200-1130 1
