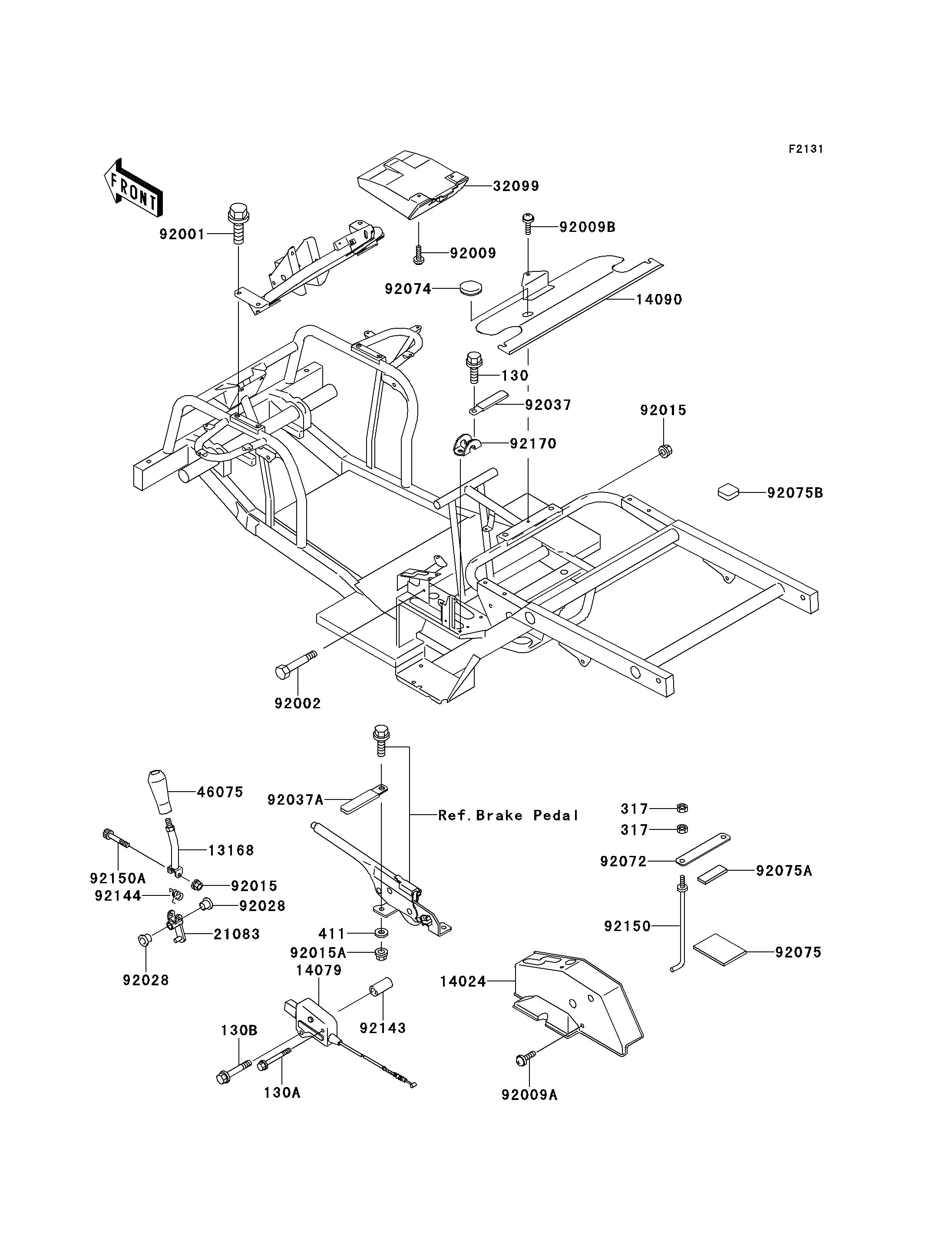

Mule 500 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
317
317
411
13168
14024
14079
14090
21083
32099
46075
92001
92002
92009
92009A
92009B
92015
92015
92015A
92028
92028
92037
92037A
92072
92074
92075
92075A
92075B
92143
92144
92150
92150A
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 2
BOLT-FLANGED,6X50,BLACK 130A 130J0650 1
BOLT-FLANGED,8X50 130B 130J0850 1
NUT-HEX-SMALL,8MM 317 317H0800 4
WASHER-PLAIN,8MM 411 411B0800 1
LEVER,SHIFT 13168 13168-1534 1
COVER,SHIFT&BATTERY 14024 14024-1985 1
HOLDER-ASSY,DIFF LOCK 14079 14079-1100 1
COVER,SEAT 14090 14090-1120 1
ARM,SHIFT LEVER 21083 21083-1091 1
CASE,TOOL 32099 32099-1039 1
GRIP,SHIFT LEVER 46075 46075-1075 1
BOLT,FLANGED,8X18 92001 92001-4030 4
BOLT 92002 92002-1984 1
SCREW 92009 92009-1166 2
SCREW,6X14 92009A 92009-1288 3
SCREW,6X10 92009B 92009-1402 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
NUT,FLANGED,LOCK,8MM 92015A 92015-1696 1
BUSHING 92028 92028-1507 2
CLAMP,WIRING HARNESS 92037 92037-1069 1
CLAMP 92037A 92037-113 1
BAND,BATTERY 92072 92072-1233 1
PLUG,34X1 92074 92074-004 1
DAMPER 92075 92075-1076 1
DAMPER 92075A 92075-1214 1
DAMPER 92075B 92075-1882 6
COLLAR,11.3X15.9X36 92143 92143-1162 1
SPRING 92144 92144-1175 1
BOLT,BATTERY 92150 92150-1293 2
BOLT,SOCKET,6X35 92150A 92150-1393 1
CLAMP,SHIFT CABLE 92170 92170-1210 1
