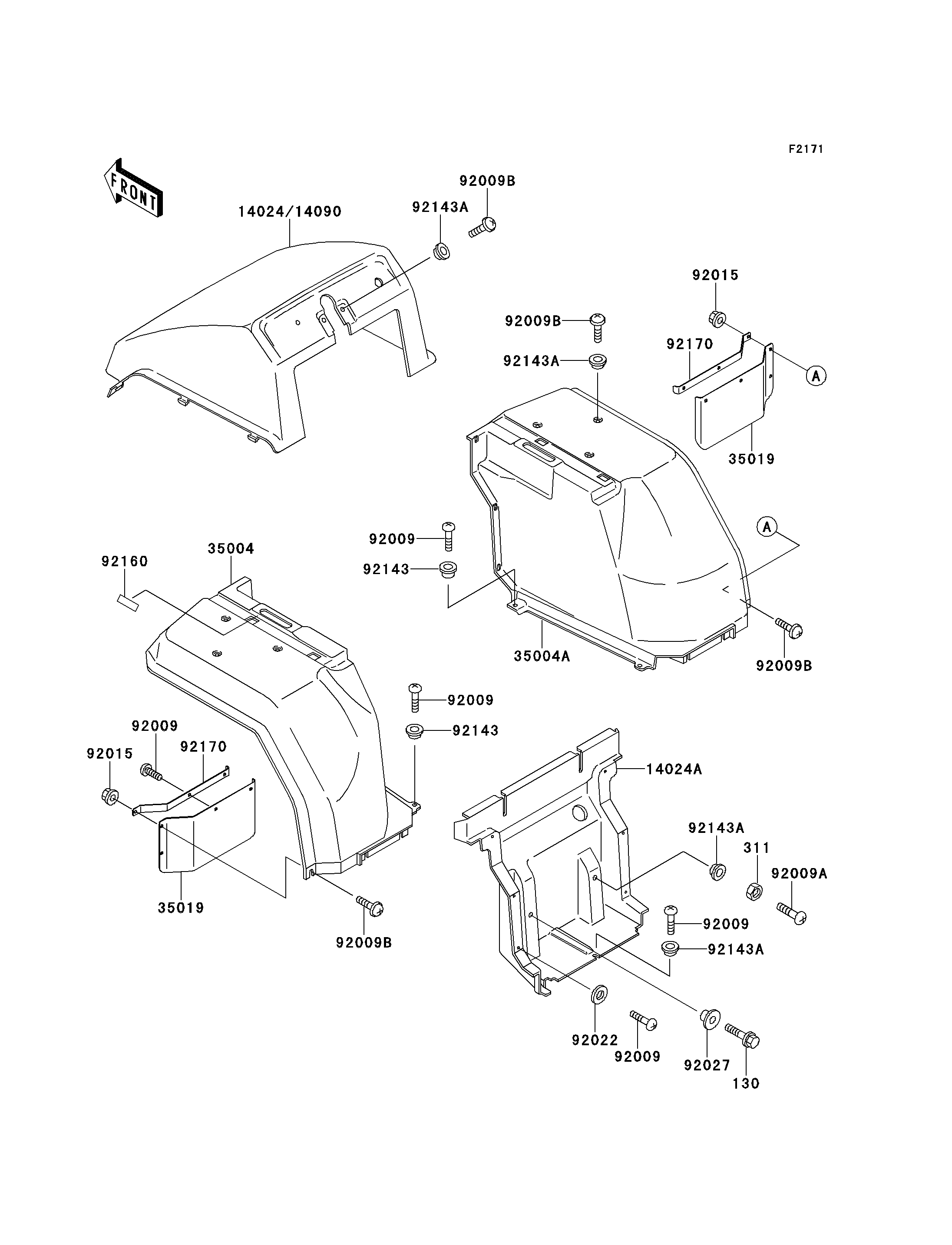

Mule 500 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
311
14024
14024A
35004
35004A
35019
35019
92009
92009
92009
92009
92009
92009A
92009B
92009B
92009B
92009B
92015
92015
92022
92027
92143
92143
92143A
92143A
92143A
92143A
92160
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 1
NUT-HEX,6MM 311 311B0600 1
COVER,UPP,F.RED 14024 14024-1983-6L 1
COVER,FR 14024A 14024-1984 1
FENDER-FRONT,LH,F.RED 35004 35004-1276-6L 1
FENDER-FRONT,RH,F.RED 35004A 35004-1277-6L 1
FLAP,FRONT FENDER 35019 35019-1271 2
SCREW 92009 92009-1166 15
SCREW,6X35 92009A 92009-1589 1
SCREW,6X16 92009B 92009-1621 10
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 6
COLLAR,L=13.1,BLACK 92027 92027-1450 1
COLLAR 92143 92143-1057 2
COLLAR,L=5 92143A 92143-1087 12
DAMPER 92160 92160-1348 2
CLAMP,FLAP 92170 92170-1371 2
