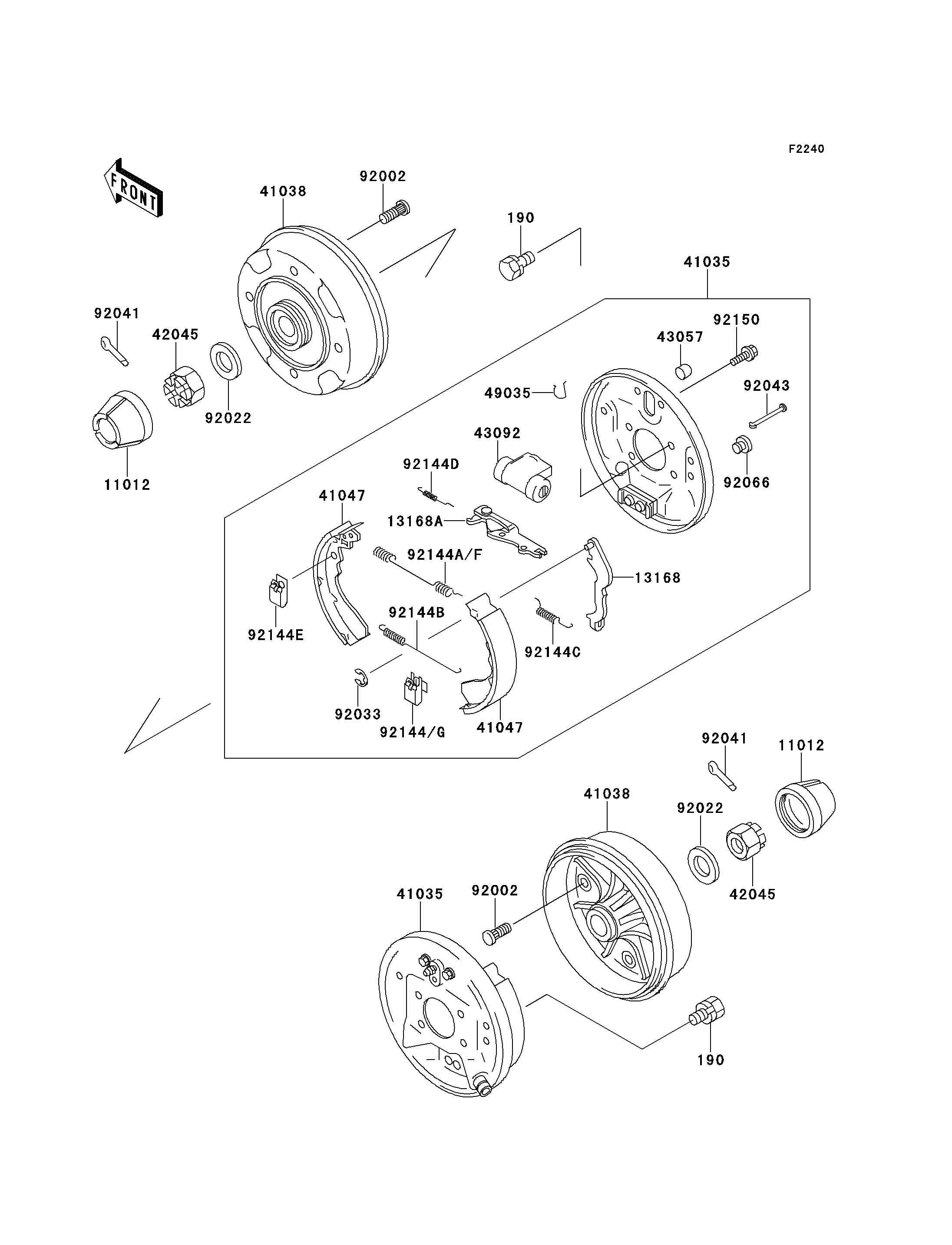

Mule 500 - Rear Hubs/Brakes

DOWNLOAD PDF
SELECT A NEW PART
190
190
11012
11012
13168
13168A
41035
41035
41038
41038
41047
41047
42045
42045
43057
43092
49035
92002
92002
92022
92022
92033
92041
92041
92043
92066
92144
92144A
92144B
92144C
92144D
92144E
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS,10X16 190 190H1016 8
CAP,WHEEL 11012 11012-1519 2
LEVER 13168 13168-1481 2
LEVER 13168A 13168-1482 2
PANEL-ASSY-BRAKE,RR 41035 41035-1283 2
DRUM,REAR BRAKE 41038 41038-1239 2
SHOE-ASSY-BRAKE,RR 41047 41047-1052 4
NUT,CASTLE,18MM 42045 42045-018 2
CAP-BREATHER 43057 43057-1054 2
CYLINDER 43092 43092-1058 2
PIN-SPRING 49035 49035-1058 2
BOLT,10X30 92002 92002-1388 8
WASHER,18.3X34X4.5 92022 92022-1658 2
RING-SNAP 92033 92033-1279 2
COTTER,4.0X35 92041 92041-1053 2
PIN,SHOE HOLD 92043 92043-1460 4
PLUG 92066 92066-1365 2
SPRING,SHOE HOLD 92144 92144-1611 2
SPRING,RETURN,UPP 92144A 92144-1612 2
SPRING,RETURN,LWR 92144B 92144-1613 2
SPRING 92144C 92144-1614 2
SPRING 92144D 92144-1615 2
SPRING,SHOE HOLD 92144E 92144-1616 2
BOLT,FLANGED,6X10 92150 92150-1664 4
