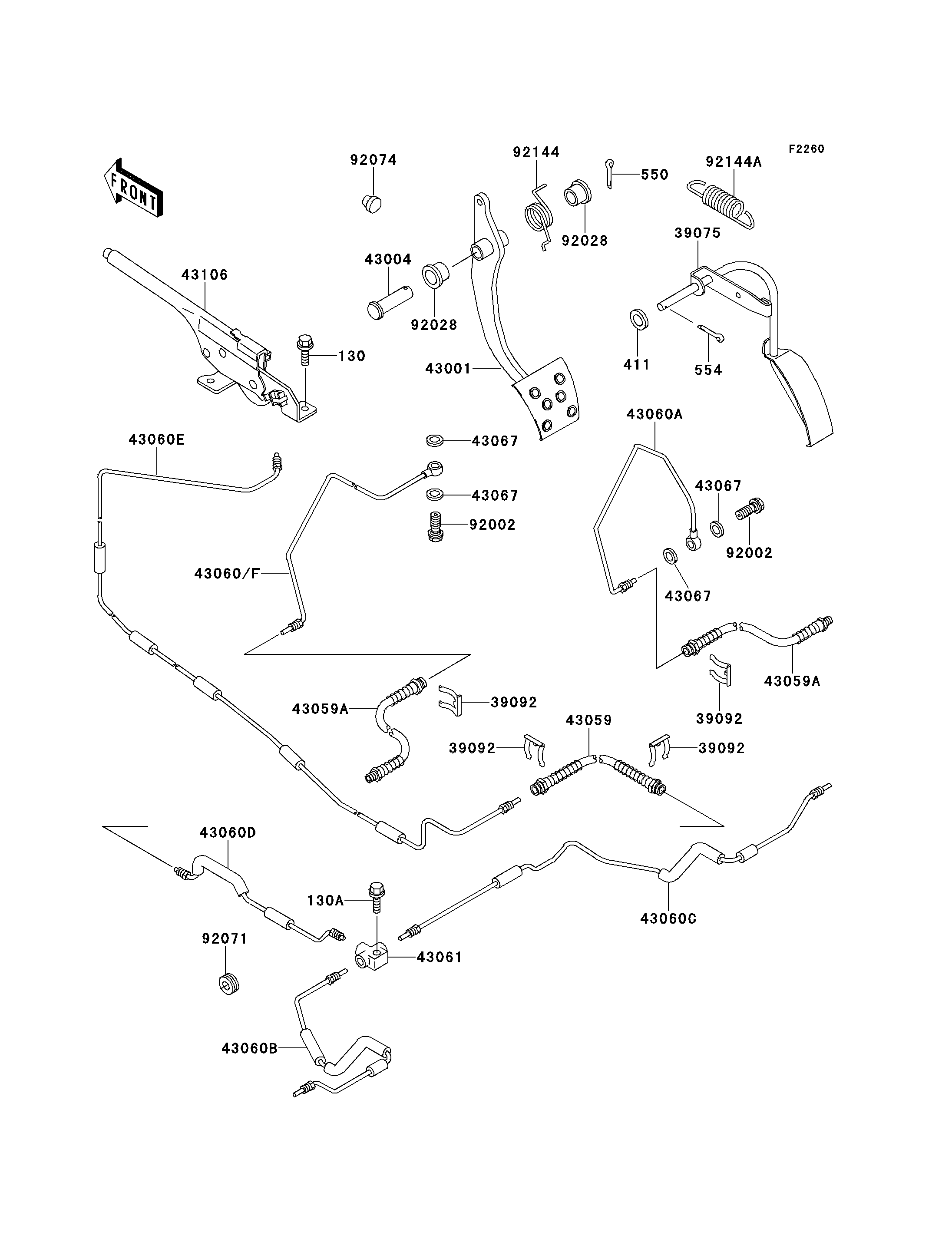

Mule 500 - Brake Pedal/Throttle Lever

DOWNLOAD PDF
SELECT A NEW PART
130
130A
411
550
554
39075
39092
39092
39092
39092
43001
43004
43059
43059A
43059A
43060
43060A
43060B
43060C
43060D
43060E
43061
43067
43067
43067
43067
43106
92002
92002
92028
92028
92071
92074
92144
92144A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0816 2
BOLT-FLANGED,8X30 130A 130D0830 1
WASHER-PLAIN,10MM 411 411E1000 1
PIN-COTTER,2.5X25 550 550D2525 1
PIN-SNAP,10MM 554 554A1000 1
LEVER-THROTTLE 39075 39075-1058 1
PIN-HAIR 39092 39092-1052 4
LEVER-BRAKE,PEDAL 43001 43001-1293 1
SHAFT-BRAKE 43004 43004-1128 1
HOSE-BRAKE,CNT 43059 43059-1665 1
HOSE-BRAKE,FR 43059A 43059-1666 2
PIPE-BRAKE,FR,LH 43060 43060-1077 1
PIPE-BRAKE,FR,RH 43060A 43060-1078 1
PIPE-BRAKE,RR,LH 43060B 43060-1088 1
PIPE-BRAKE,RR,RH 43060C 43060-1089 1
PIPE-BRAKE,RR,CNT 43060D 43060-1090 1
PIPE-BRAKE,FR,CNT 43060E 43060-1091 1
JOINT-BRAKE 43061 43061-1063 1
WASHER,10.5X15X1.5 43067 43067-001 4
LEVER-ASSY-PARKING BRAKE 43106 43106-1001 1
BOLT,OIL,L=23 92002 92002-1888 2
BUSHING 92028 92028-1571 2
GROMMET 92071 92071-1152 1
PLUG,7X2 92074 92074-028 2
SPRING 92144 92144-1536 1
SPRING 92144A 92144-1638 1
