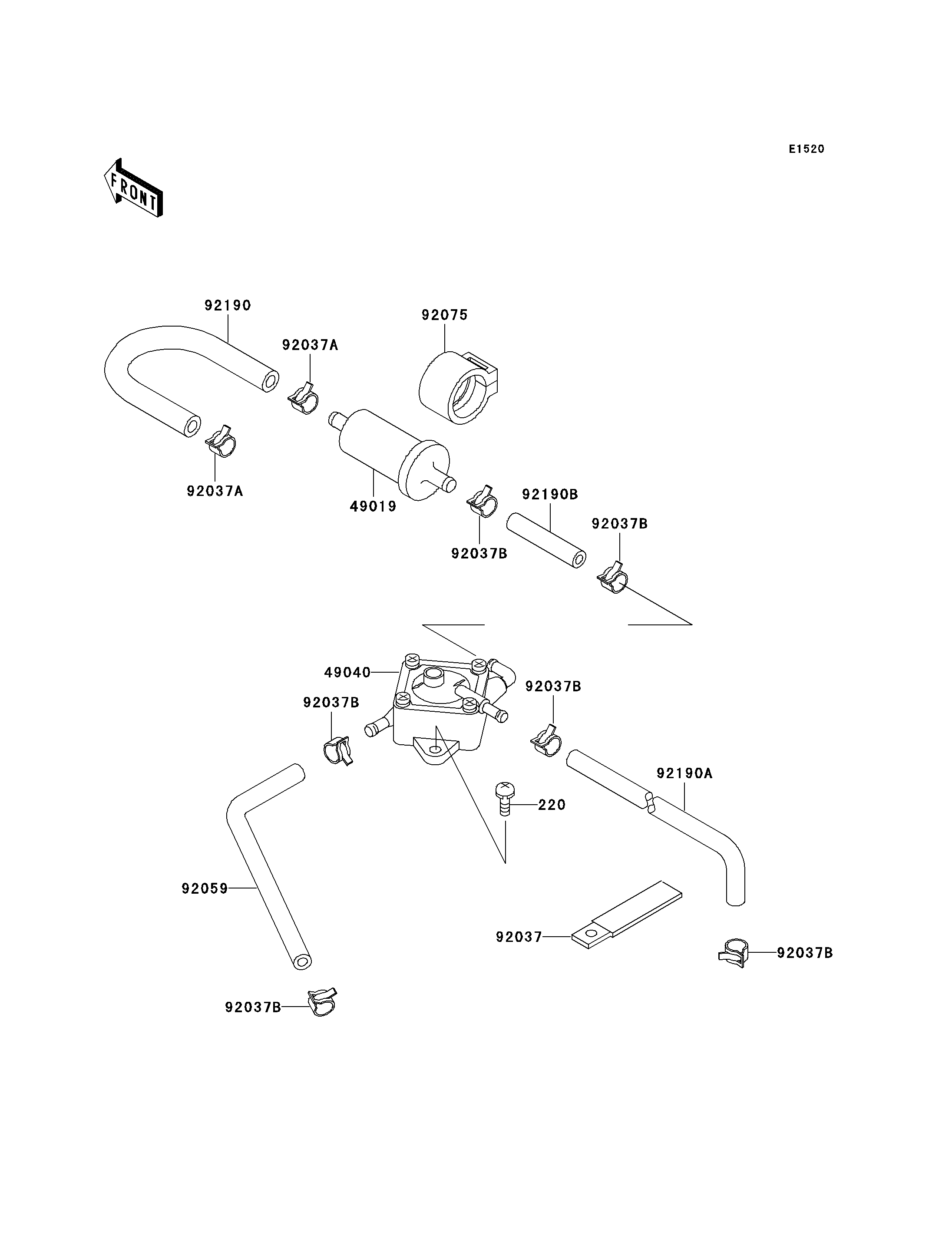

Mule 550 - Fuel Pump

DOWNLOAD PDF
SELECT A NEW PART
220
49019
49040
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037B
92059
92075
92190
92190A
92190B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X14 220 220B0614 2
FILTER-FUEL 49019 49019-1055 1
PUMP-FUEL 49040 49040-2067 1
CLAMP 92037 92037-113 1
CLAMP 92037A 92037-1181 2
CLAMP,TUBE 92037B 92037-1505 6
TUBE,5.8X10.8X215 92059 92059-1295 1
DAMPER,FUEL FILTER 92075 92075-1853 1
TUBE,7.5X3.5X200 92190 92190-1104 1
TUBE 92190A 92190-1179 1
TUBE,5.8X10.8X55 92190B 92190-1180 1
