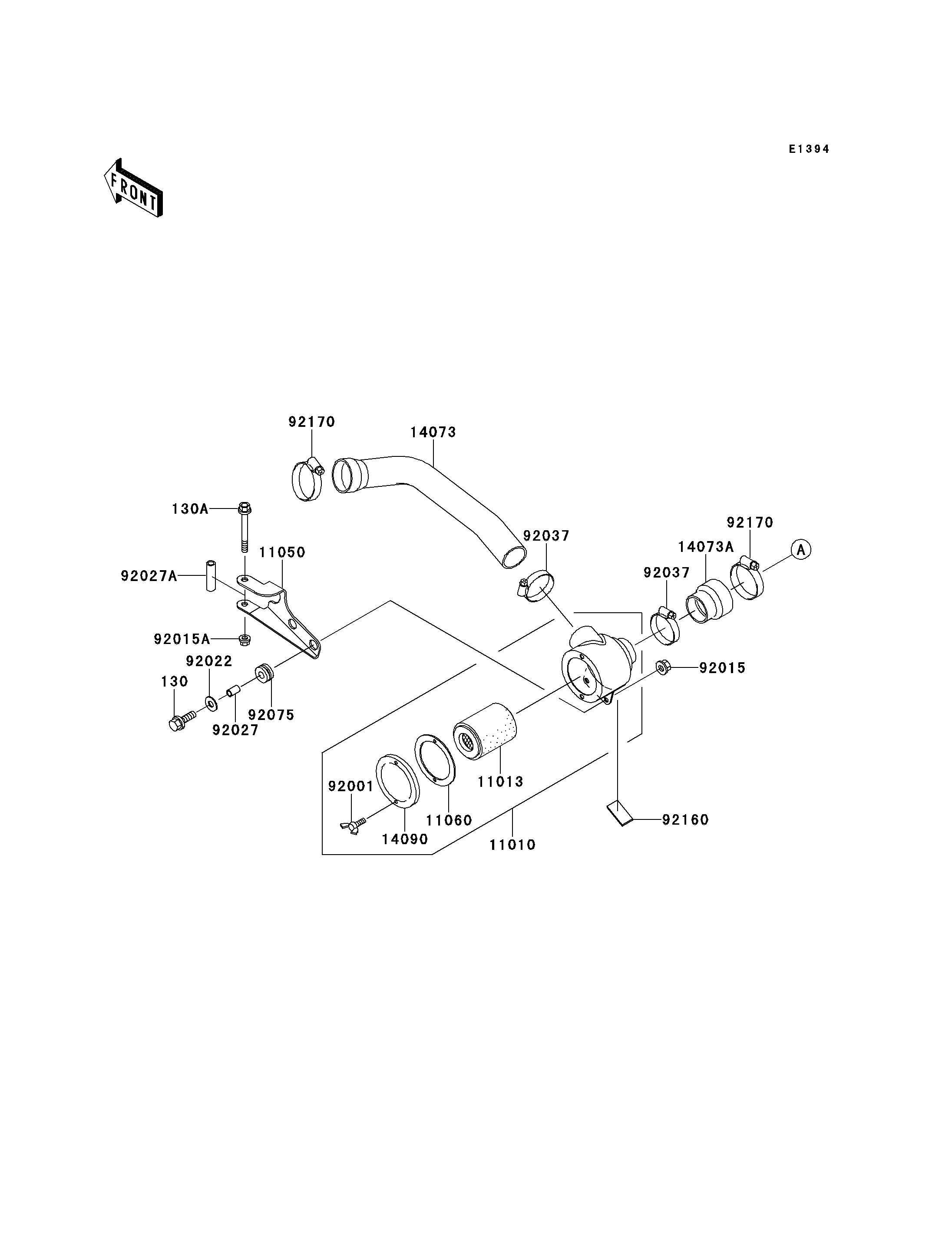

Mule 2510 4X4 - Air Cleaner-bel Con

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11010
11013
11050
11060
14073
14073A
14090
92001
92015
92015A
92022
92027
92027A
92037
92037
92075
92160
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30,BLACK 130 130C0830 2
BOLT-FLANGED 130A 130J1075 1
FILTER-ASSY-AIR 11010 11010-1601 1
ELEMENT-AIR FILTER 11013 11013-1263 1
BRACKET 11050 11050-1404 1
GASKET,AIR FILTER CASE 11060 11060-1765 1
DUCT 14073 14073-1699 1
DUCT 14073A 14073-1700 1
COVER,AIR FILTER 14090 14090-1766 1
BOLT,WING,6X15 92001 92001-1703 2
NUT,8MM 92015 92015-1432 2
NUT,LOCK,10MM 92015A 92015-1522 1
WASHER,9X28X2.3 92022 92022-1632 2
COLLAR,8.8X12X15.5 92027 92027-1081 2
COLLAR 92027A 92027-1738 1
CLAMP 92037 92037-506 2
DAMPER 92075 92075-1736 2
DAMPER 92160 92160-1102 1
CLAMP 92170 92170-1338 2
