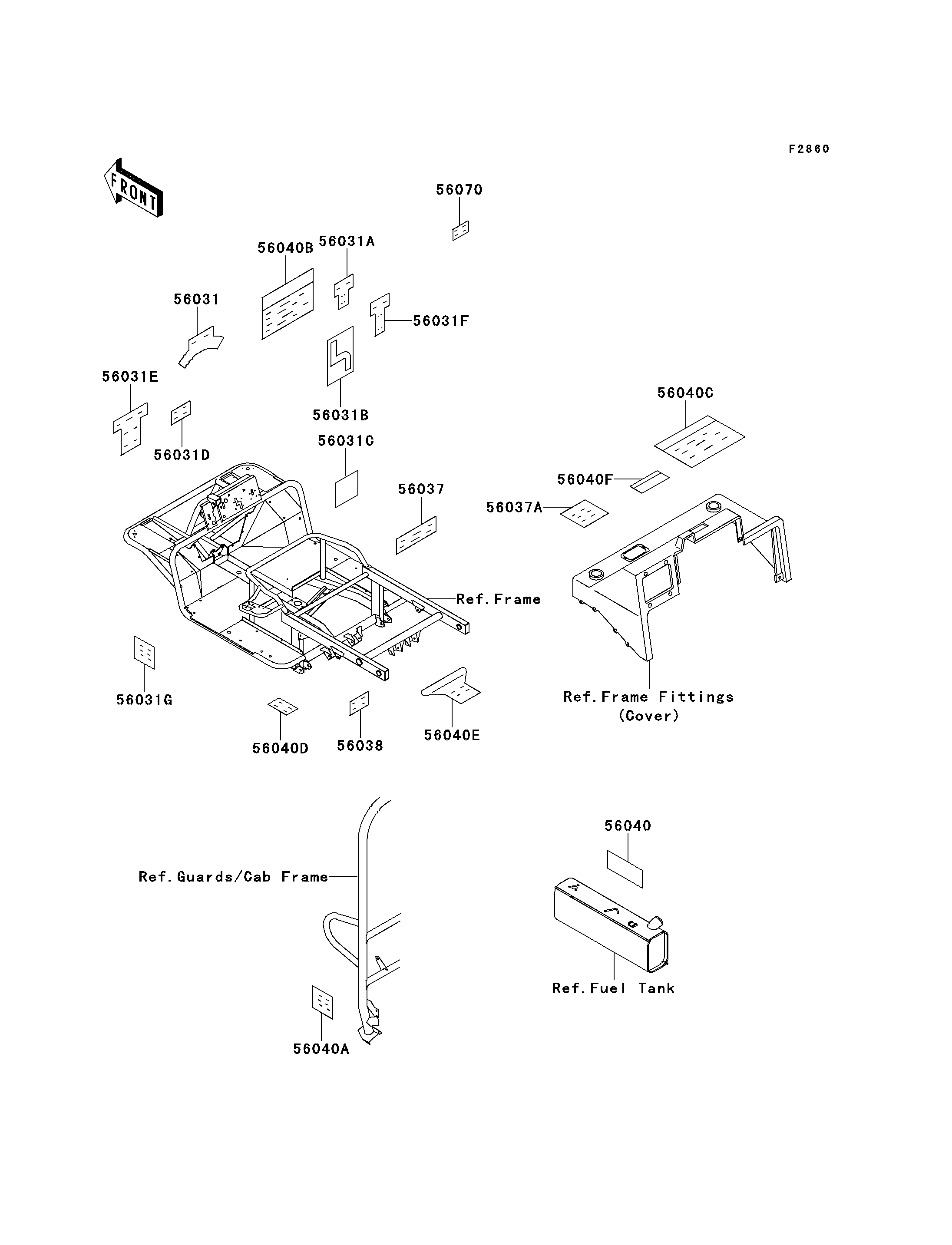

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56031
56031A
56031B
56031C
56031D
56031E
56031F
56031G
56037
56037A
56038
56040
56040A
56040B
56040C
56040D
56040E
56040F
56070
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-MANUAL,IGNITION SWITCH | 56031 | 56031-1740 | 1 | ||
| LABEL-MANUAL,LIGHTING SWITCH | 56031A | 56031-1741 | 1 | ||
| LABEL-MANUAL,SHIFT CONTROL | 56031B | 56031-1742 | 1 | ||
| LABEL-MANUAL,2WD/4WD | 56031C | 56031-1817 | 1 | ||
| LABEL-MANUAL,BRAKE FLUID LEVEL | 56031D | 56031-1818 | 1 | ||
| LABEL-MANUAL,DIFFERENTIAL | 56031E | 56031-1819 | 1 | ||
| LABEL-MANUAL,SPEED | 56031F | 56031-1820 | 1 | ||
| LABEL-MANUAL,FUSE LACATION | 56031G | 56031-1821 | 1 | ||
| LABEL-SPECIFICATION,CARGO BED | 56037 | 56037-1576 | 1 | ||
| LABEL-SPECIFICATION,TIRE INFO | 56037A | 56037-1616 | 1 | ||
| LABEL-BRAND | 56038 | 56038-2782 | 1 | ||
| LABEL-WARNING,FUEL TANK | 56040 | 56040-1241 | 1 | ||
| LABEL-WARNING,BED RAISED | 56040A | 56040-1242 | 1 | ||
| LABEL-WARNING,OFF-HIGHWAY | 56040B | 56040-1317 | 1 | ||
| LABEL-WARNING,GENERAL | 56040C | 56040-1339 | 1 | ||
| LABEL-WARNING,HOT SURFACES | 56040D | 56040-1340 | 1 | ||
| LABEL-WARNING,TRAILER HITCH | 56040E | 56040-1341 | 1 | ||
| LABEL-WARNING,SHIFT CAUTION | 56040F | 56040-1342 | 1 | ||
| LABEL-WARNING,HI-LO LEVER | 56070 | 56070-1169 | 1 |
| LABEL-MANUAL,IGNITION SWITCH | |
| REF # | 56031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,LIGHTING SWITCH | |
| REF # | 56031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,SHIFT CONTROL | |
| REF # | 56031B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,2WD/4WD | |
| REF # | 56031C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,BRAKE FLUID LEVEL | |
| REF # | 56031D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,DIFFERENTIAL | |
| REF # | 56031E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,SPEED | |
| REF # | 56031F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,FUSE LACATION | |
| REF # | 56031G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-SPECIFICATION,CARGO BED | |
| REF # | 56037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-SPECIFICATION,TIRE INFO | |
| REF # | 56037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-BRAND | |
| REF # | 56038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,FUEL TANK | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,BED RAISED | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,OFF-HIGHWAY | |
| REF # | 56040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,GENERAL | |
| REF # | 56040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,HOT SURFACES | |
| REF # | 56040D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,TRAILER HITCH | |
| REF # | 56040E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,SHIFT CAUTION | |
| REF # | 56040F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,HI-LO LEVER | |
| REF # | 56070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
