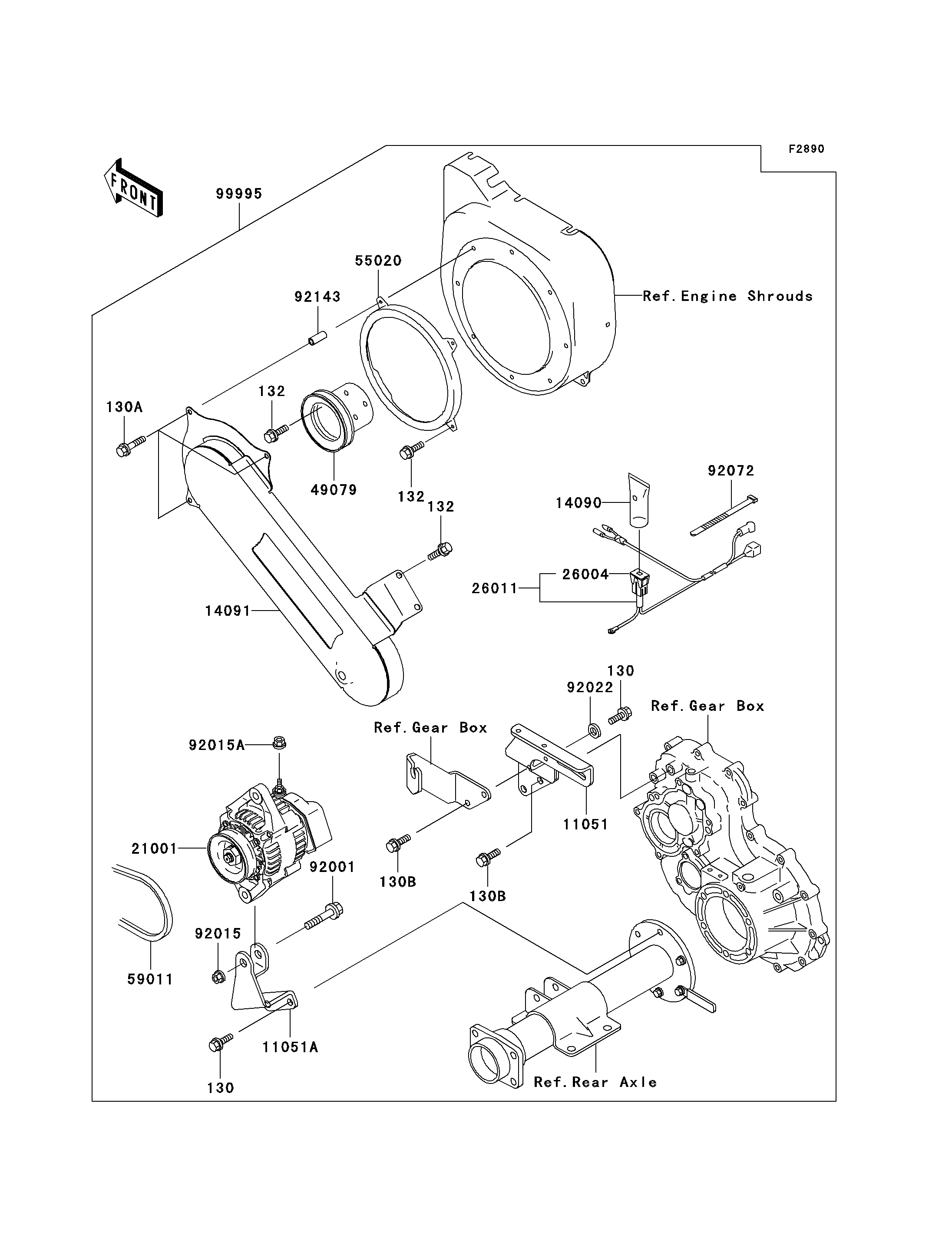

Mule 520 - Optional Parts

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
130B
132
132
132
11051
11051A
14090
14091
21001
26004
26011
49079
55020
59011
92001
92015
92015A
92022
92072
92143
99995
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130H0830 3
BOLT-FLANGED,6X35 130A 130J0635 3
BOLT-FLANGED,8X20 130B 130J0820 4
BOLT-FLANGED-SMALL 132 132J0612 6
BRACKET,GENERATOR,UPP 11051 11051-1359 1
BRACKET,GENERATOR,LWR 11051A 11051-1360 1
COVER,FUSE 14090 14090-1362 1
COVER,PULLEY BELT 14091 14091-1141 1
GENERATOR 21001 21001-1129 1
FUSE-ASSY,50A 26004 26004-1096 1
WIRE-LEAD,GENERATOR 26011 26011-1586 1
PULLEY-BELT 49079 49079-1060 1
GUARD,FLYWHEEL SIDE 55020 55020-2070 1
BELT 59011 59011-1064 1
BOLT,BLACK,10X47 92001 92001-1522 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 1
NUT,FLANGED,6MM 92015A 92015-1367 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 1
BAND,L=123 92072 92072-030 5
COLLAR 92143 92143-1046 3
KIT.,ALTERNATOR 99995 99995-1472 1
