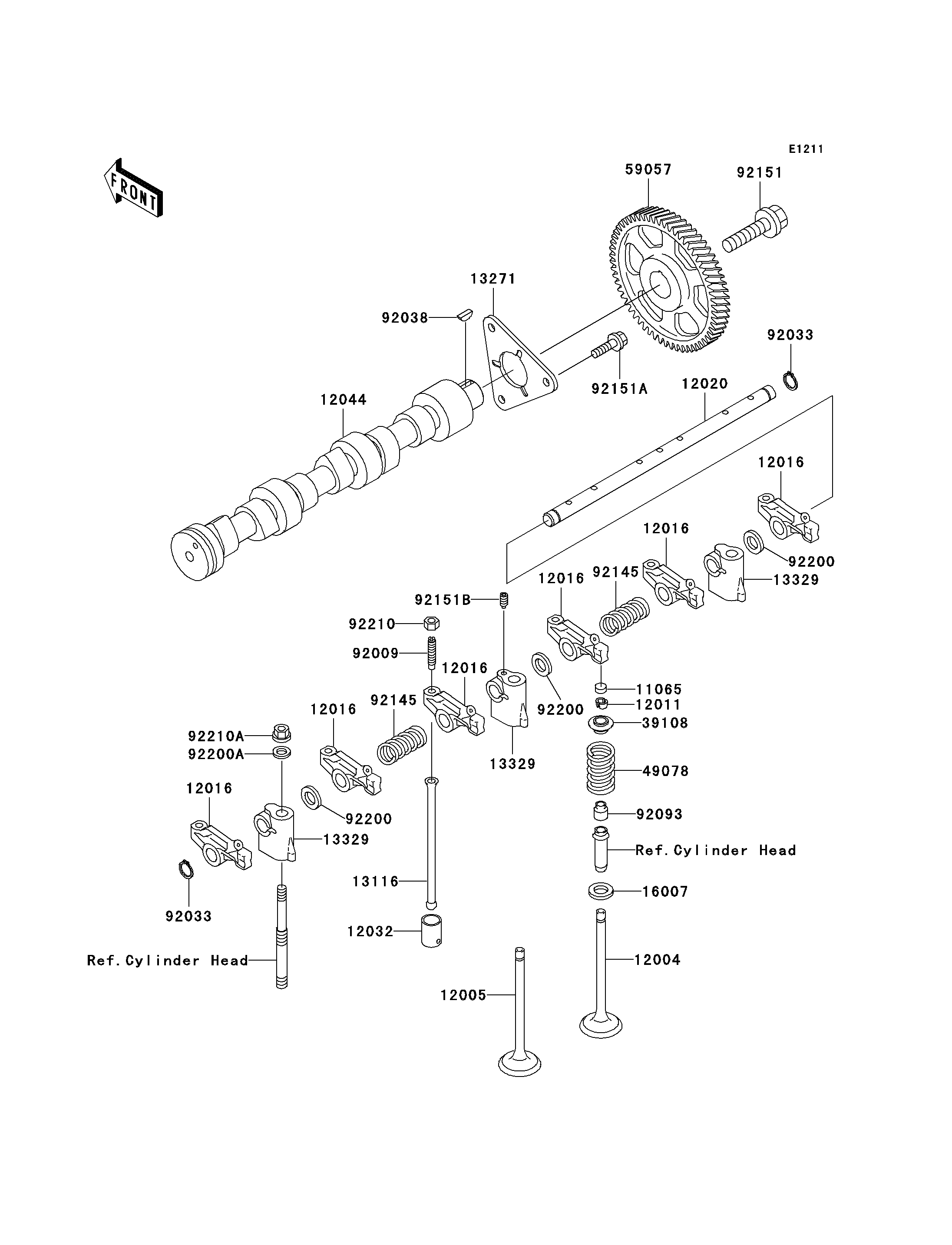

Mule 2510 Diesel - Valve(s)/Camshaft(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
12004
12005
12011
12016
12016
12016
12016
12016
12016
12020
12032
12044
13116
13271
13329
13329
13329
16007
39108
49078
59057
92009
92033
92033
92038
92093
92145
92145
92151
92151A
92151B
92200
92200
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,VALVE STEM 11065 11065-1148 6
VALVE-INTAKE 12004 12004-1145 3
VALVE-EXHAUST 12005 12005-1297 3
COLLET 12011 12011-1054 12
ARM-ROCKER 12016 12016-1120 6
SHAFT-ROCKER 12020 12020-1082 1
TAPPET 12032 12032-1064 6
CAMSHAFT-VALVE 12044 12044-1468 1
ROD-PUSH 13116 13116-1167 6
PLATE 13271 13271-1364 1
SUPPORT,ROCKER SHAFT 13329 13329-1001 3
SEAT-SPRING 16007 16007-1202 6
RETAINER-SPRING 39108 39108-1151 6
SPRING-ENGINE VALVE 49078 49078-1203 6
GEAR-HELICAL,CAMSHAFT 59057 59057-1001 1
SCREW,VALVE ADJUST 92009 92009-1913 6
RING-SNAP 92033 92033-1316 2
KEY 92038 92038-1064 1
SEAL,VALVE STEM 92093 92093-1521 6
SPRING,ROCKER ARM 92145 92145-1288 2
BOLT,10X29 92151 92151-1676 1
BOLT,6X18 92151A 92151-1677 3
BOLT,ROCKER SHAFT SET 92151B 92151-1678 1
WASHER,ROCKER ARM 92200 92200-1501 3
WASHER,8MM 92200A 92200-1502 3
NUT,VALVE ADJUST 92210 92210-1213 6
NUT,8MM 92210A 92210-1214 3
