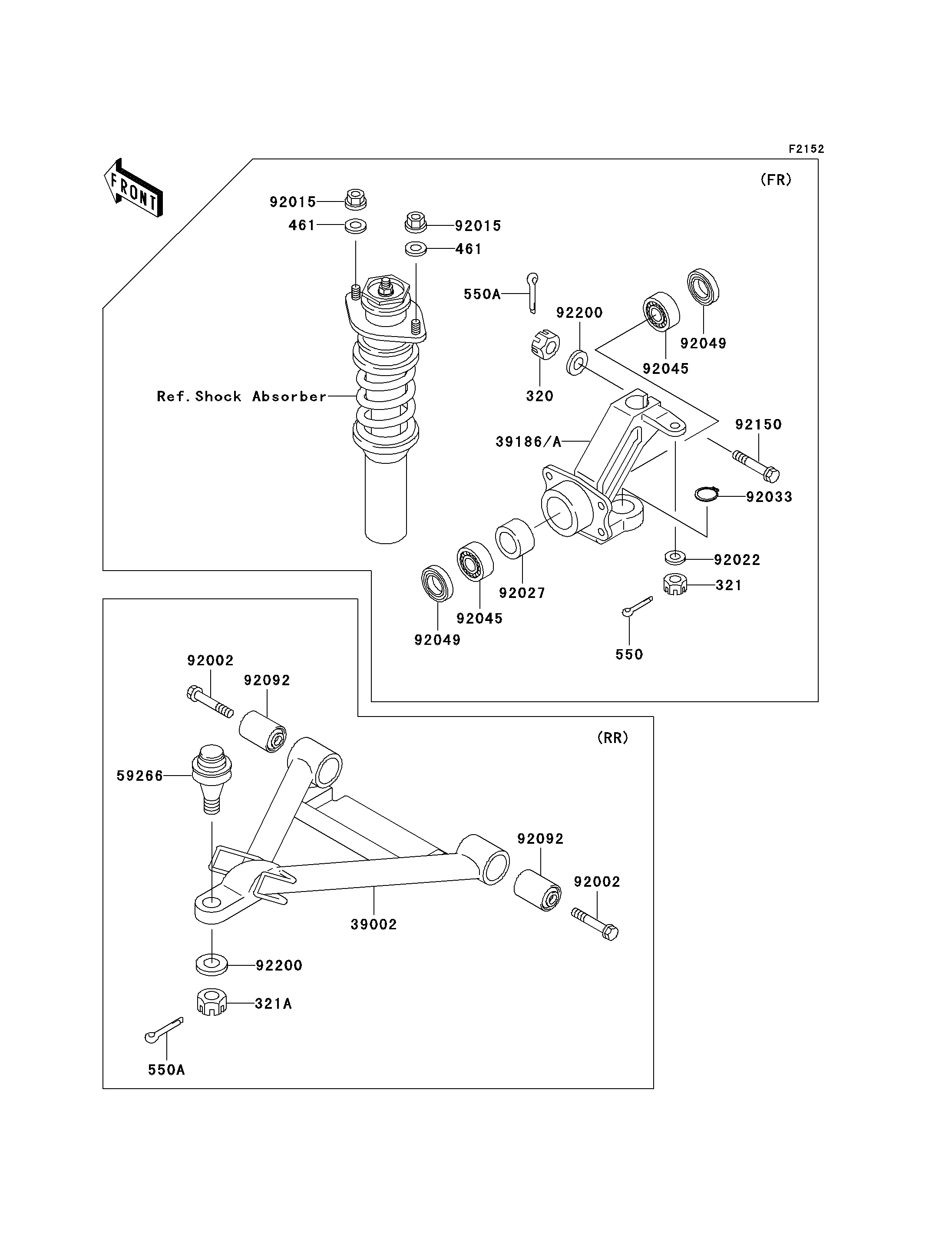

Mule 3010 Diesel 4X4 - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
320
321
321A
461
461
550
550A
550A
39002
39186
39186A
59266
92002
92002
92015
92015
92022
92027
92033
92045
92045
92049
92049
92092
92092
92150
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-CASTLE 320 320G1200 2
NUT-CASTLE 321 321H1000 2
NUT-CASTLE,12MM 321A 321H1200 2
WASHER-SPRING 461 461L1000 4
PIN-COTTER,2.0X22 550 550D2022 2
PIN-COTTER,3.0X25 550A 550D3025 4
ARM-COMP-SUSP 39002 39002-1054 2
KNUCKLE,FR,LH 39186 39186-1096 1
KNUCKLE,FR,RH 39186A 39186-1097 1
JOINT-BALL 59266 59266-1080 2
BOLT,SUSPENSION ROD 92002 92002-1661 4
NUT,FLANGED,10MM 92015 92015-1366 4
WASHER,10.5X18X2.5 92022 92022-1876 2
COLLAR,L=34.5 92027 92027-1538 2
RING-SNAP,C-TYPE,32MM 92033 92033-1262 2
BEARING-BALL 92045 92045-3707 4
SEAL-OIL,SD35X47X7HS 92049 92049-1513 4
BUSHING-RUBBER 92092 92092-1065 4
BOLT,FLANGED,12X72 92150 92150-1356 2
WASHER,12.3X23X2.3 92200 92200-1004 4
