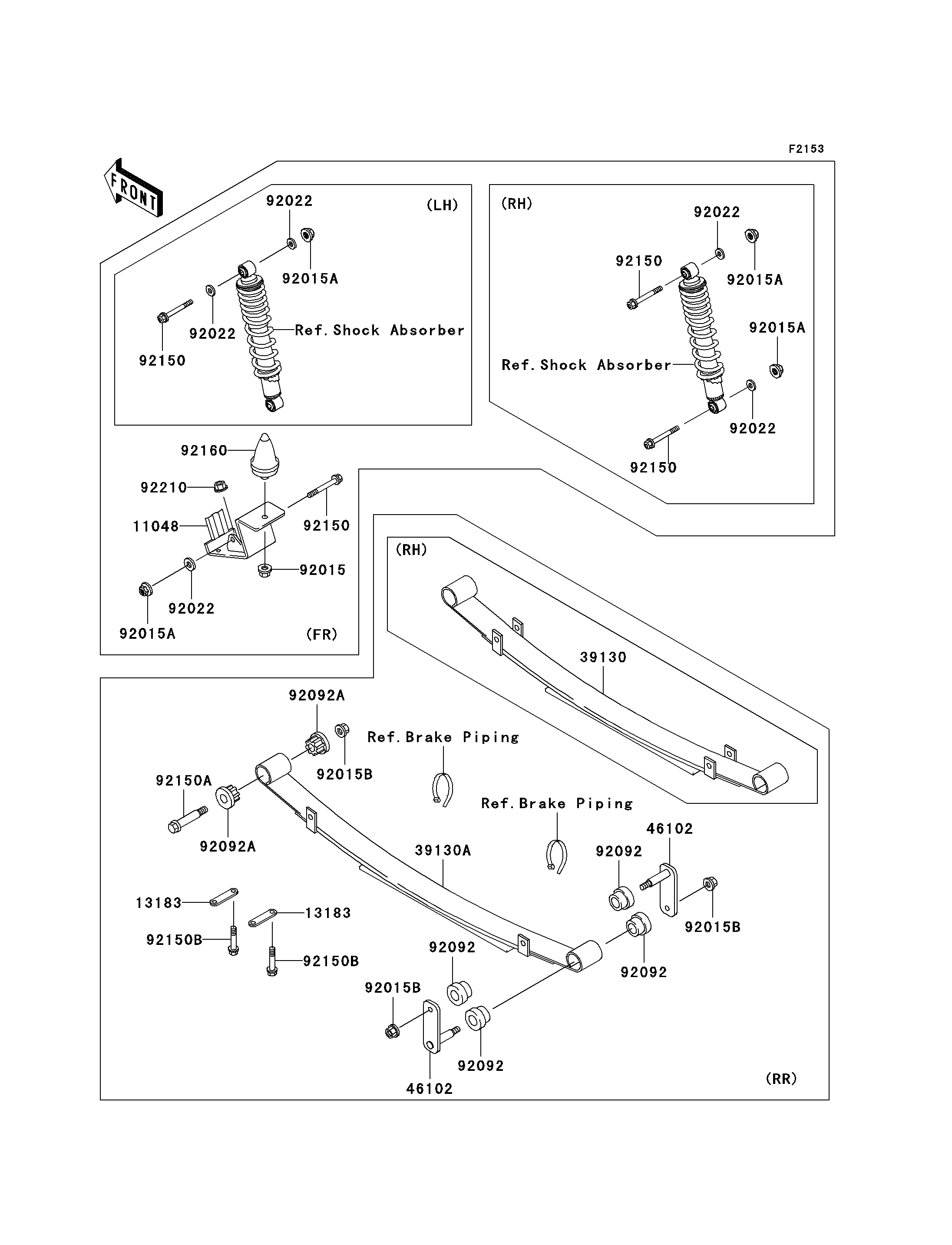

Mule 3010 Diesel 4X4 - Rear Suspension
11048
13183
13183
39130
39130A
46102
46102
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92022
92022
92022
92022
92022
92092
92092
92092
92092
92092A
92092A
92150
92150
92150
92150
92150A
92150B
92150B
92160
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LEAF SPRING | 11048 | 11048-1082 | 2 | ||
| PLATE,LEAF SPRING | 13183 | 13183-1447 | 4 | ||
| SPRING-LEAF | 39130 | 39130-1066 | 1 | ||
| SPRING-LEAF,LH | 39130A | 39130-1077 | 1 | ||
| ROD,LEAF SPRING,RR | 46102 | 46102-1338 | 4 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1335 | 2 | ||
| NUT,LOCK,10MM | 92015A | 92015-1597 | 4 | ||
| NUT,12MM | 92015B | 92015-1706 | 6 | ||
| WASHER,11.5X20.5X1.6 | 92022 | 92022-1768 | 5 | ||
| BUSHING-RUBBER | 92092 | 92092-1083 | 8 | ||
| BUSHING-RUBBER | 92092A | 92092-1084 | 4 | ||
| BOLT,FLANGED,10X57 | 92150 | 92150-1227 | 4 | ||
| BOLT,12MM | 92150A | 92150-1284 | 2 | ||
| BOLT,10X52 | 92150B | 92150-1287 | 8 | ||
| DAMPER,BUMP STOPPER | 92160 | 92160-1136 | 2 | ||
| NUT,LOCK,10MM | 92210 | 92210-1204 | 8 |
