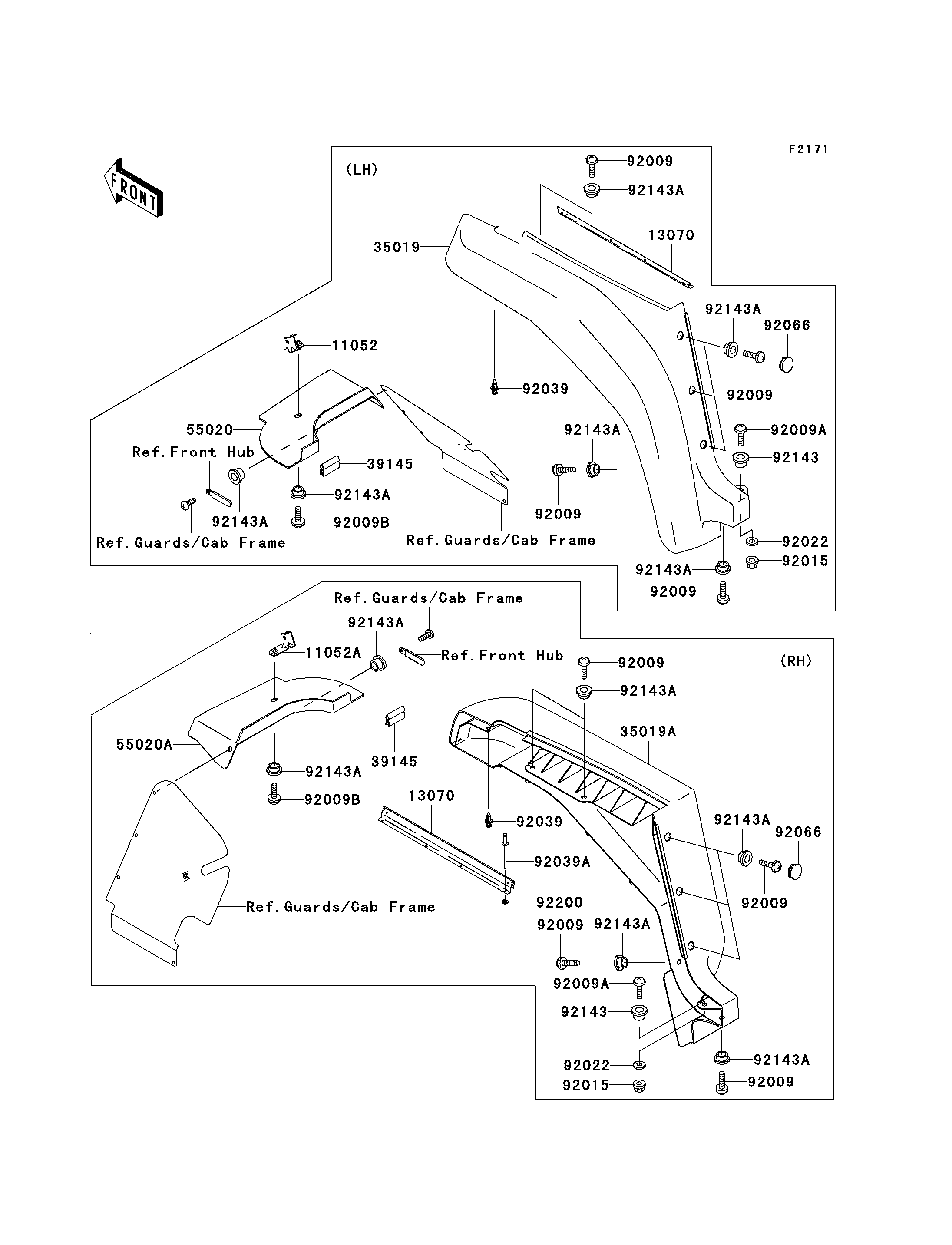

Mule 3010 Diesel 4X4 - Front Fender(s)
11052
11052A
13070
13070
35019
35019A
39145
39145
55020
55020A
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92022
92022
92039
92039
92039A
92066
92066
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LH | 11052 | 11052-1446 | 1 | ||
| BRACKET,RH | 11052A | 11052-1447 | 1 | ||
| GUIDE,FRONT FLAP | 13070 | 13070-1403 | 2 | ||
| FLAP,FR,LH,F.BLACK | 35019 | 35019-7508-6Z | 1 | ||
| FLAP,FR,RH,F.BLACK | 35019A | 35019-7509-6Z | 1 | ||
| TRIM-SEAL,L=45 | 39145 | 39145-1136 | 2 | ||
| GUARD,LWR,LH | 55020 | 55020-1775 | 1 | ||
| GUARD,LWR,RH | 55020A | 55020-1776 | 1 | ||
| SCREW | 92009 | 92009-1166 | 16 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 2 | ||
| SCREW,6X16 | 92009B | 92009-1621 | 2 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 2 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 2 | ||
| RIVET | 92039 | 92039-1229 | 8 | ||
| RIVET | 92039A | 92039-1244 | 8 | ||
| PLUG | 92066 | 92066-1231 | 6 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR | 92143A | 92143-1087 | 20 | ||
| WASHER,3.7X6X1 | 92200 | 92200-7505 | 8 |
