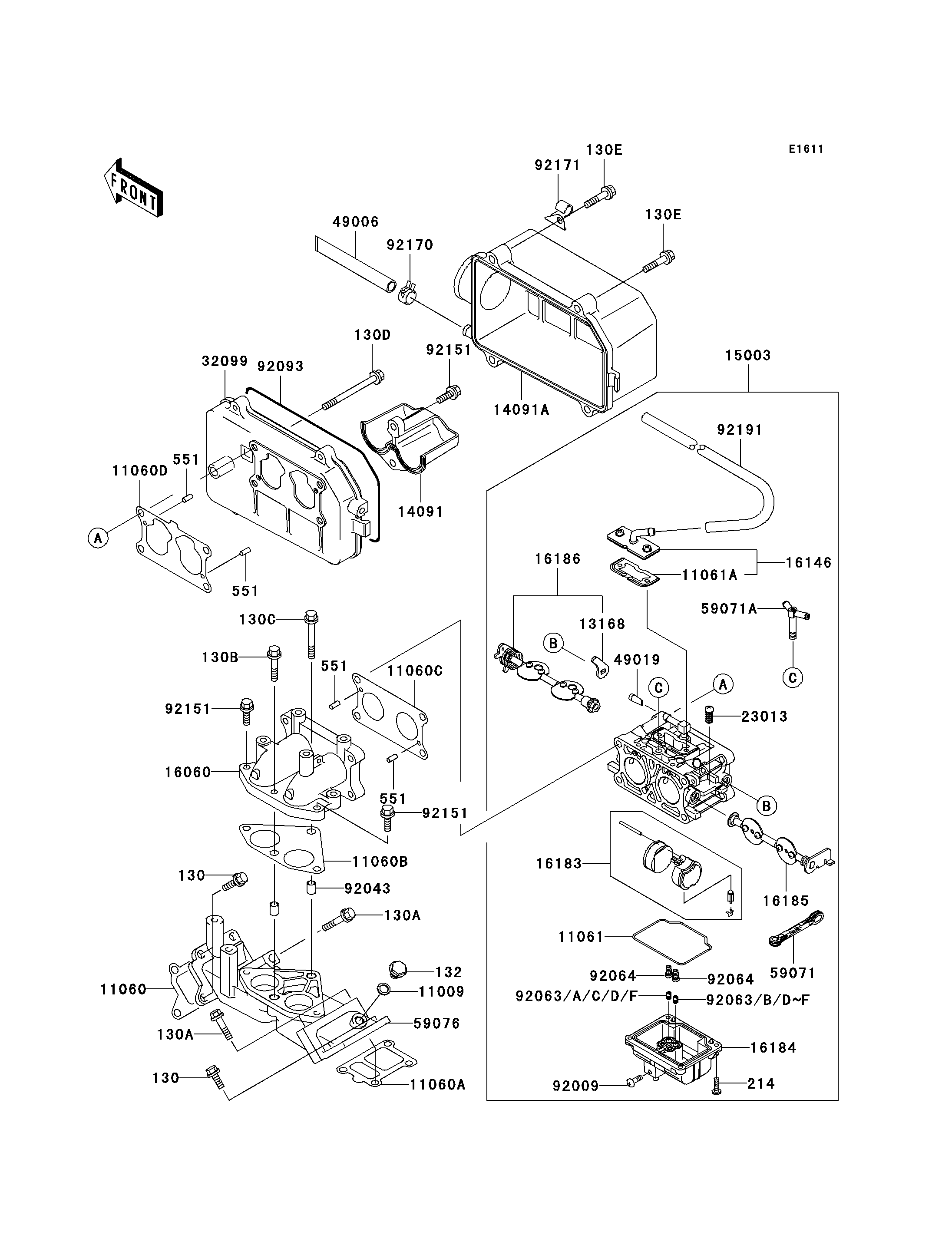

Mule 3010 4x4 Hardwoods Green HD - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
11060D
11060D
11061
11061
11061A
11061A
13168
13168
14091
14091
14091A
14091A
15003
15003
16060
16060
16146
16146
16183
16183
16184
16184
16185
16185
16186
16186
23013
23013
32099
32099
49006
49006
49019
49019
59071
59071
59071A
59071A
59076
59076
92009
92009
92043
92043
92063
92063
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063D
92063D
92063E
92063E
92063F
92063F
92063F
92063F
92064
92064
92064
92064
130
130
130
130
130A
130A
130A
130A
130B
130B
130C
130C
130D
130D
130E
130E
130E
130E
132
132
214
214
551
551
551
551
551
551
551
551
92093
92093
92151
92151
92151
92151
92151
92151
92170
92170
92171
92171
92191
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-3028 1
GASKET,INTAKE MANIFOLD 11060 11060-2087 1
GASKET,INTAKE MANIFOLD 11060A 11060-2088 1
GASKET 11060B 11060-2477 1
GASKET 11060C 11060-2478 1
GASKET 11060D 11060-2479 1
GASKET,CHAMBER 11061 11061-2090 1
GASKET,COVER 11061A 11061-2091 1
LEVER 13168 13168-2473 1
COVER 14091 14091-2067 1
COVER 14091A 14091-2068 1
CARBURETOR-ASSY 15003 15003-2766 1
PIPE-INTAKE 16060 16060-2195 1
COVER-ASSY 16146 16146-2229 1
FLOAT-ASSY 16183 16183-2006 1
CHAMBER-ASSY-FLOAT 16184 16184-2006 1
VALVE-ASSY-THROTTLE 16185 16185-2038 1
VALVE-ASSY-CHOKE 16186 16186-2037 1
SCREW-ASSY 23013 23013-2061 1
CASE 32099 32099-2374 1
BOOT 49006 49006-2053 1
FILTER-FUEL 49019 49019-1093 1
JOINT 59071 59071-2138 1
JOINT 59071A 59071-2139 1
MANIFOLD-INTAKE 59076 59076-2069 1
SCREW,DRAIN 92009 92009-2015 1
PIN,DOWEL,8X10 92043 92043-1302 2
JET-MAIN,#86.3 92063 92063-2363 AR (OPTION)
JET-MAIN,#85 92063A 92063-2376 AR (OPTION)
JET-MAIN,#92.5 92063B 92063-2402 1
JET-MAIN,#90 92063C 92063-2403 1
JET-MAIN,#87.5 92063D 92063-2405 AR (OPTION)
JET-MAIN,#91.3 92063E 92063-2407 AR (OPTION)
JET-MAIN,#88.8 92063F 92063-2413 AR (OPTION)
JET-PILOT 92064 92064-2132 2
BOLT-FLANGED,6X20 130 130B0620 5
BOLT-FLANGED,6X45 130A 130B0645 3
BOLT-FLANGED,6X30 130B 130G0630 1
BOLT-FLANGED,6X40 130C 130G0640 1
BOLT-FLANGED 130D 130G0680 4
BOLT-FLANGED,6X30,BLACK 130E 130J0630 4
BOLT-FLANGED-SMALL 132 132L0812 1
SCREW-PAN+- 214 214B0414 4
PIN-DOWEL 551 551A0410 4
SEAL 92093 92093-2115 1
BOLT,6X20 92151 92151-2138 4
CLAMP 92170 92170-2082 1
CLAMP 92171 92171-2066 1
TUBE 92191 92191-2140 1
