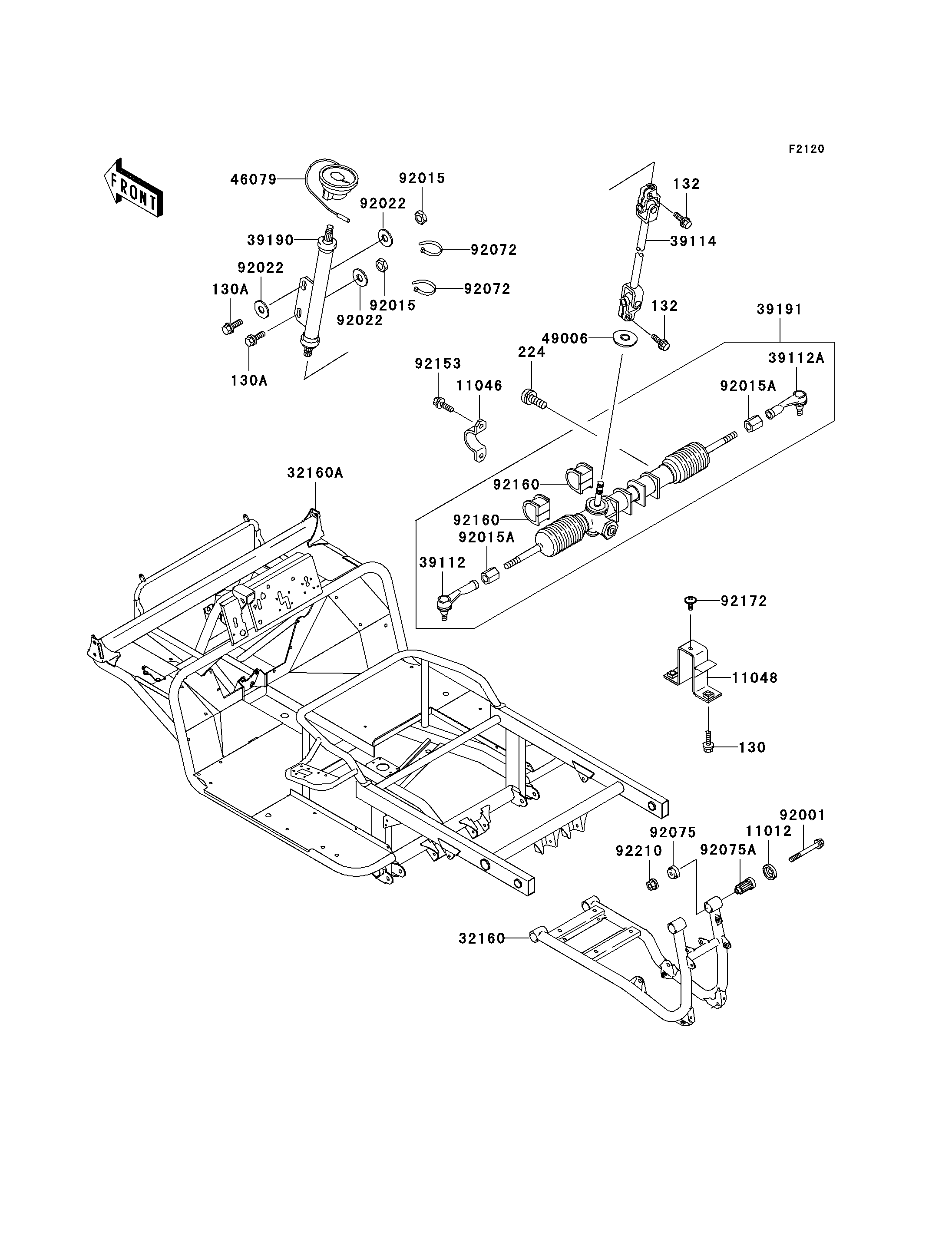

Mule 3010 4x4 Advantage Classic - Frame(H1)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
132
132
224
11012
11046
11048
32160
32160A
39112
39112A
39114
39190
39191
46079
49006
92001
92015
92015
92015A
92015A
92022
92022
92022
92072
92072
92075
92075A
92153
92160
92160
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130J0820 2
BOLT-FLANGED,10X30 130A 130J1030 2
BOLT-FLANGED-SMALL 132 132J0825 2
SCREW-PAN-WP-CROS 224 224B0508 1
CAP,ENGINE BRACKET 11012 11012-1228 4
BRACKET,STEERING GEAR 11046 11046-1858 2
BRACKET,REAR FRAME 11048 11048-1245 1
FRAME-COMP,RR 32160 32160-7506 1
UNAVAILABLE 32160A N/A 1
RODEND-TIE,STEERING GEAR,LH 39112 39112-1068 1
RODEND-TIE,STEERING GEAR,RH 39112A 39112-1069 1
SHAFT-COMP-STRG 39114 39114-1070 1
SHAFT-ASSY-STEERING 39190 39190-1006 1
GEAR-ASSY-STEERING 39191 39191-1007 1
CONTACT,HORN SWITCH 46079 46079-1063 1
BOOT,STEERING SHAFT,LWR 49006 49006-1255 1
BOLT,FLANGED,10X85 92001 92001-1619 4
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT 92015A 92015-1864 2
WASHER,10.5X26X2.3,BLACK 92022 92022-1396 3
BAND,L=188 92072 92072-1239 2
DAMPER,ENGINE MOUNT,SIDE 92075 92075-1274 4
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1377 4
BOLT,SOCKET,10X23 92153 92153-1269 4
DAMPER,STEERING GEAR 92160 92160-1084 2
SCREW,6X14 92172 92172-0004 1
NUT,LOCK,FLANGED,10MM 92210 92210-1081 4
