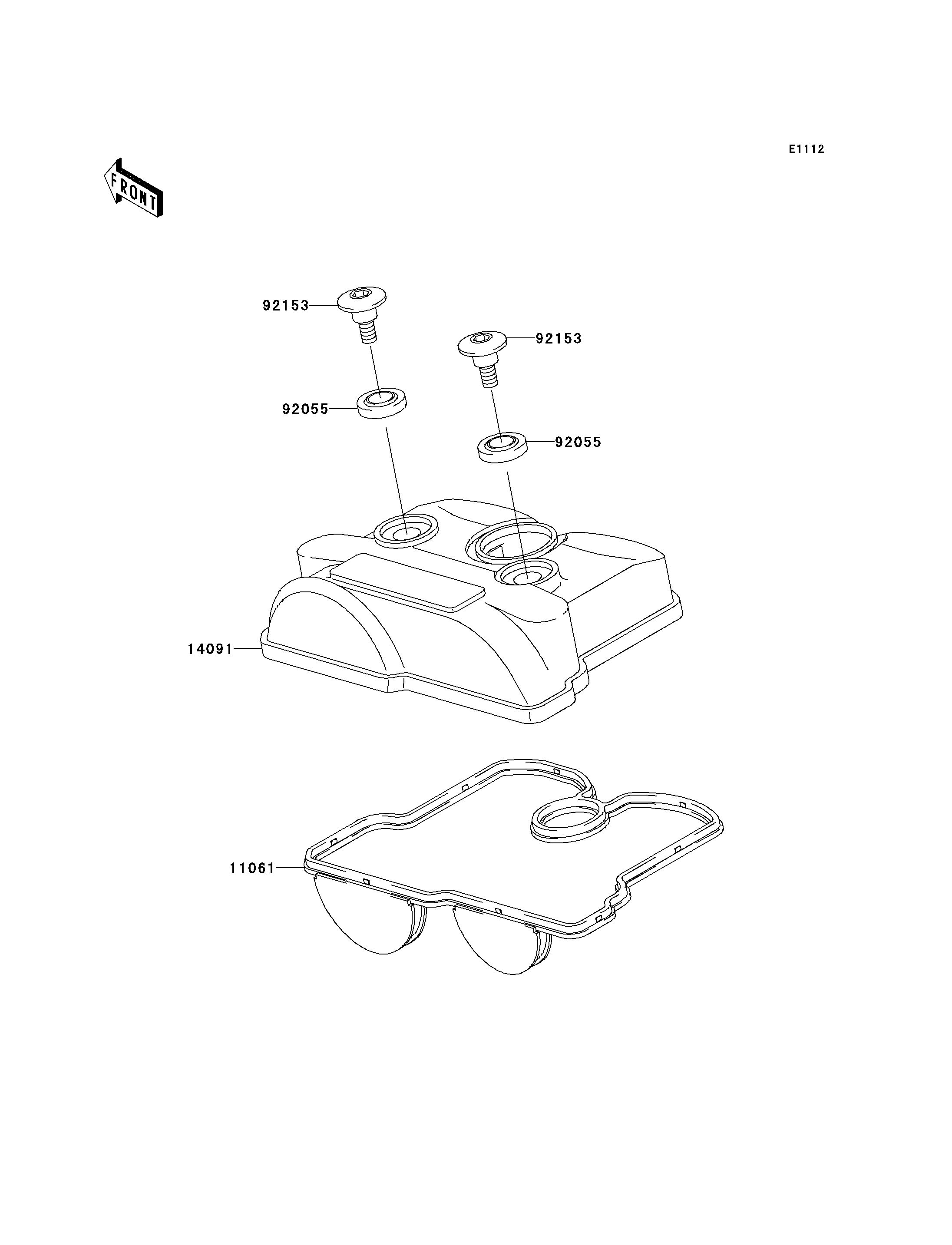

11061
14091
92055
92055
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD COVER 11061 11061-0024 1
COVER,CYLINDER HEAD 14091 14091-0058 1
RING-O,HEAD COVER BOLT 92055 92055-1352 2
BOLT,SOCKET,6MM 92153 92153-1181 2
