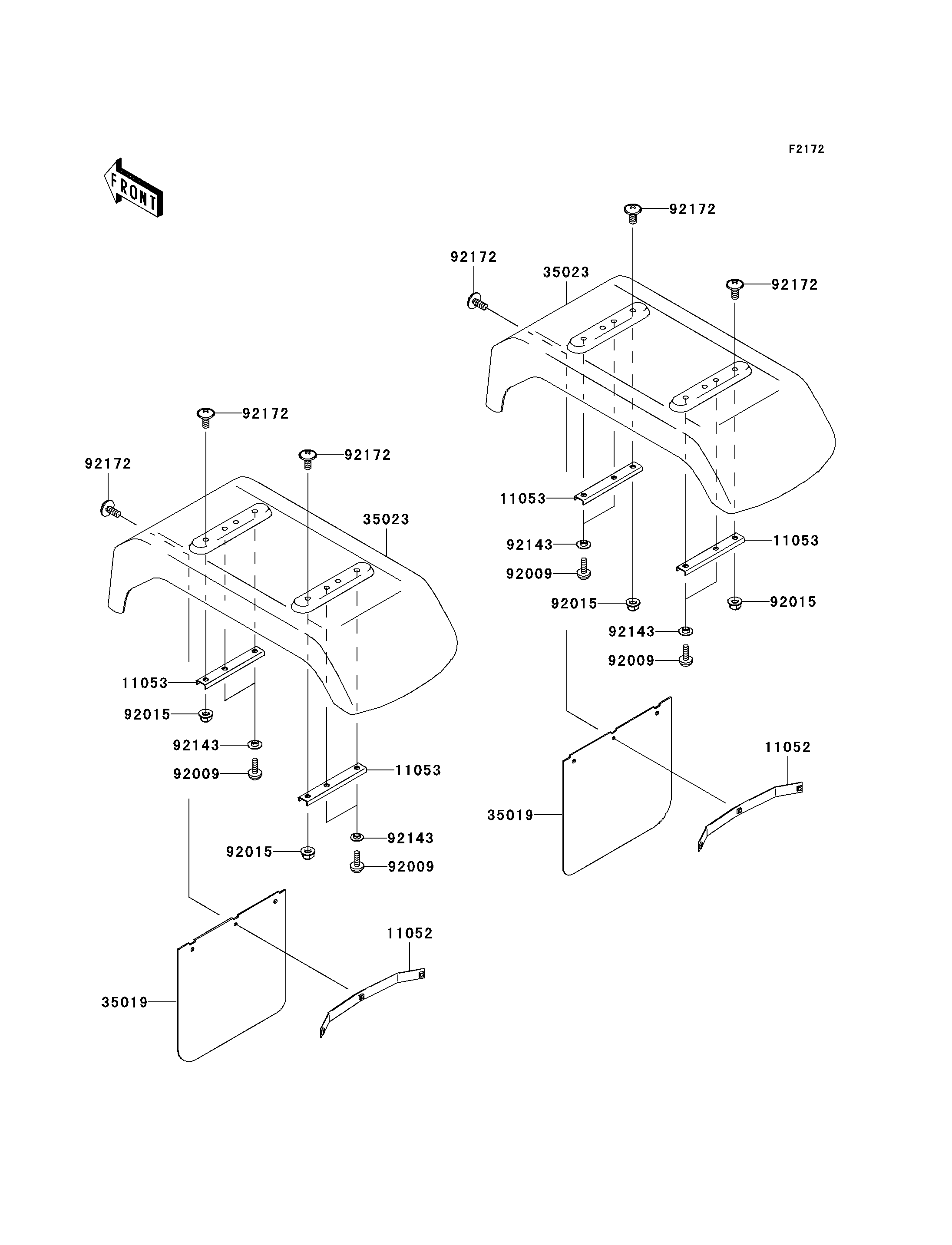

Parts Diagrams |
11052
11052
11053
11053
11053
11053
35019
35019
35023
35023
92009
92009
92009
92009
92015
92015
92015
92015
92143
92143
92143
92143
92172
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REAR FLAP | 11052 | 11052-1313 | 2 | ||
| BRACKET,RR FENDER | 11053 | 11053-7558 | 4 | ||
| FLAP,REAR FENDER | 35019 | 35019-1244 | 2 | ||
| FENDER-REAR | 35023 | 35023-1557 | 2 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 4 | ||
| COLLAR | 92143 | 92143-1087 | 8 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 10 |
