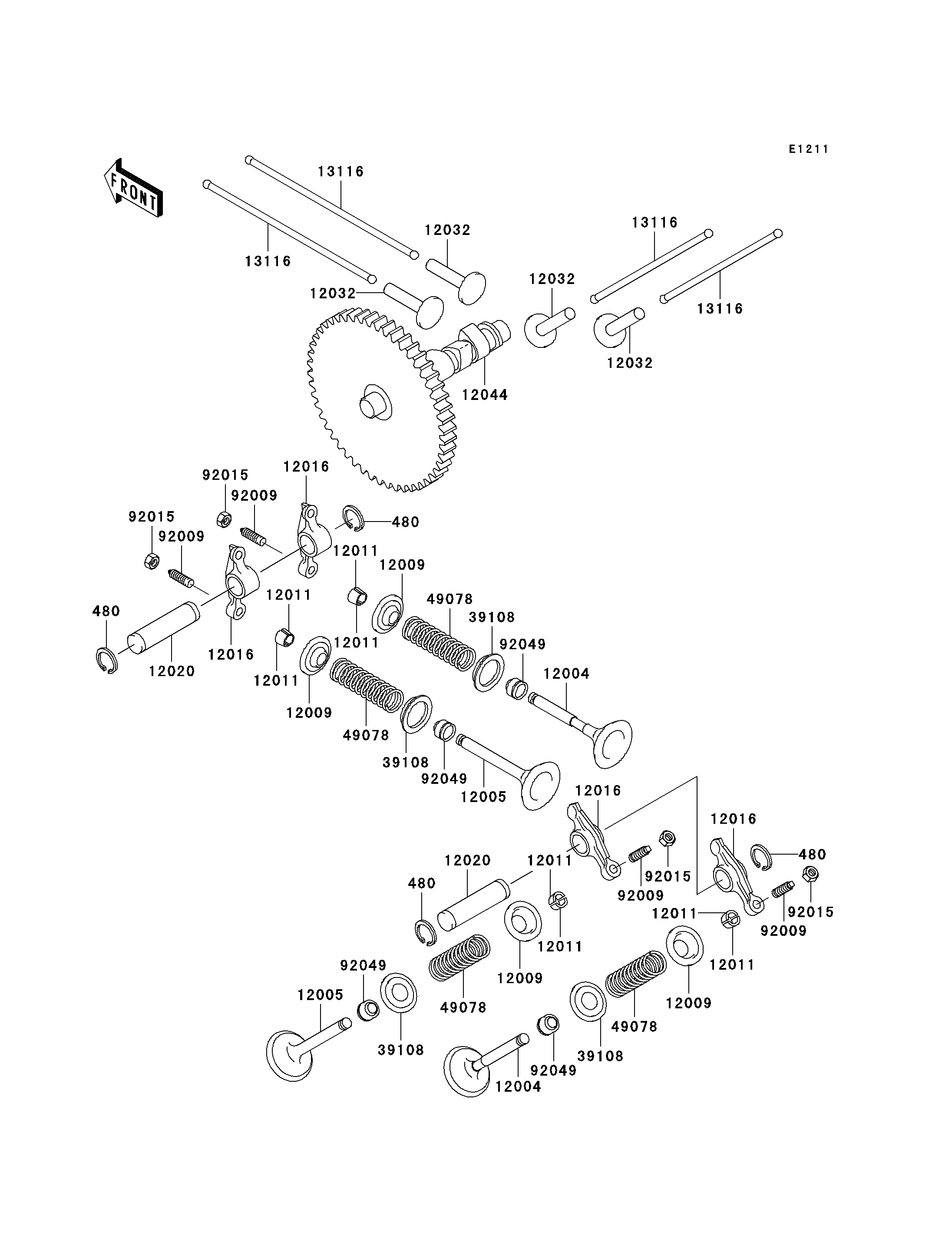

Mule 3010 Trans4x4 Hardwoods Green HD - Valve(s)/Camshaft(s)
480
480
480
480
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12011
12011
12011
12011
12016
12016
12016
12016
12020
12020
12032
12032
12032
12032
12044
13116
13116
13116
13116
39108
39108
39108
39108
49078
49078
49078
49078
92009
92009
92009
92009
92015
92015
92015
92015
92049
92049
92049
92049
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,12MM | 480 | 480J1200 | 4 | ||
| VALVE-INTAKE | 12004 | 12004-2115 | 2 | ||
| VALVE-EXHAUST | 12005 | 12005-2093 | 2 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-2067 | 4 | ||
| COLLET | 12011 | 12011-2056 | 8 | ||
| ARM-ROCKER | 12016 | 12016-2056 | 4 | ||
| SHAFT-ROCKER | 12020 | 12020-2059 | 2 | ||
| TAPPET | 12032 | 12032-2064 | 4 | ||
| CAMSHAFT-VALVE | 12044 | 12044-2239 | 1 | ||
| ROD-PUSH | 13116 | 13116-2057 | 4 | ||
| RETAINER-SPRING | 39108 | 39108-2057 | 4 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-2082 | 4 | ||
| SCREW,VALVE ADJUST | 92009 | 92009-1109 | 4 | ||
| NUT,VALVE ADJUST LOCK | 92015 | 92015-1137 | 4 | ||
| SEAL-OIL | 92049 | 92049-2109 | 4 |
| CIRCLIP-TYPE-C,12MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| VALVE-INTAKE | |
| REF # | 12004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RETAINER-VALVE SPRING | |
| REF # | 12009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLET | |
| REF # | 12011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER | |
| REF # | 12016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ROCKER | |
| REF # | 12020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TAPPET | |
| REF # | 12032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-VALVE | |
| REF # | 12044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RETAINER-SPRING | |
| REF # | 39108 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING-ENGINE VALVE | |
| REF # | 49078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,VALVE ADJUST | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,VALVE ADJUST LOCK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
