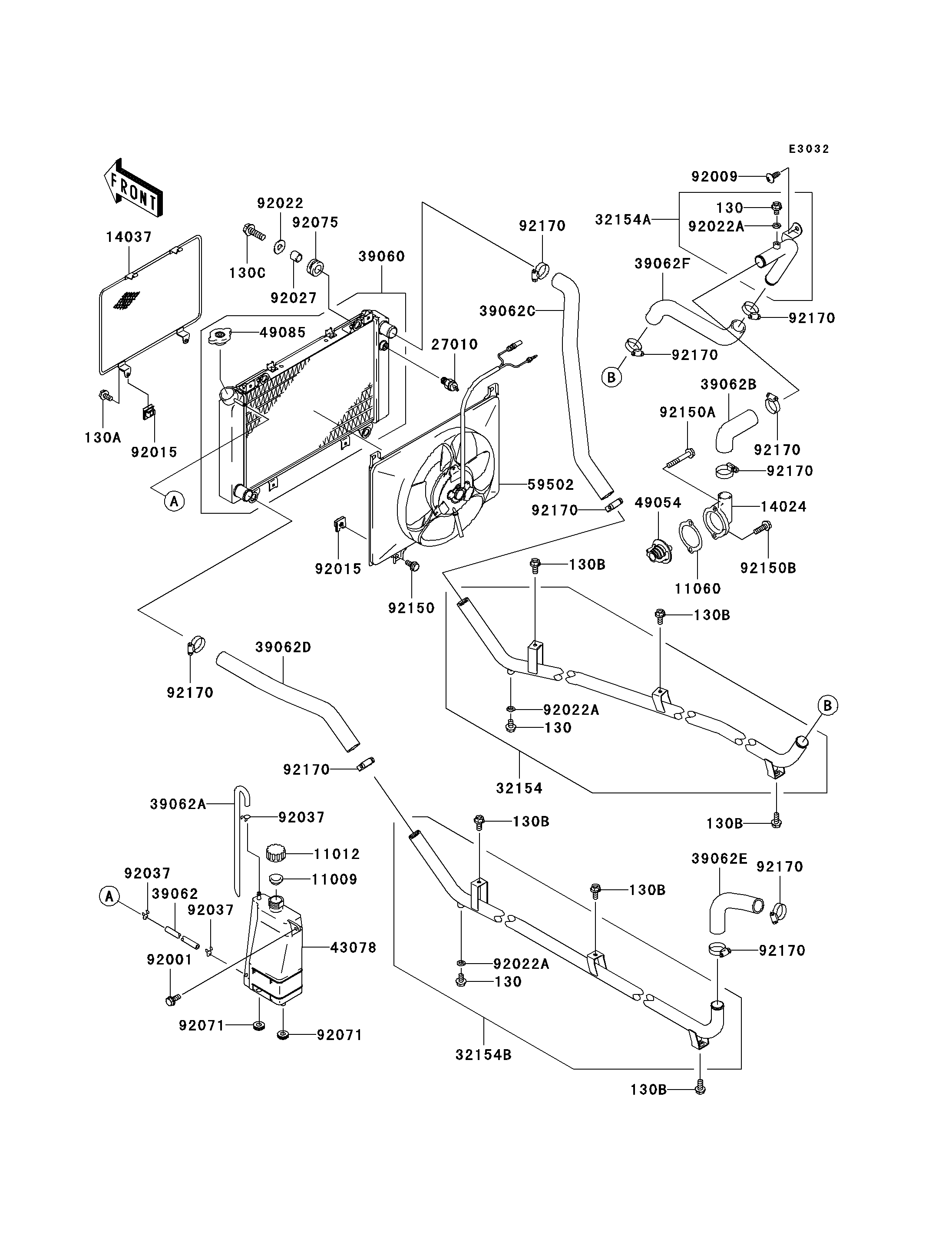

Mule 3010 Trans4x4 Hardwoods Green HD - Radiator
130
130
130
130A
130B
130B
130B
130B
130B
130B
130C
11009
11012
11060
14024
14037
27010
32154
32154A
32154B
39060
39062
39062A
39062B
39062C
39062D
39062E
39062F
43078
49054
49085
59502
92001
92009
92015
92015
92022
92022A
92022A
92022A
92027
92037
92037
92037
92071
92071
92075
92150
92150A
92150B
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10,BLACK | 130 | 130J0610 | 3 | ||
| BOLT-FLANGED | 130A | 130J0612 | 2 | ||
| BOLT-FLANGED,6X14,BLACK | 130B | 130J0614 | 6 | ||
| BOLT-FLANGED,8X25,BLACK | 130C | 130J0825 | 4 | ||
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| GASKET,THERMOSTAT COVER | 11060 | 11060-2084 | 1 | ||
| COVER,THERMOSTAT | 14024 | 14024-2293 | 1 | ||
| SCREEN | 14037 | 14037-1284 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1317 | 1 | ||
| PIPE,RH FR | 32154 | 32154-7503 | 1 | ||
| PIPE,RH RR | 32154A | 32154-7505 | 1 | ||
| PIPE,LH | 32154B | 32154-7507 | 1 | ||
| RADIATOR | 39060 | 39060-1187 | 1 | ||
| HOSE-COOLING,5.5X10.5X600 | 39062 | 39062-1829 | 1 | ||
| HOSE-COOLING,DRAIN | 39062A | 39062-1830 | 1 | ||
| HOSE-COOLING | 39062B | 39062-1832 | 1 | ||
| HOSE-COOLING | 39062C | 39062-1834 | 1 | ||
| HOSE-COOLING | 39062D | 39062-1835 | 1 | ||
| HOSE-COOLING | 39062E | 39062-1836 | 1 | ||
| HOSE-COOLING | 39062F | 39062-7502 | 1 | ||
| RESERVOIR | 43078 | 43078-1185 | 1 | ||
| THERMOSTAT | 49054 | 49054-2056 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| FAN-ASSY | 59502 | 59502-1137 | 1 | ||
| BOLT,W/P,6X16 | 92001 | 92001-1860 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 1 | ||
| NUT | 92015 | 92015-1487 | 6 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 4 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 3 | ||
| COLLAR,8.8X12X10.7 | 92027 | 92027-102 | 4 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER | 92075 | 92075-294 | 4 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 4 | ||
| BOLT,6X40 | 92150A | 92150-2230 | 1 | ||
| BOLT,6X20 | 92150B | 92150-2231 | 1 | ||
| CLAMP,COOLING HOSE | 92170 | 92170-1284 | 10 |
