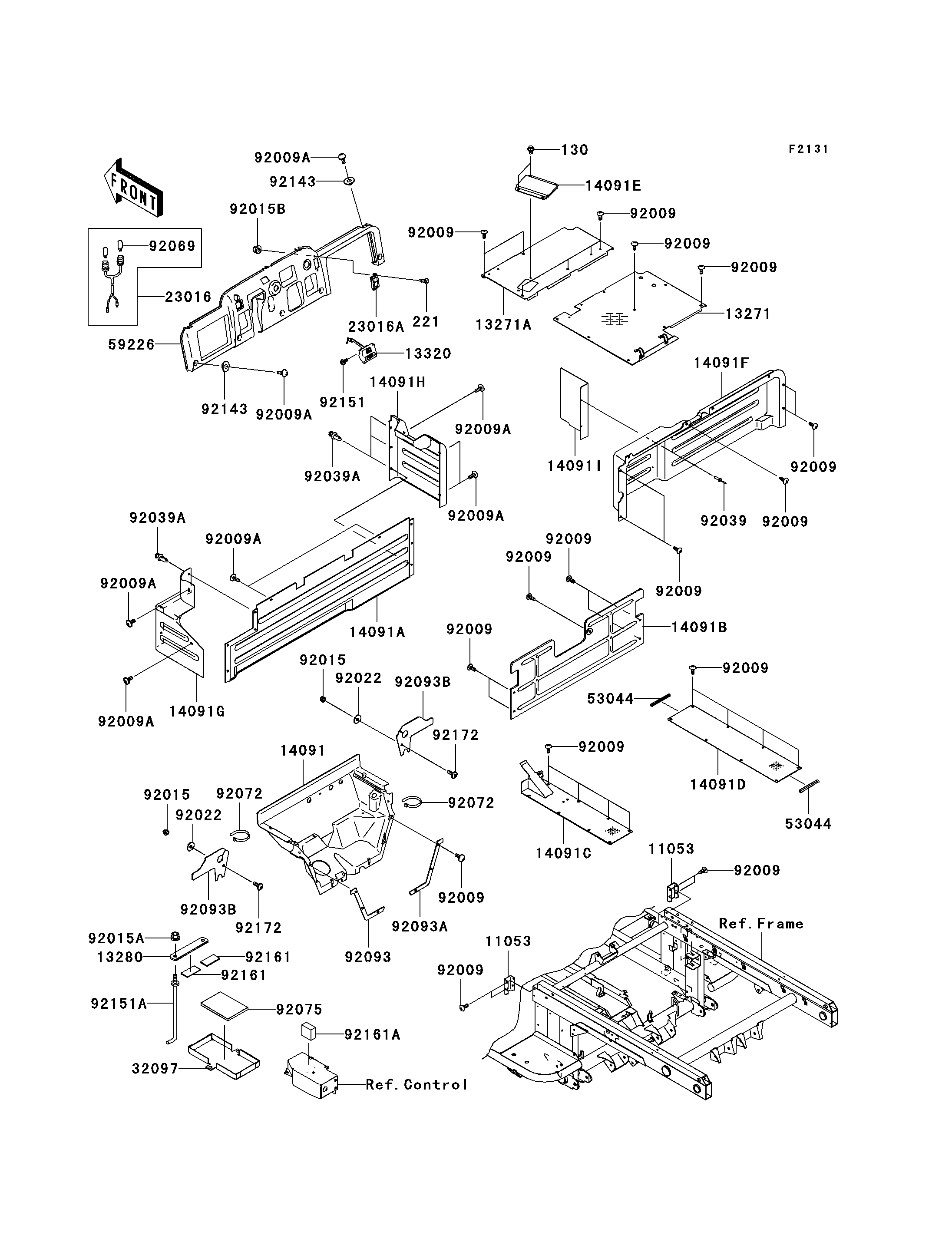

Mule 3010 Trans4x4 Hardwoods Green HD - Frame Fittings
11053
11053
11053
11053
13271
13271
13271A
13271A
13280
13280
13320
13320
14091
14091
14091A
14091A
14091B
14091B
14091C
14091C
14091D
14091D
14091E
14091E
14091F
14091F
14091G
14091G
14091H
14091H
14091I
14091I
23016
23016
23016A
23016A
32097
32097
53044
53044
53044
53044
59226
59226
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92022
92022
92022
92022
92039
92039
92039A
92039A
92039A
92039A
92069
92069
92072
92072
92072
92072
92075
92075
92093
92093
92093A
92093A
92093B
92093B
92093B
92093B
92143
92143
92143
92143
92151
92151
92151A
92151A
92161
92161
92161
92161
92161A
92161A
92172
92172
92172
92172
130
130
221
221
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,PUMP BREEZER COVER | 11053 | 11053-7539 | 2 | ||
PLATE,FLOOR,RH | 13271 | 13271-7573 | 1 | ||
PLATE,FLOOR,RH | 13271A | 13271-7576 | 1 | ||
HOLDER,BATTERY | 13280 | 13280-7505 | 1 | ||
LEVER-ASSY | 13320 | 13320-1016 | 1 | ||
COVER,FLOOR | 14091 | 14091-1378 | 1 | ||
COVER,FRONT SEAT,CNT | 14091A | 14091-7531 | 1 | ||
COVER,REAR SEAT,LWR | 14091B | 14091-7532 | 1 | ||
COVER,FLOOR,CNT,FR | 14091C | 14091-7534 | 1 | ||
COVER,FLOOR,CNT,RR | 14091D | 14091-7535 | 1 | ||
COVER | 14091E | 14091-7536 | 1 | ||
COVER,FRONT SEAT,RR,LWR | 14091F | 14091-7540 | 1 | ||
COVER,FRONT SEAT,LH | 14091G | 14091-7541 | 1 | ||
COVER,FRONT SEAT,RH | 14091H | 14091-7542 | 1 | ||
COVER,FUEL TANK | 14091I | 14091-7543 | 1 | ||
LAMP-ASSY,INDICATOR | 23016 | 23016-1188 | 1 | ||
LAMP-ASSY | 23016A | 23016-1189 | 1 | ||
CASE-BATTERY | 32097 | 32097-7501 | 1 | ||
TRIM,L=111 | 53044 | 53044-7502 | 2 | ||
PANEL-CONTROL,W.D.BROWN | 59226 | 59226-7502-389 | 1 | ||
SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 53 | ||
SCREW,6X16 | 92009A | 92009-1621 | 16 | ||
NUT,6MM | 92015 | 92015-1386 | 2 | ||
NUT,FLANGED,8MM | 92015A | 92015-1406 | 2 | ||
NUT,LOCK,FLANGED,6MM | 92015B | 92015-1603 | 2 | ||
WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 2 | ||
RIVET | 92039 | 92039-1150 | 2 | ||
RIVET | 92039A | 92039-1229 | 7 | ||
BULB,12V 3W,T7 | 92069 | 92069-1020 | 2 | ||
BAND,L=365 | 92072 | 92072-1197 | 2 | ||
DAMPER | 92075 | 92075-1076 | 1 | ||
SEAL,FRONT FENDER,LH | 92093 | 92093-1293 | 1 | ||
SEAL,FRONT FENDER,RH | 92093A | 92093-1294 | 1 | ||
SEAL,LOWER COVER | 92093B | 92093-1295 | 2 | ||
COLLAR | 92143 | 92143-1087 | 9 | ||
BOLT,5X12 | 92151 | 92151-1305 | 2 | ||
BOLT,BATTERY | 92151A | 92151-1897 | 2 | ||
DAMPER | 92161 | 92161-0032 | 2 | ||
DAMPER | 92161A | 92161-7515 | 1 | ||
SCREW,6X18 | 92172 | 92172-0002 | 2 | ||
BOLT-FLANGED,6X10,BLACK | 130 | 130J0610 | 2 | ||
SCREW-CSK-CROS | 221 | 221C0616 | 2 |
