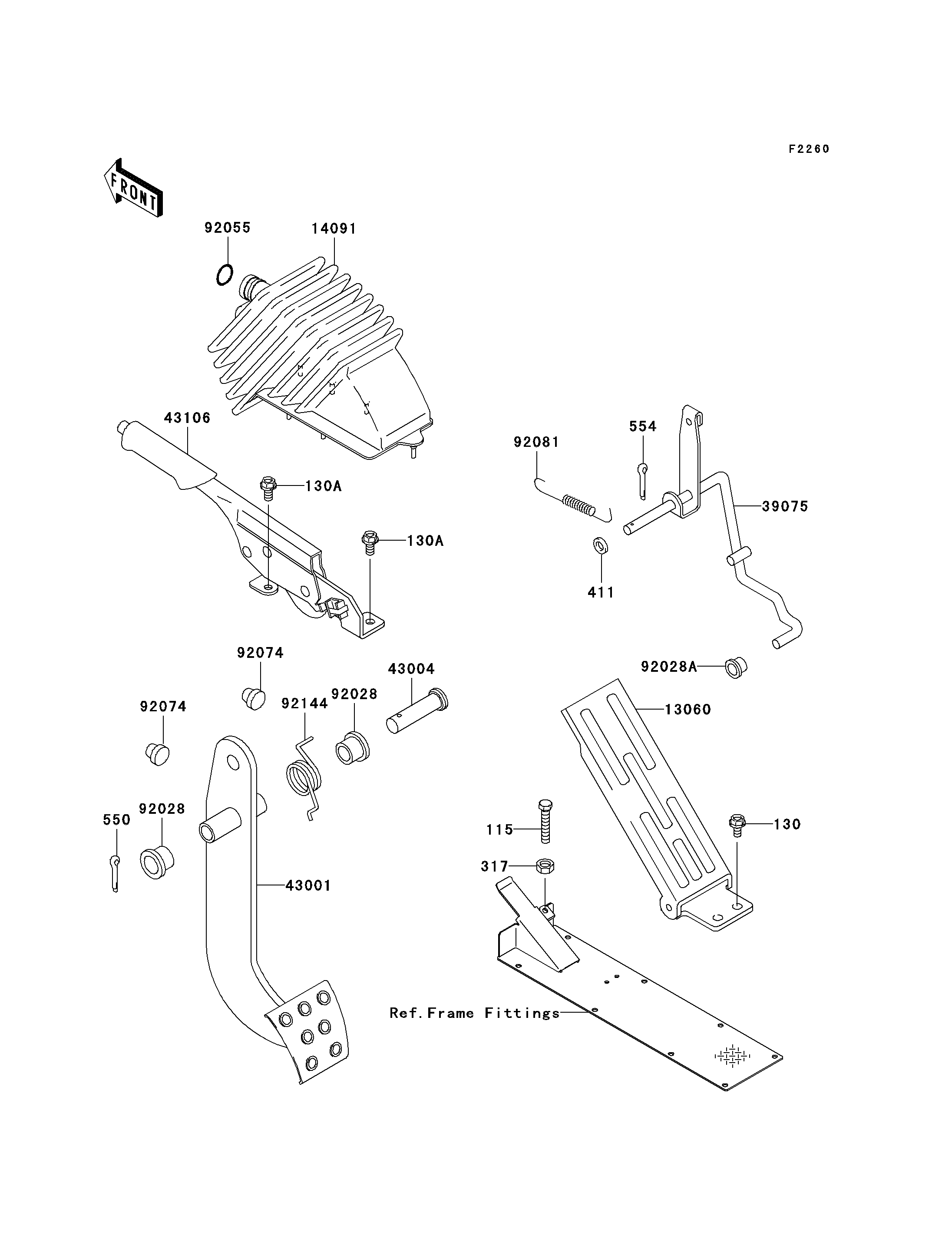

Mule 3010 Trans4x4 Hardwoods Green HD - Brake Pedal/Throttle Lever

DOWNLOAD PDF
SELECT A NEW PART
115
130
130A
130A
317
411
550
554
13060
14091
39075
43001
43004
43106
92028
92028
92028A
92055
92074
92074
92081
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X40 115 115D0840 1
BOLT-FLANGED,6X12 130 130C0612 2
BOLT-FLANGED 130A 130D0816 2
NUT-HEX-SMALL,8MM 317 317H0800 1
WASHER-PLAIN,10MM 411 411E1000 1
PIN-COTTER,2.5X25 550 550D2525 1
PIN-SNAP,10MM 554 554A1000 1
PEDAL,THROTTLE 13060 13060-1061 1
COVER,PARKING LEVER 14091 14091-0067 1
LEVER-THROTTLE 39075 39075-1057 1
LEVER-BRAKE,PEDAL 43001 43001-1320 1
SHAFT-BRAKE 43004 43004-1128 1
LEVER-ASSY-PARKING BRAKE 43106 43106-1005 1
BUSHING 92028 92028-1571 2
BUSHING,THROTTLE LEVER 92028A 92028-1601 1
RING-O,18X24X3 92055 92055-1633 1
PLUG,7X2 92074 92074-028 2
SPRING 92081 92081-1922 1
SPRING 92144 92144-1536 1
