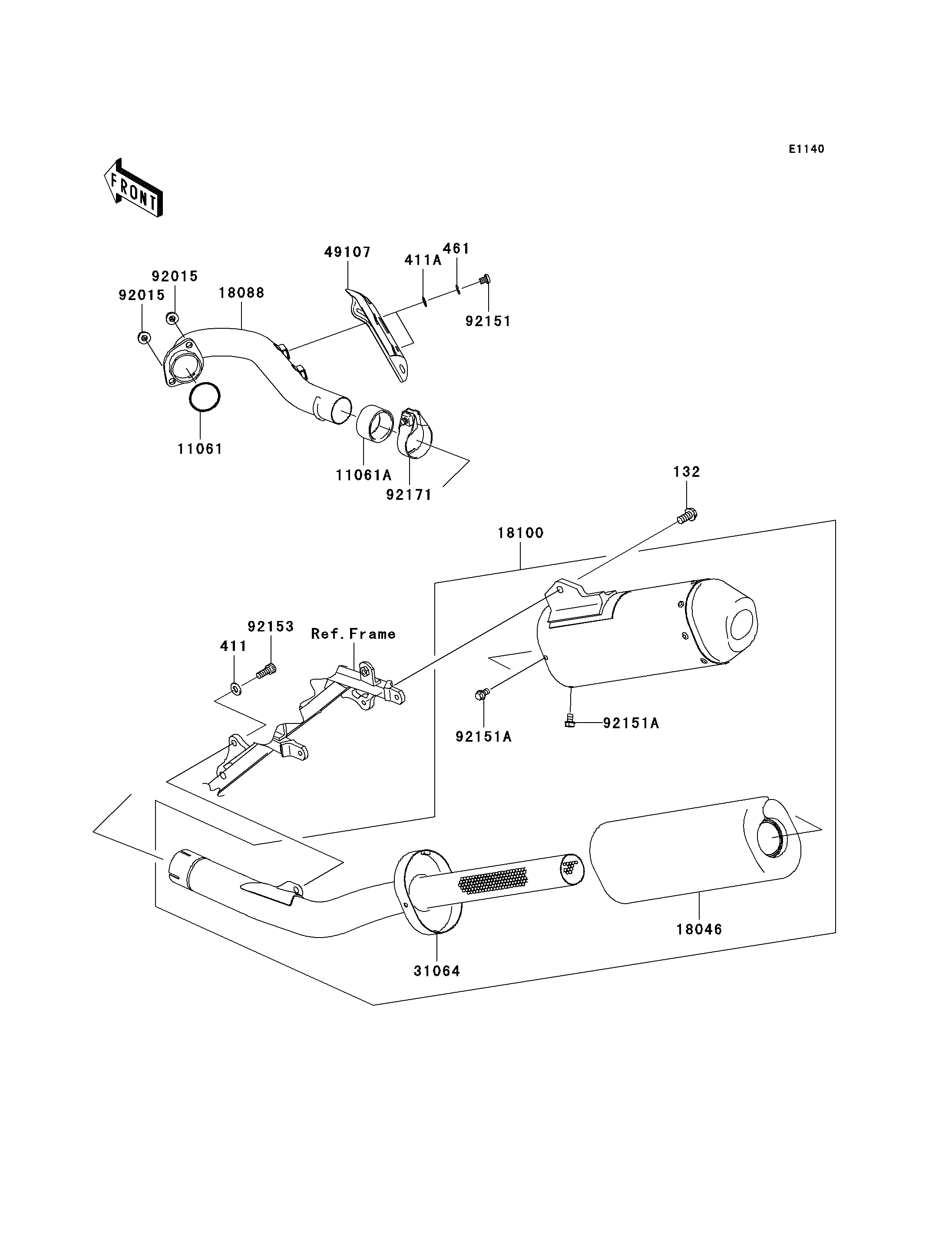

Parts Diagrams |
132
411
411A
461
11061
11061A
18046
18088
18100
31064
49107
92015
92015
92151
92151A
92151A
92153
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,8X18 | 132 | 132BB0818 | 1 | ||
| WASHER-PLAIN,8.5X18X1.6 | 411 | 411AB0800 | 1 | ||
| WASHER-PLAIN,6MM | 411A | 411S0600 | 2 | ||
| WASHER-SPRING,6MM | 461 | 461S0600 | 2 | ||
| GASKET | 11061 | 11061-0027 | 1 | ||
| GASKET | 11061A | 11061-0101 | 1 | ||
| WOOL | 18046 | 18046-0042 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-0258 | 1 | ||
| BODY-ASSY-MUFFLER | 18100 | 18100-0074 | 1 | ||
| PIPE-COMP | 31064 | 31064-0124 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-0126 | 1 | ||
| NUT,8MM | 92015 | 92015-1402 | 2 | ||
| BOLT,SOCKET,6X10 | 92151 | 92151-1449 | 2 | ||
| BOLT,FLANGED,6X10 | 92151A | 92151-1822 | 4 | ||
| BOLT,FLANGED-SMALL,8X18 | 92153 | 92153-1963 | 1 | ||
| CLAMP | 92171 | 92171-0491 | 1 |
