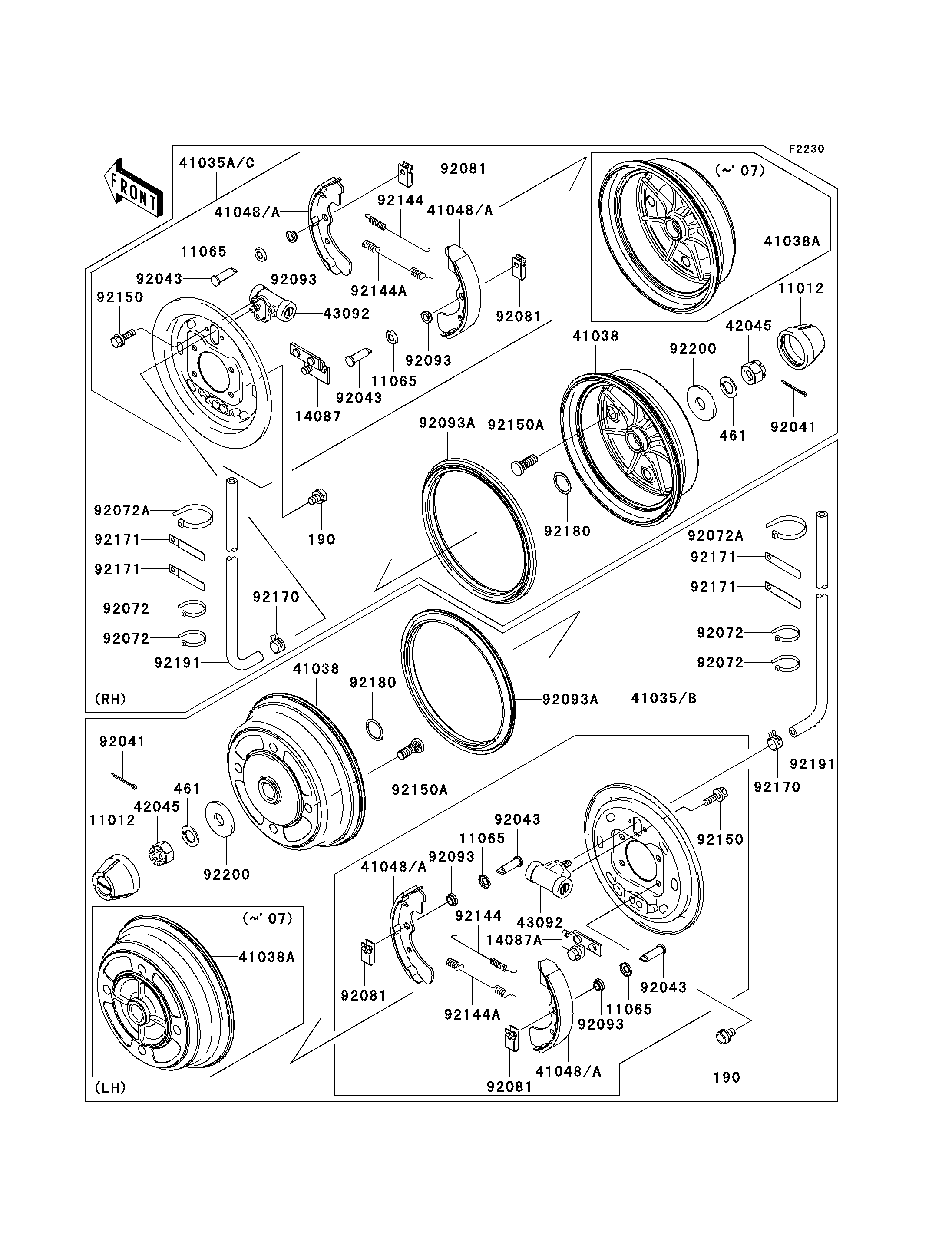

2008 Mule 3010 4x4 Hardwoods Green HD - Front Hubs/Brakes
190
190
461
461
11012
11012
11065
11065
11065
11065
14087
14087A
41035B
41035C
41038
41038
41048A
41048A
41048A
41048A
42045
42045
43092
43092
92041
92041
92043
92043
92043
92043
92072
92072
92072
92072
92072A
92072A
92081
92081
92081
92081
92093
92093
92093
92093
92093A
92093A
92144
92144
92144A
92144A
92150
92150
92150A
92150A
92170
92170
92171
92171
92171
92171
92180
92180
92191
92191
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET-WS,10X16 | 190 | 190BA1016 | 8 | ||
WASHER-SPRING,18MM | 461 | 461F1800 | 2 | ||
CAP,WHEEL | 11012 | 11012-1969 | 2 | ||
CAP | 11065 | 11065-1175 | 4 | ||
RETAINER-ASSY,RH | 14087 | 14087-1001 | 1 | ||
RETAINER-ASSY,LH | 14087A | 14087-1002 | 1 | ||
PANEL-ASSY-BRAKE,FR,LH | 41035B | 41035-7502 | 1 | ||
PANEL-ASSY-BRAKE,FR,RH | 41035C | 41035-7504 | 1 | ||
DRUM,FRONT BRAKE | 41038 | 41038-0034 | 2 | ||
SHOE-BRAKE | 41048A | 41048-7501 | 4 | ||
NUT,CASTLE,18MM | 42045 | 42045-018 | 2 | ||
CYLINDER,FRONT BRAKE PANEL | 43092 | 43092-1054 | 2 | ||
COTTER,4.0X35 | 92041 | 92041-1053 | 2 | ||
PIN | 92043 | 92043-1636 | 4 | ||
BAND,L=123 | 92072 | 92072-030 | 4 | ||
BAND,L=149 | 92072A | 92072-031 | 2 | ||
SPRING,SHOE CLAMP | 92081 | 92081-1904 | 4 | ||
SEAL | 92093 | 92093-1532 | 4 | ||
SEAL,BS184.8X13.5ZS | 92093A | 92093-1543 | 2 | ||
SPRING,BRAKE | 92144 | 92144-1300 | 2 | ||
SPRING,BRAKE | 92144A | 92144-1301 | 2 | ||
BOLT,FLANGED,6X12 | 92150 | 92150-1166 | 4 | ||
BOLT | 92150A | 92150-1366 | 8 | ||
CLAMP | 92170 | 92170-2042 | 2 | ||
CLAMP | 92171 | 92171-0652 | 4 | ||
SHIM,25.2X32.5X0.6 | 92180 | 92180-1353 | 2 | ||
TUBE,4.7X9.5X1480 | 92191 | 92191-1615 | 2 | ||
WASHER,18.5X52X4.5 | 92200 | 92200-1474 | 2 |
BOLT-UPSET-WS,10X16 | |
REF # | 190 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER-SPRING,18MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,WHEEL | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RETAINER-ASSY,RH | |
REF # | 14087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RETAINER-ASSY,LH | |
REF # | 14087A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PANEL-ASSY-BRAKE,FR,LH | |
REF # | 41035B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PANEL-ASSY-BRAKE,FR,RH | |
REF # | 41035C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DRUM,FRONT BRAKE | |
REF # | 41038 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHOE-BRAKE | |
REF # | 41048A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CASTLE,18MM | |
REF # | 42045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CYLINDER,FRONT BRAKE PANEL | |
REF # | 43092 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COTTER,4.0X35 | |
REF # | 92041 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BAND,L=123 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BAND,L=149 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,SHOE CLAMP | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAL,BS184.8X13.5ZS | |
REF # | 92093A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,BRAKE | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,BRAKE | |
REF # | 92144A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHIM,25.2X32.5X0.6 | |
REF # | 92180 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,4.7X9.5X1480 | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,18.5X52X4.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
